Removal and Installation

  1. Remove the trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .

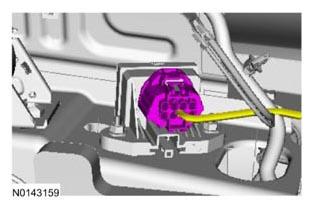

  2. G08617274
    • To install, tighten to 6 Nm (53 lb-in).

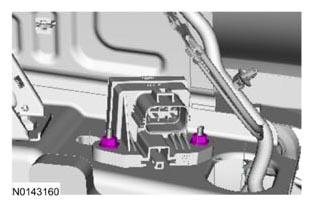

      G08617275

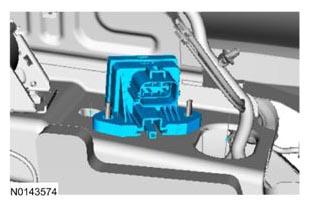

  4. G08617276
  5. To install, reverse the removal procedure.
