Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

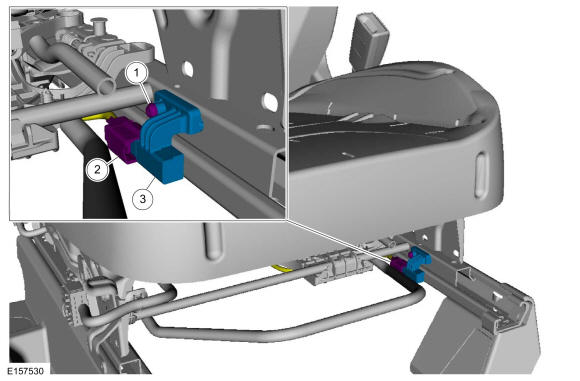

NOTE: RH seat shown, LH seat similar.
1. 1.

  Remove the screw.
  Torque: 8 lb.in (0.9 Nm)
1. 2.

  Disconnect the electrical connector.
1. 3.

  Remove the seat position sensor.

Courtesy of FORD MOTOR COMPANY
