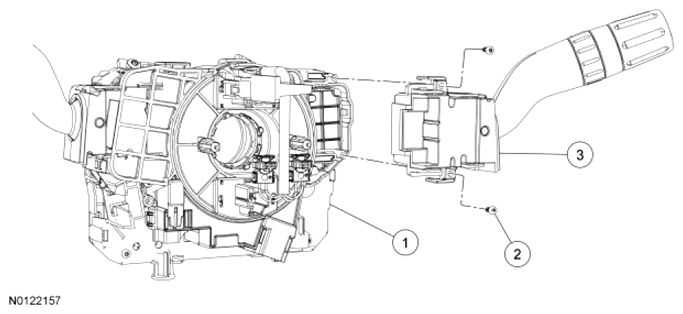

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |
| 1 |
3F791 |
SCCM |
- |
- |
- |
| 2 |
- |
Wiper/washer switch screw (part of 17A533) (2 required) |
- |
- |
- |
| 3 |
17A553 |
Wiper/washer switch |
- |
- |
- |
