Exploded View

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

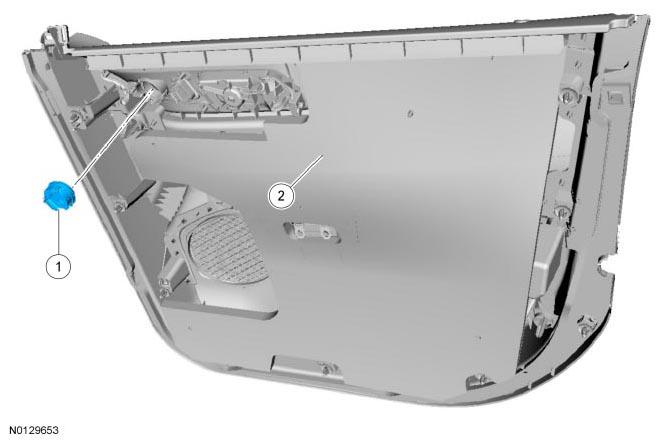

G07428745
Item Service Part Number Description
1 18808 Tweeter speaker
2 23942 Trim panel
