Hydraulic Control Unit (HCU): Removal
WARNING:
Before beginning any service procedure in this information, refer to SAFETY WARNINGS in
SERVICE INFORMATION
. Failure to follow this instruction may result in serious personal injury.
NOTE:
Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE:
The Hydraulic Control Unit (HCU) and Anti-Lock Brake System (ABS) module are serviced as an assembly.
NOTE:
Steps in the removal procedure may contain installation details.
-
NOTE: This step is necessary only if a new Anti-Lock Brake System (ABS) module is being installed.
Connect the scan tool and upload the module configuration from the Anti-Lock Brake System (ABS) module. For additional information, refer to MODULE CONFIGURATION .
- Remove the battery and battery tray. Refer to BATTERY, MOUNTING AND CABLES .

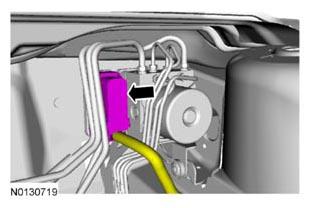

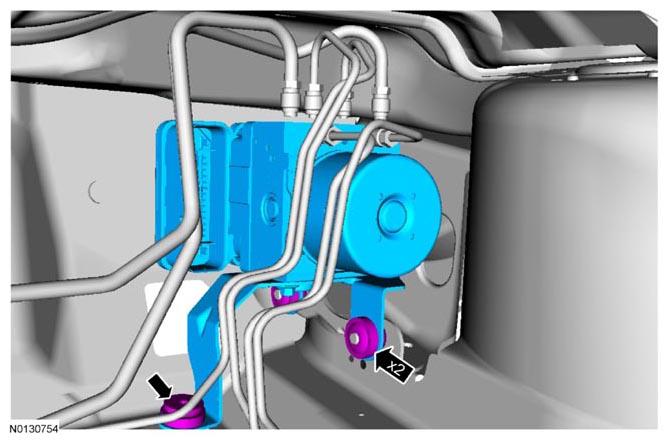

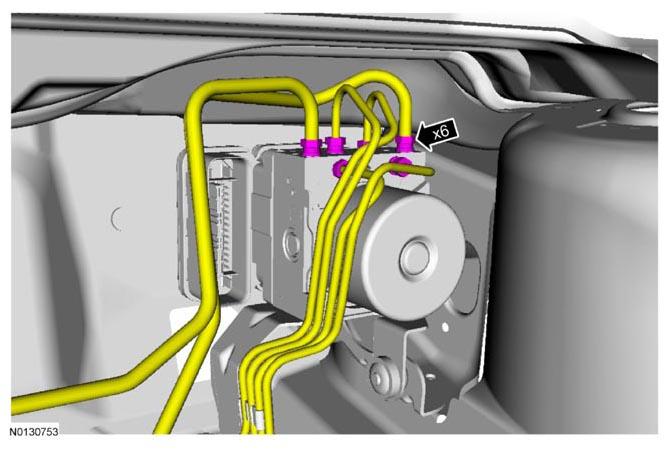

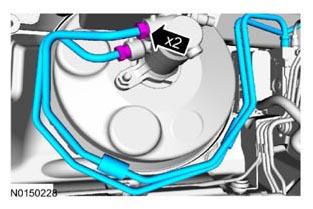

- To install, tighten to 25 Nm (18 lb-ft).
