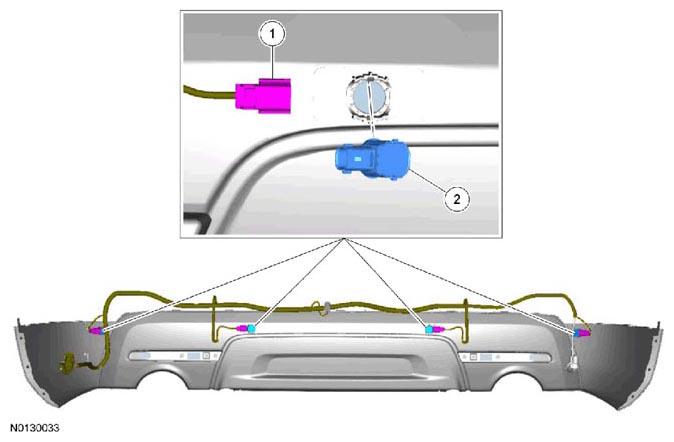

Exploded View

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
G07430971
Item Part Number Description
1 15K868 Rear parking aid sensor electrical connector
2 15K859 Rear parking aid sensor
