Passenger Compartment Fuse Panel



The Passenger Compartment Fuse Panel is located behind a trim panel on the left side of the driver's footwell near the parking brake.

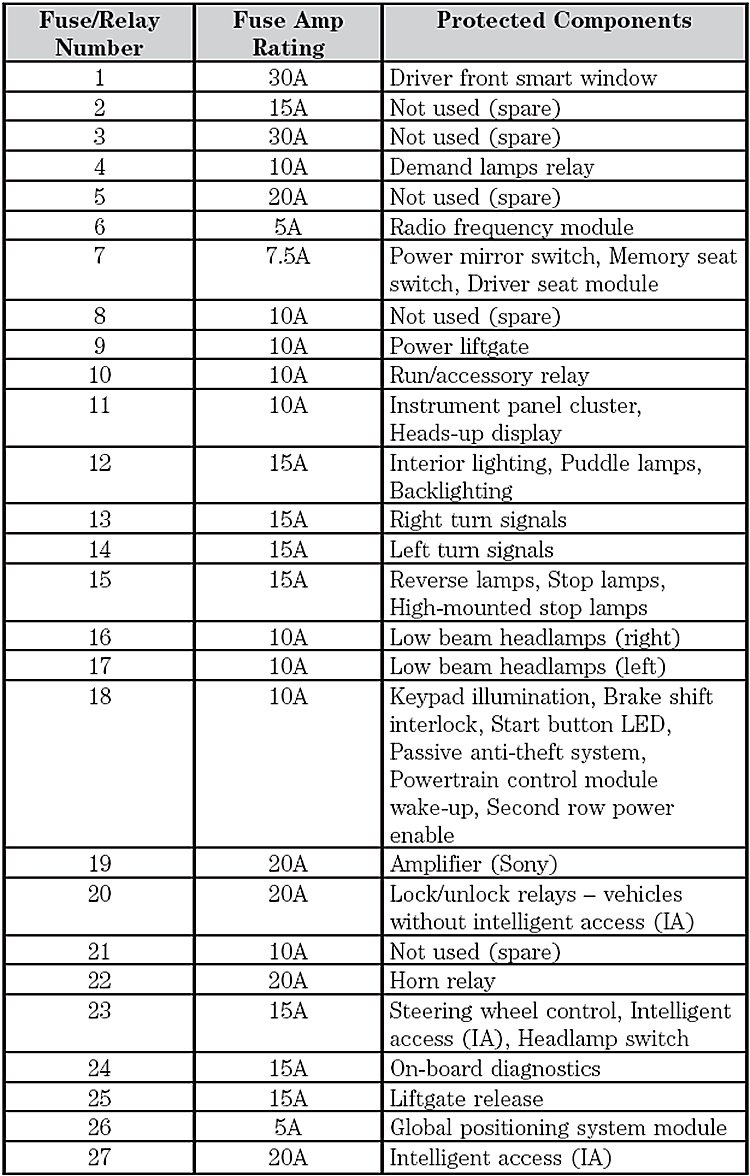

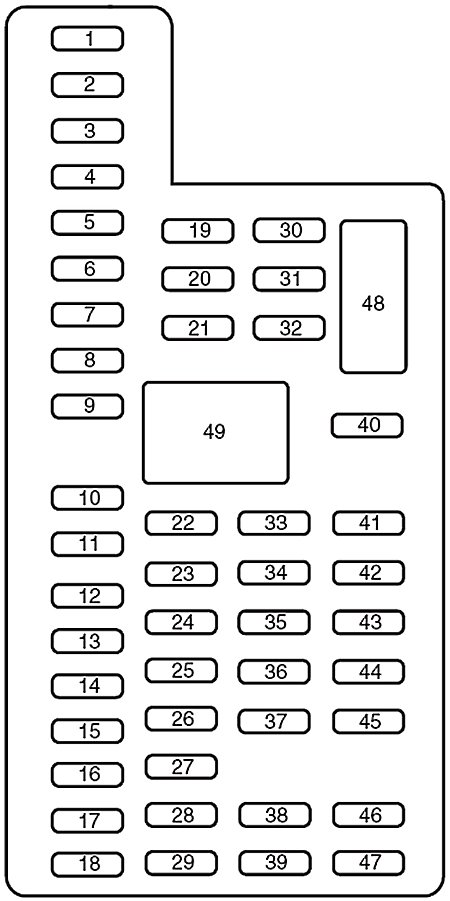

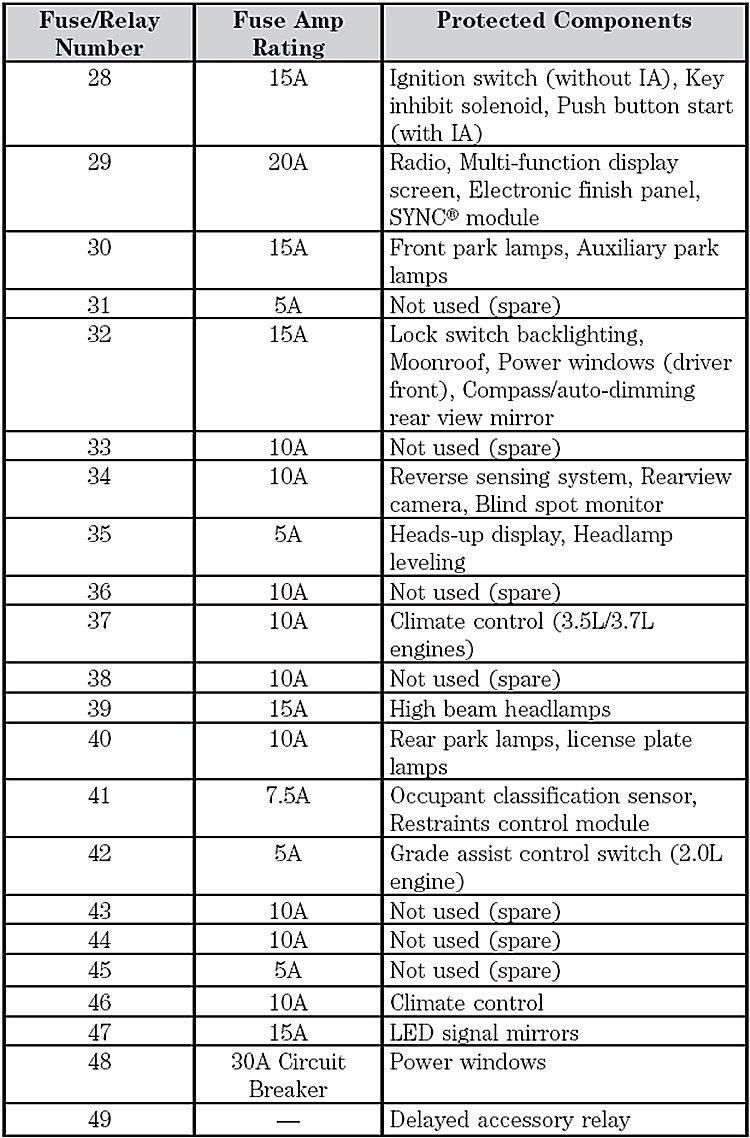

Passenger Compartment Fuse Panel:
