SUNLOAD Sensor Connector End View (C286)

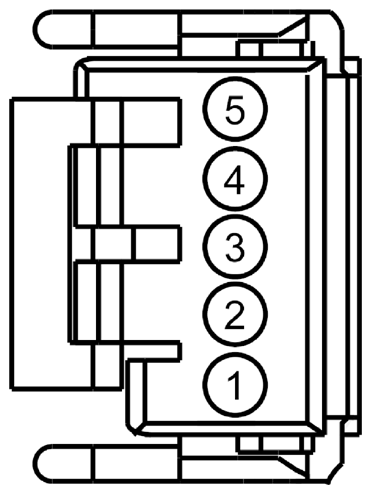

Fig 1: Identifying Sunload Sensor Connector (C286)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
VH416 (VT-GY)
22
SENSOR - SUN LOAD # LEFT
2
VH417 (YE-OG)
22
SENSOR - SUN LOAD # RIGHT
3
RH104 (BU-BN)
22
CTRL MOD. - CLIMATE # SENSOR RETURN
4
VH414 (GN-BU)
22
SENSOR - INCAR TEMP.
5
RH107 (BK-WH)
22
CTRL MOD. - AMBIENT TEMP. SENSOR
