Battery Charger Control Module (BCCM) Connector End View (C4455B)

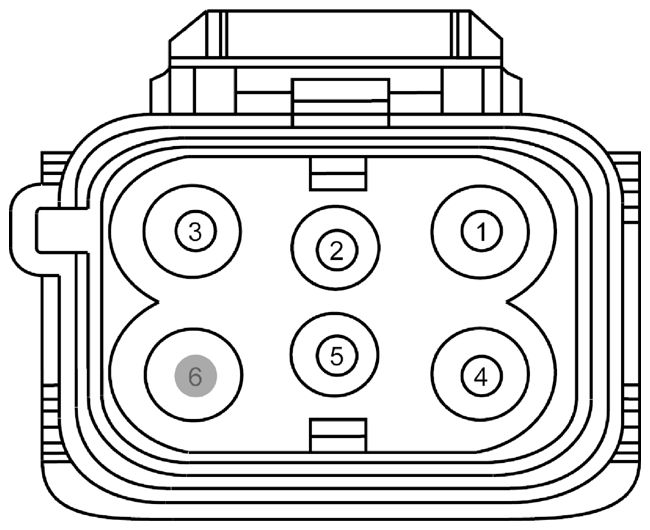

Fig 1: Identifying Battery Charger Control Module (BCCM) Connector (C4455B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RYB57 (GN-YE)	10	GROUND	PHEV
2	CYB56 (WH-VT)	20	CHARGE PORT SENSE	PHEV
3	HYB53 (OG)	10	HIGH VOLTAGE (+)	PHEV
4	HYB54 (OG)	10	HIGH VOLTAGE (-)	PHEV
5	CYB55 (YE-GY)	20	CHARGE PORT SENSE	PHEV
6	*	*	Not Used
