Accelerator Pedal: Service and Repair




Accelerator Pedal

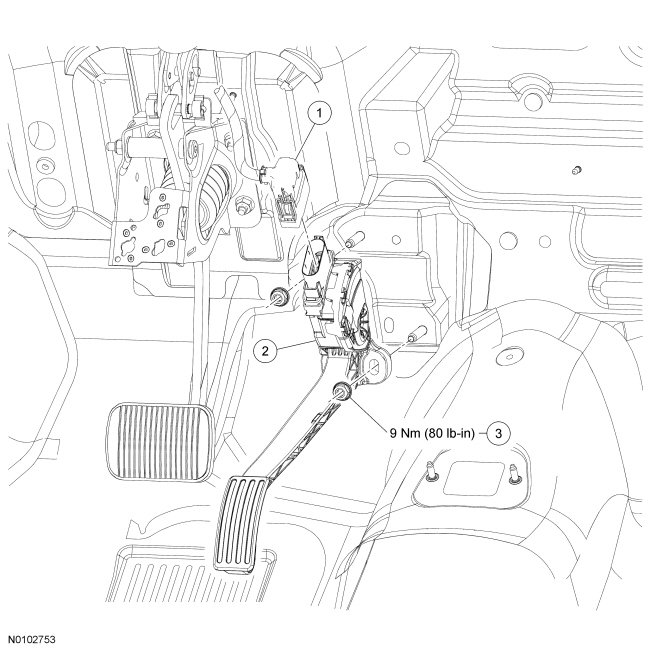

Removal and Installation

1. Disconnect the accelerator pedal sensor electrical connector.

2. Remove the 2 nuts and the accelerator pedal and sensor assembly.
- To install, tighten to 9 Nm (80 lb-in).


3. To install, reverse the removal procedure.
