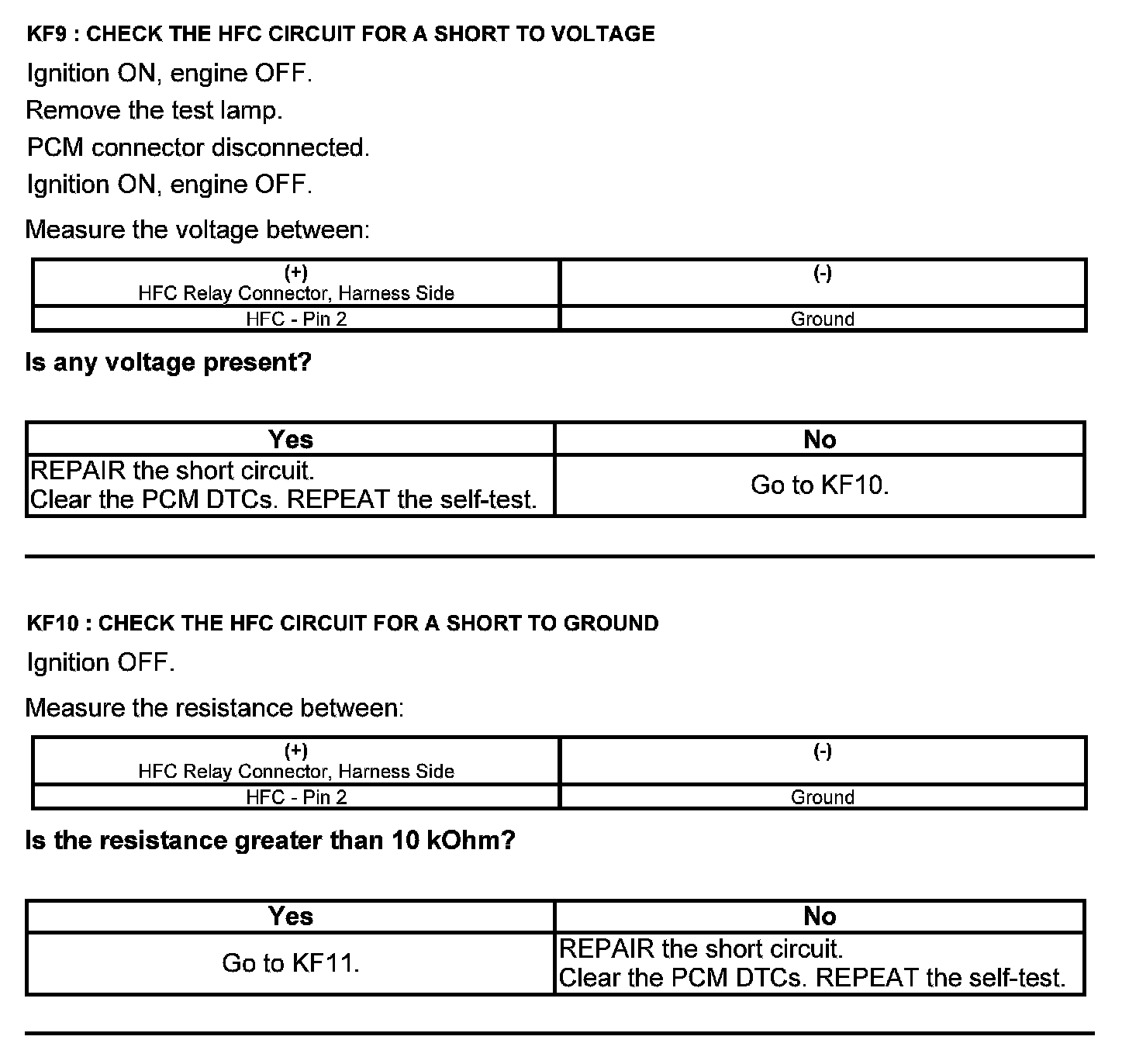

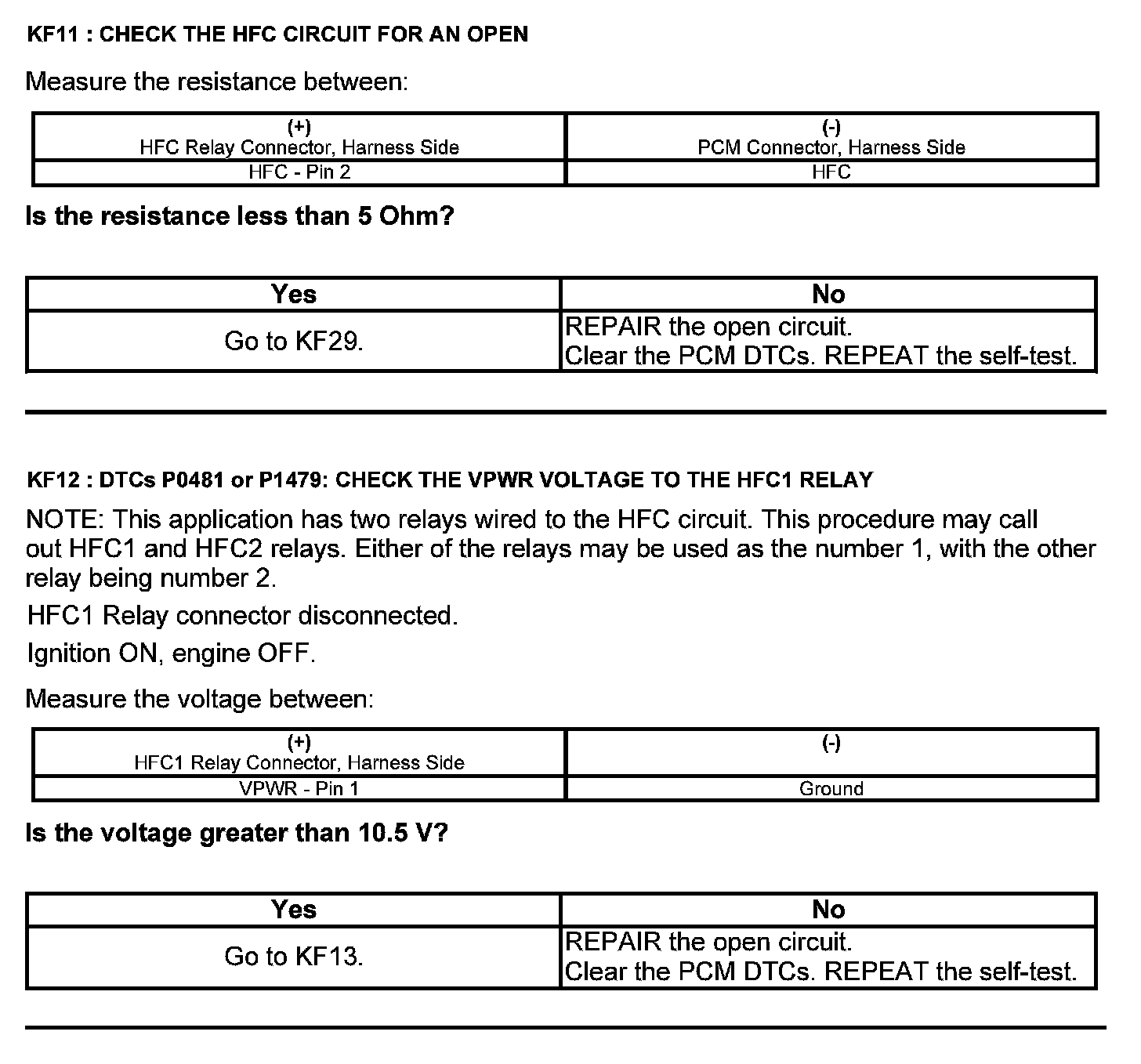

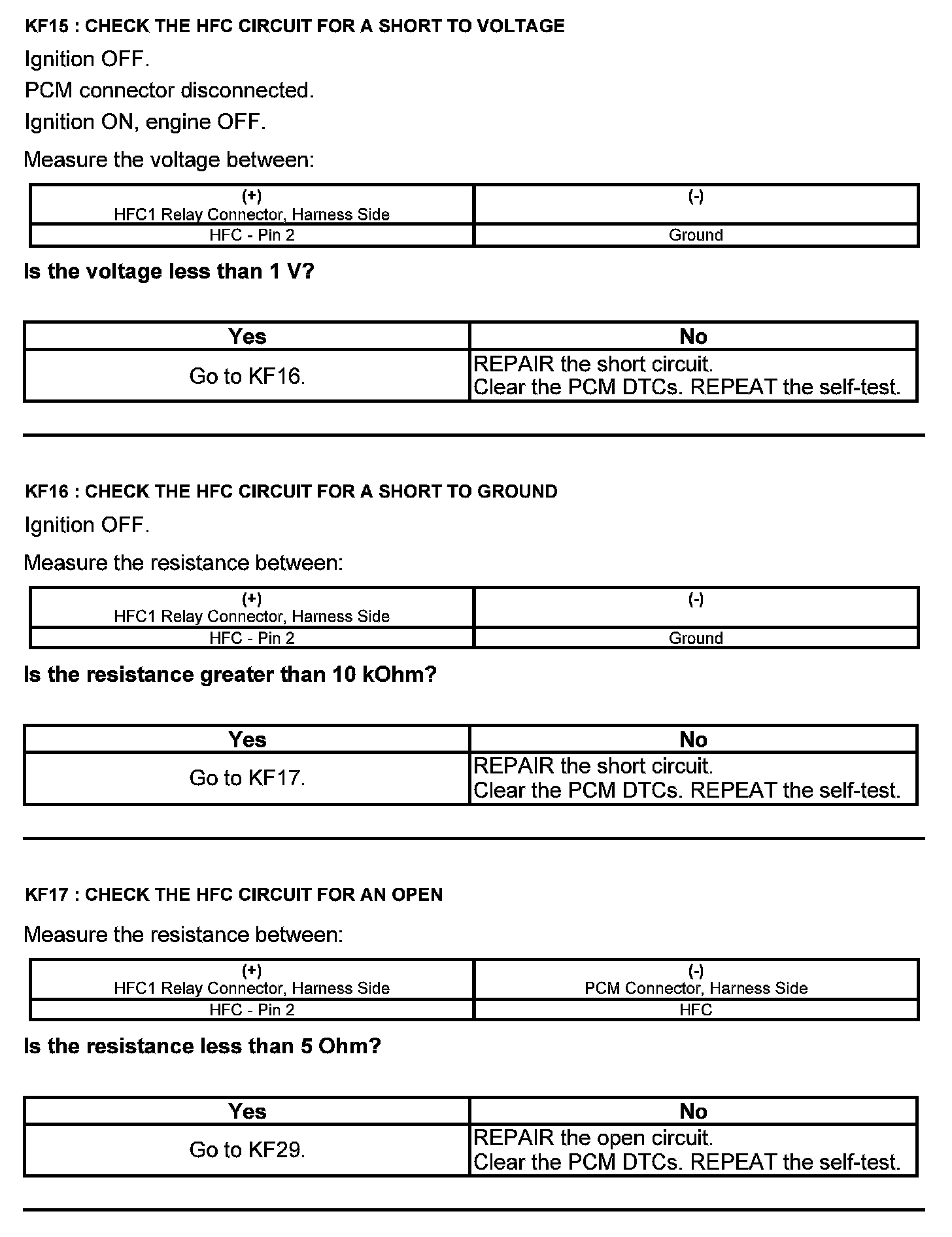

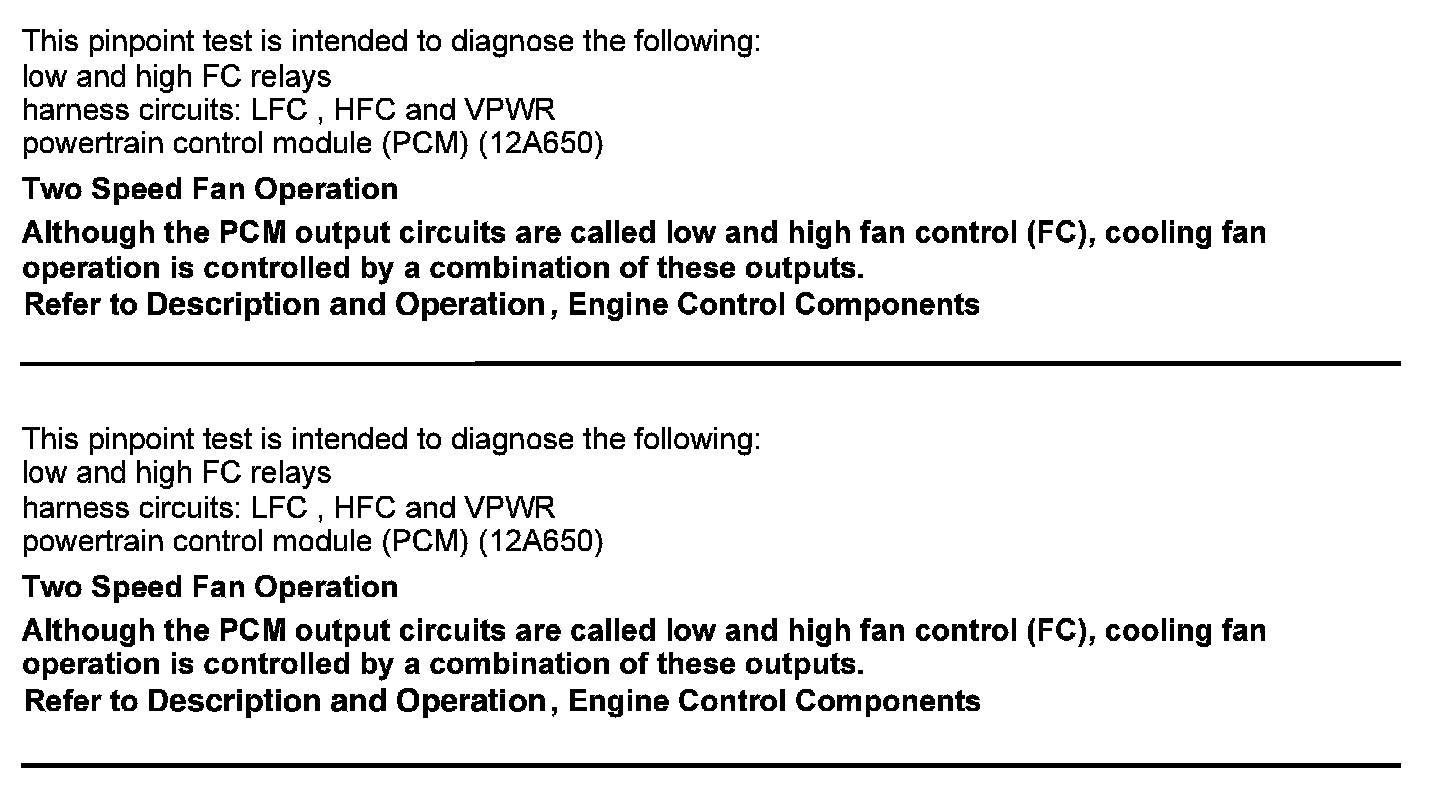

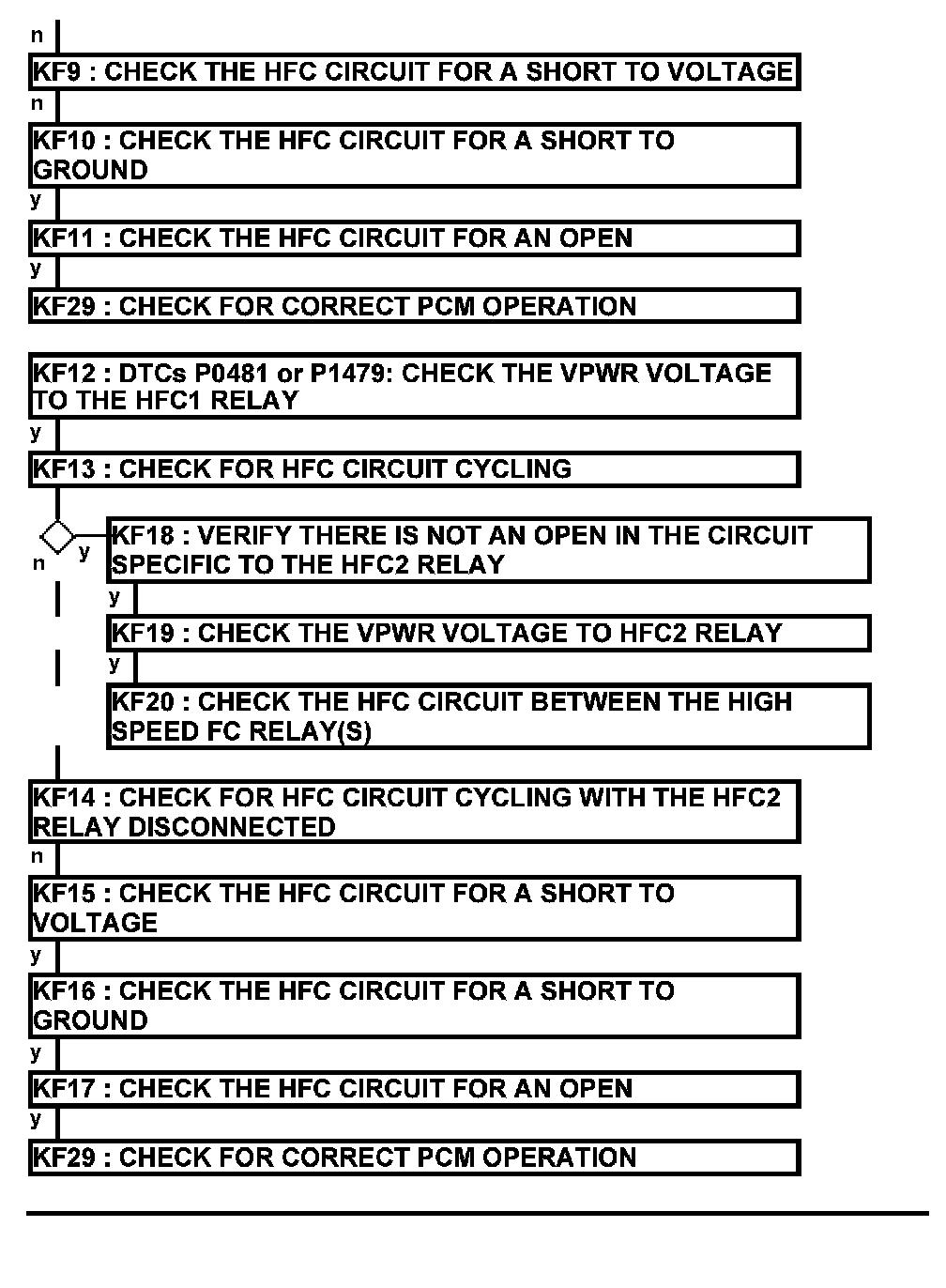

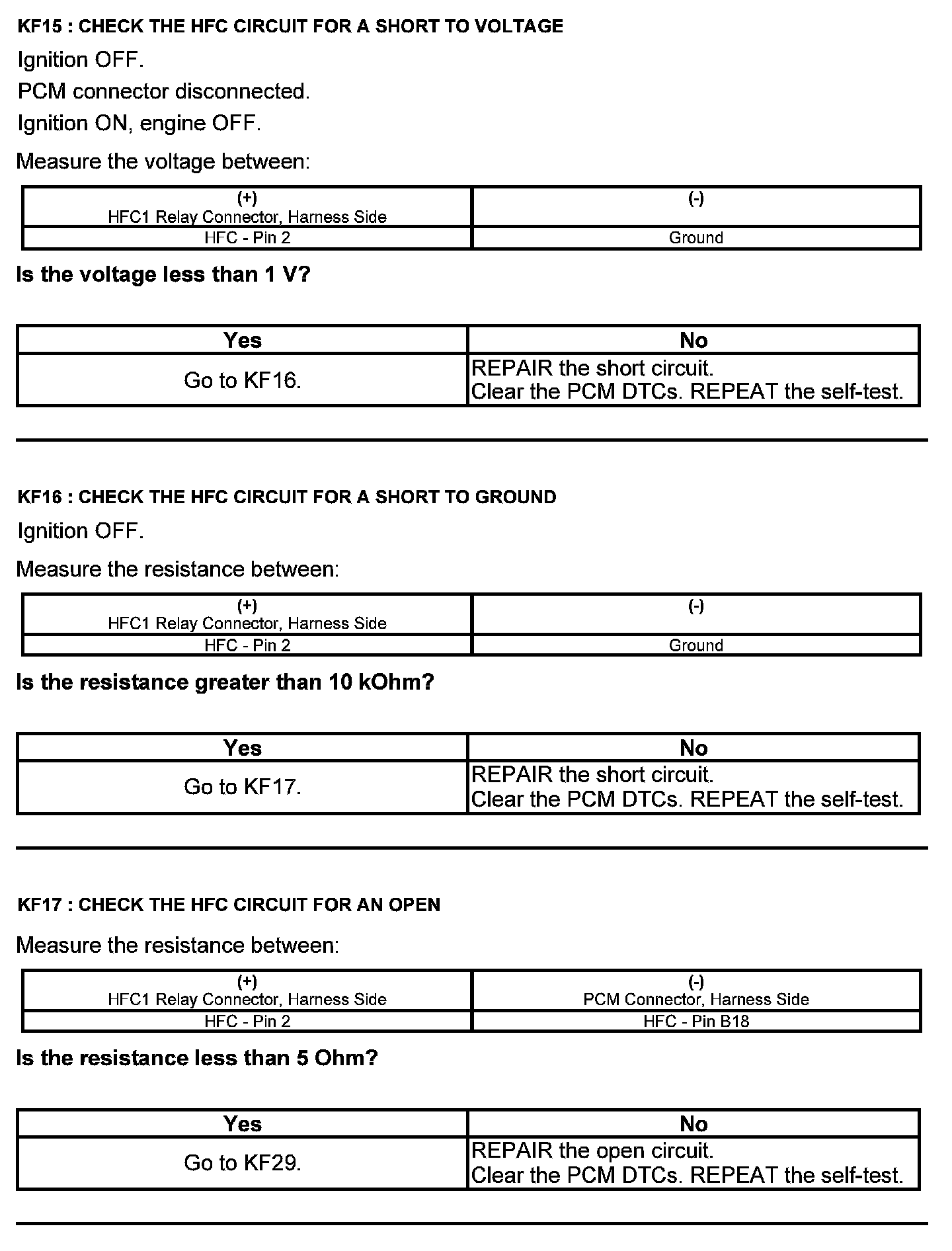

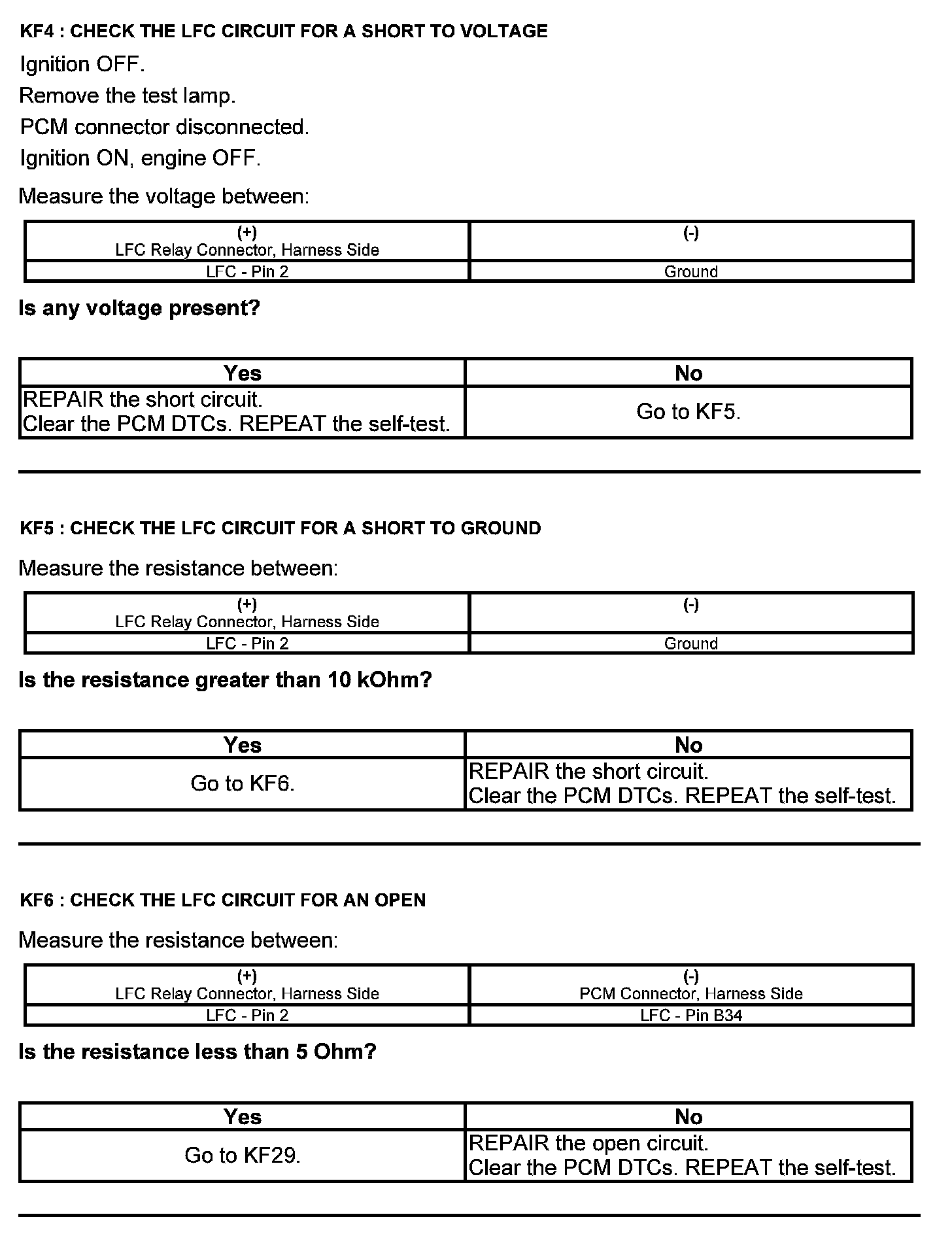

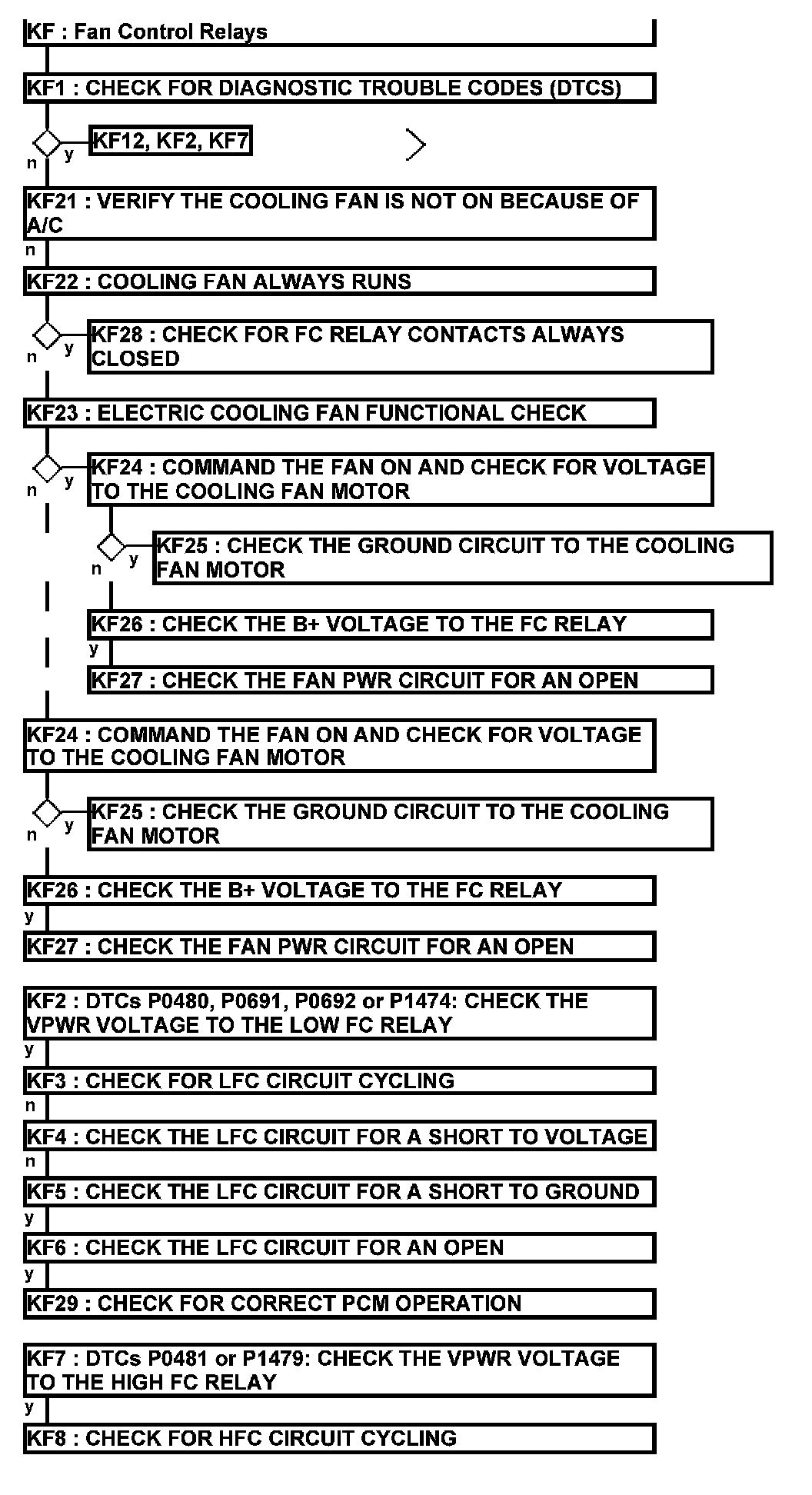

Test KF: Fan Control Relays

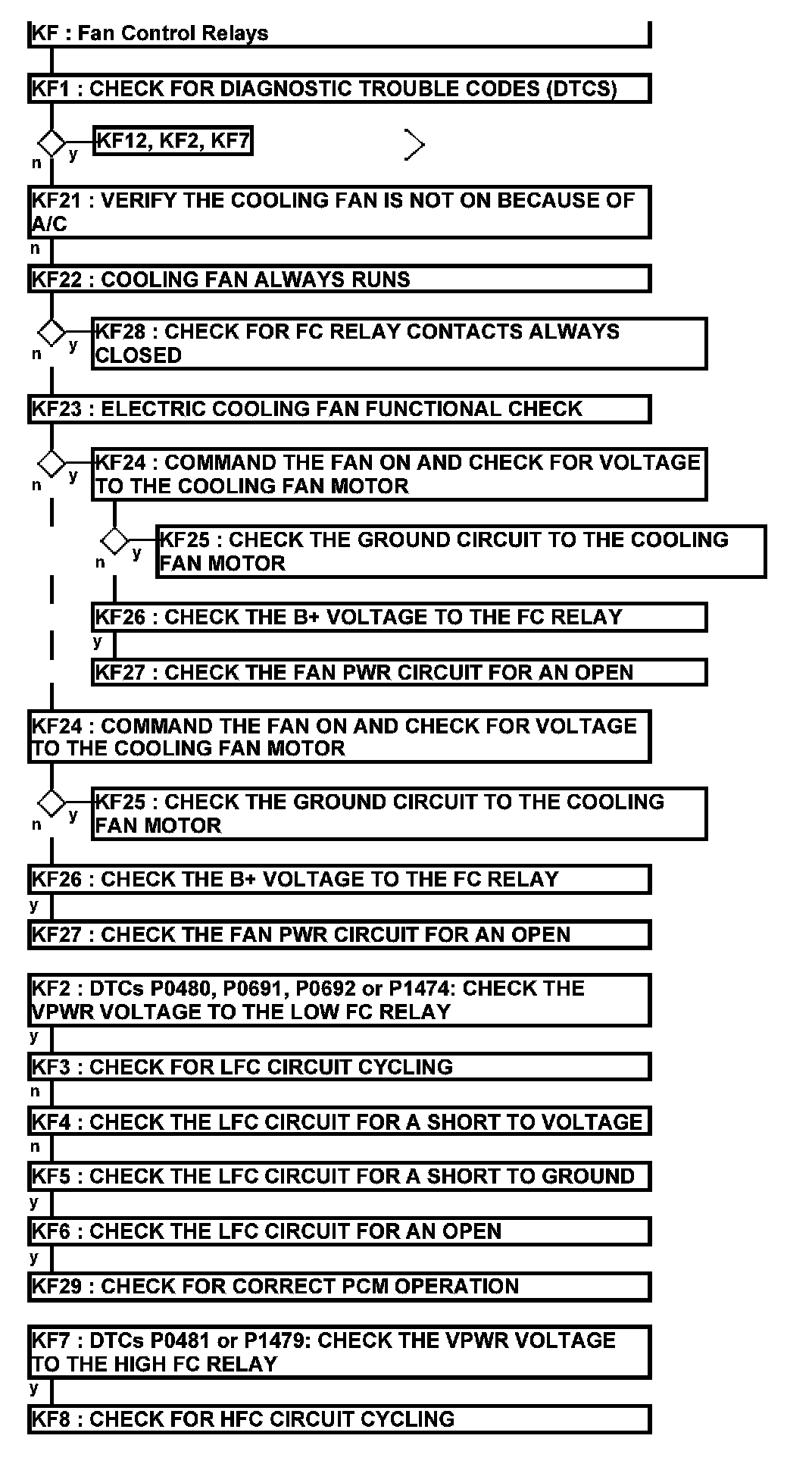

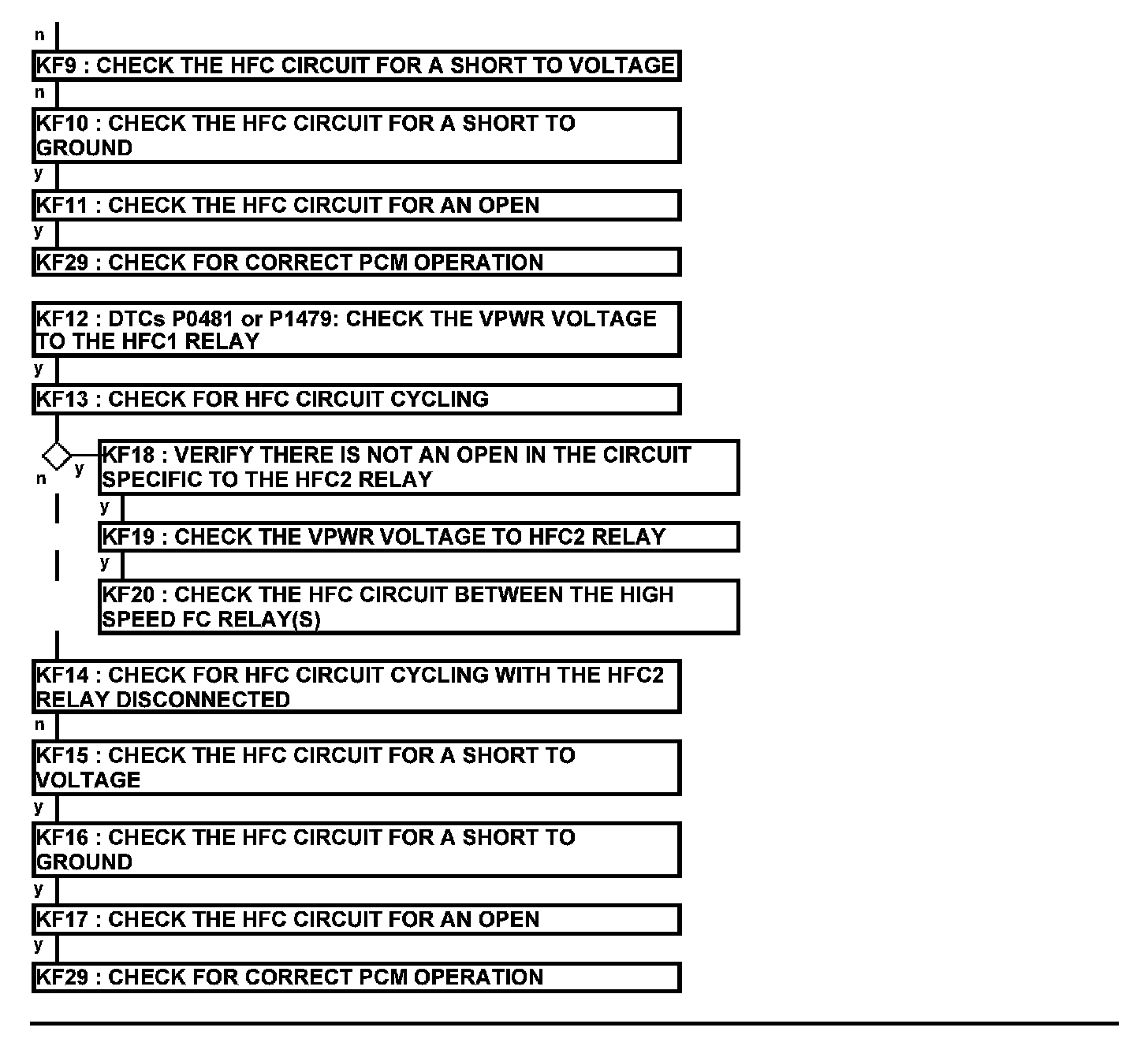

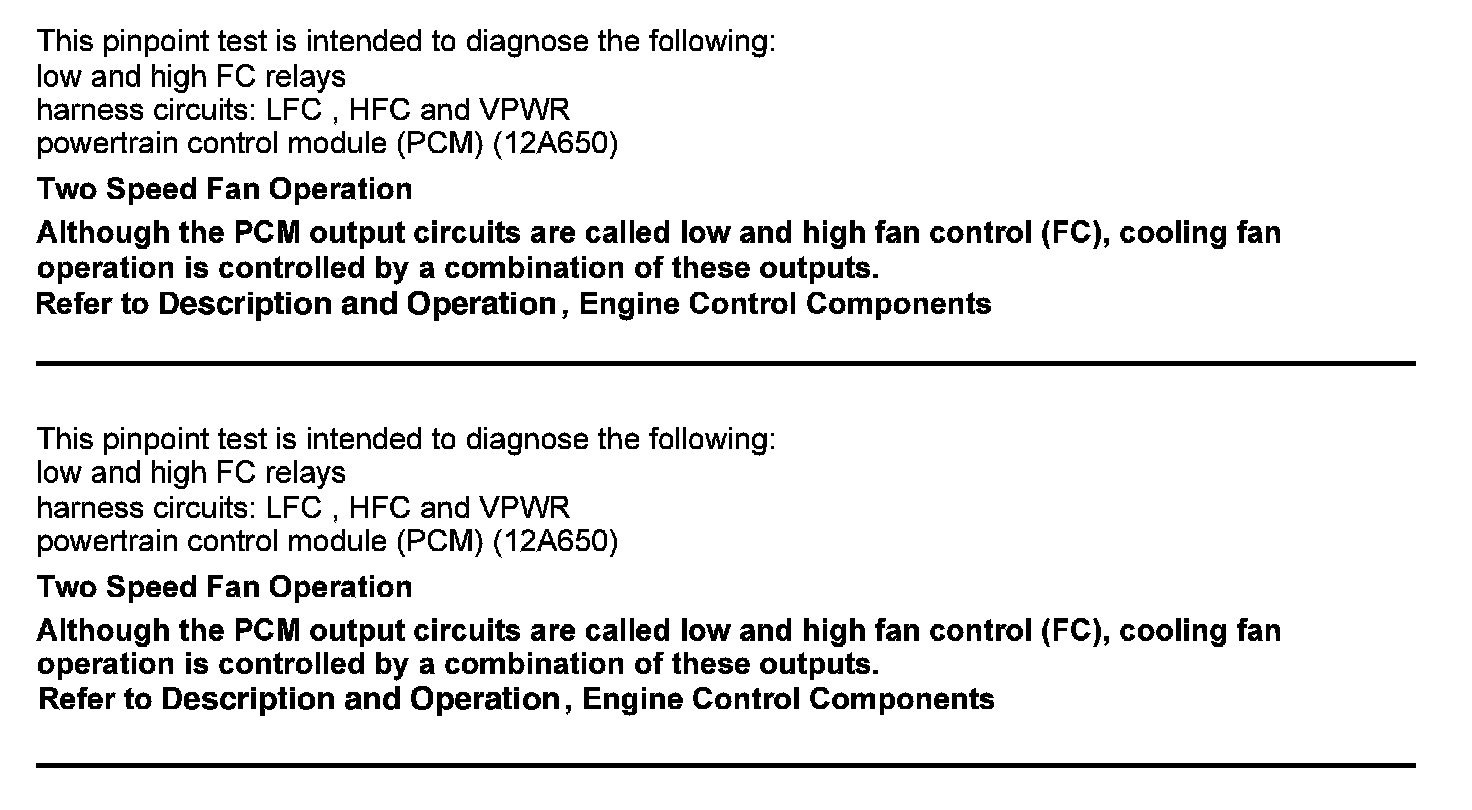

Fan Control Relays

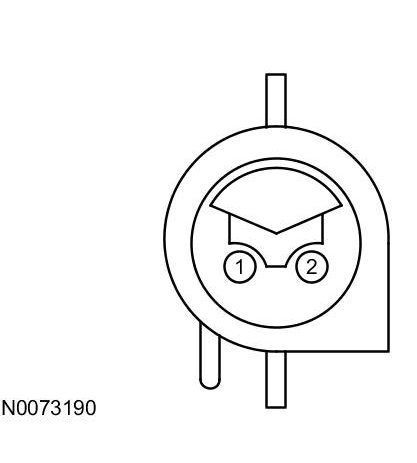

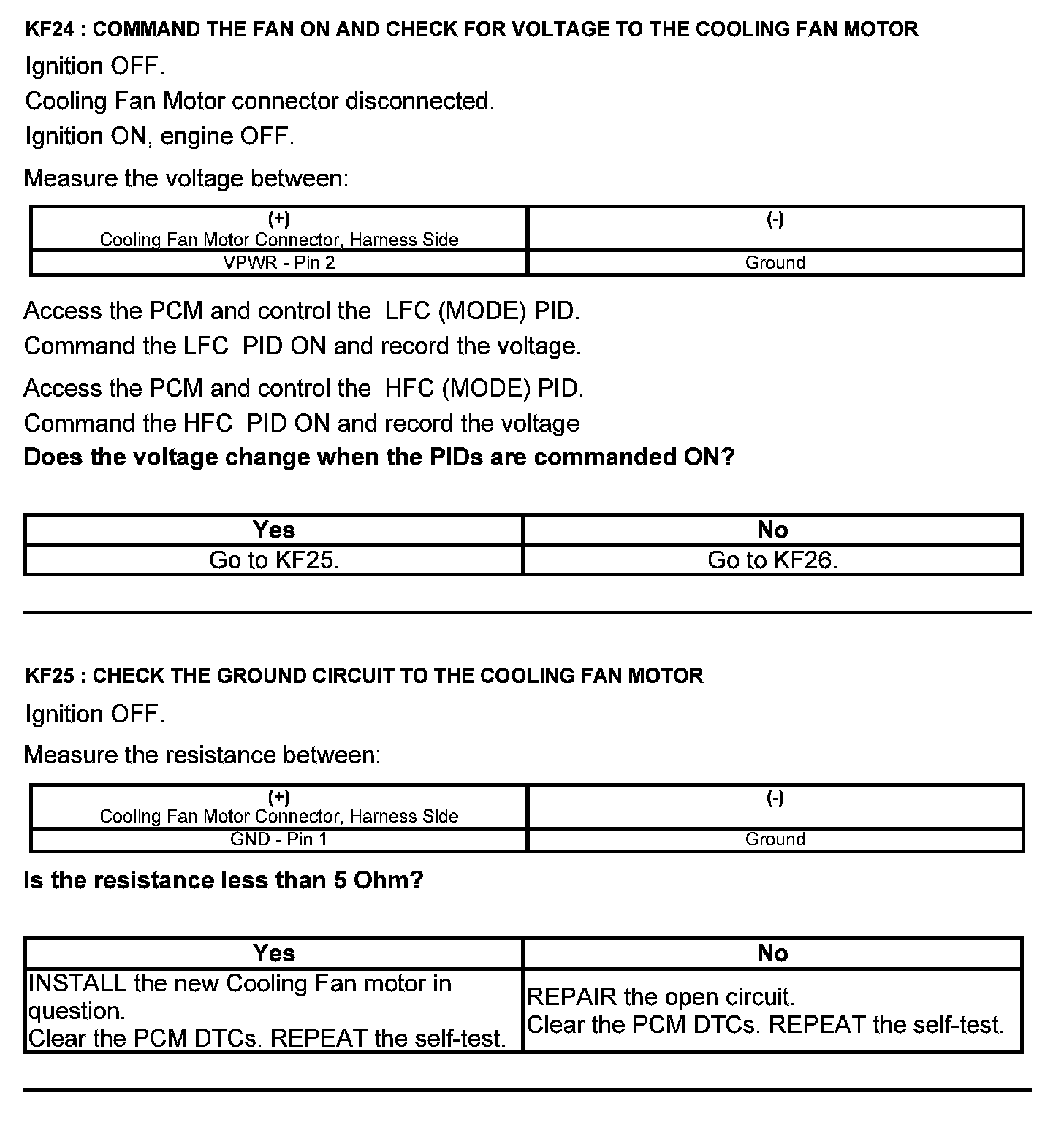

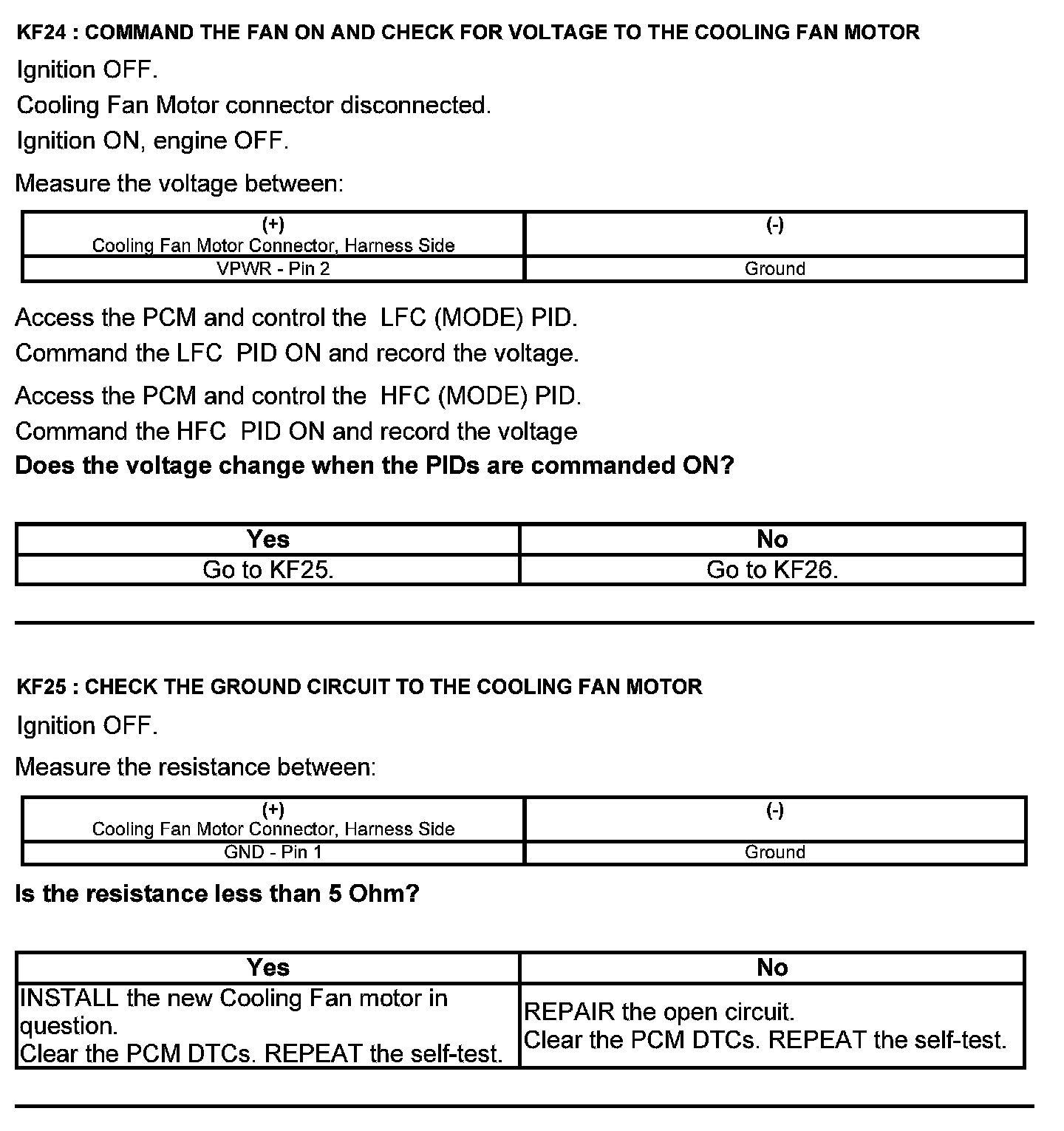

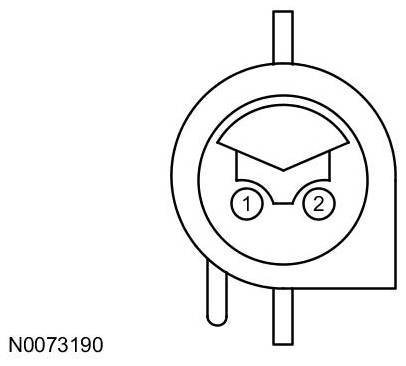

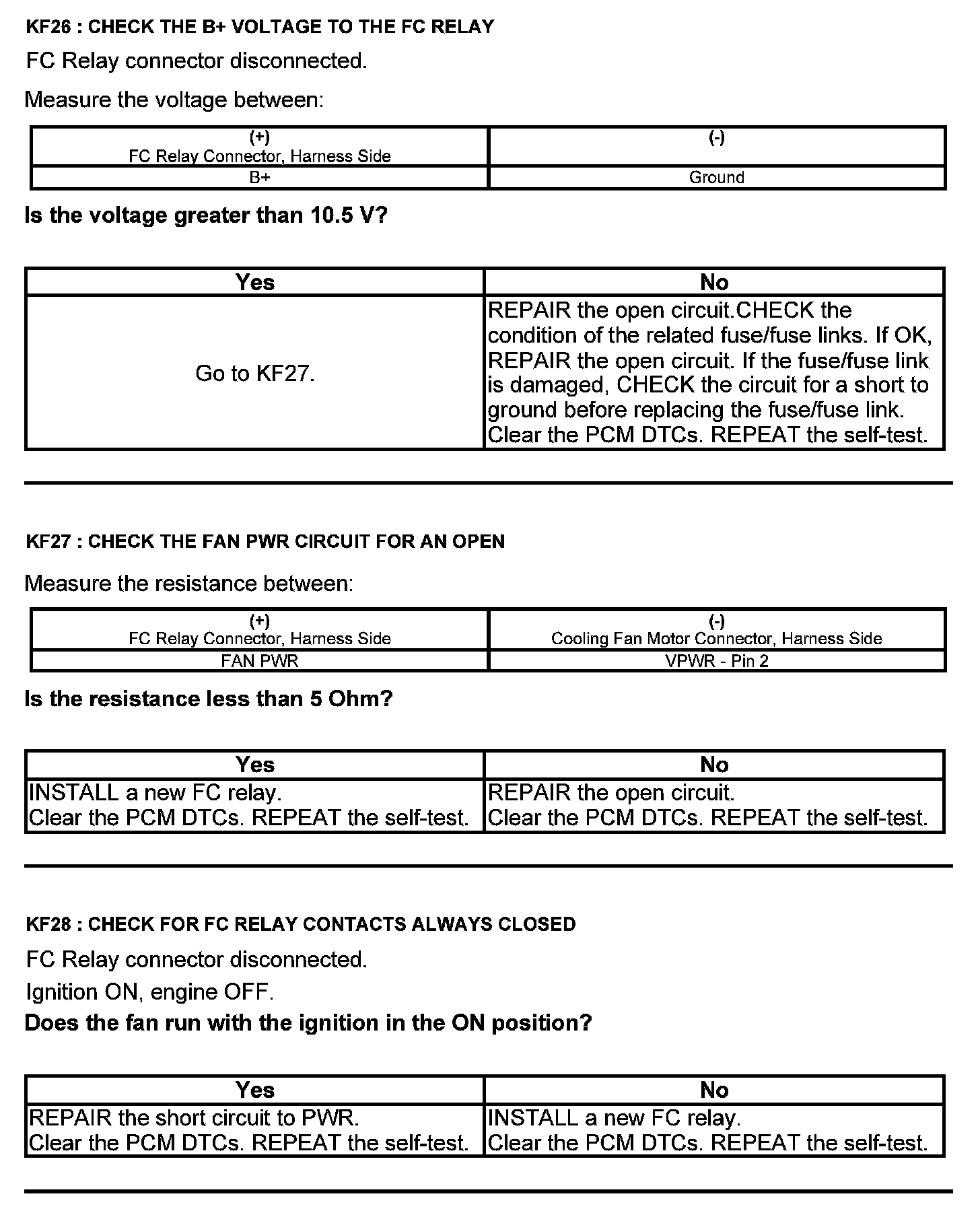

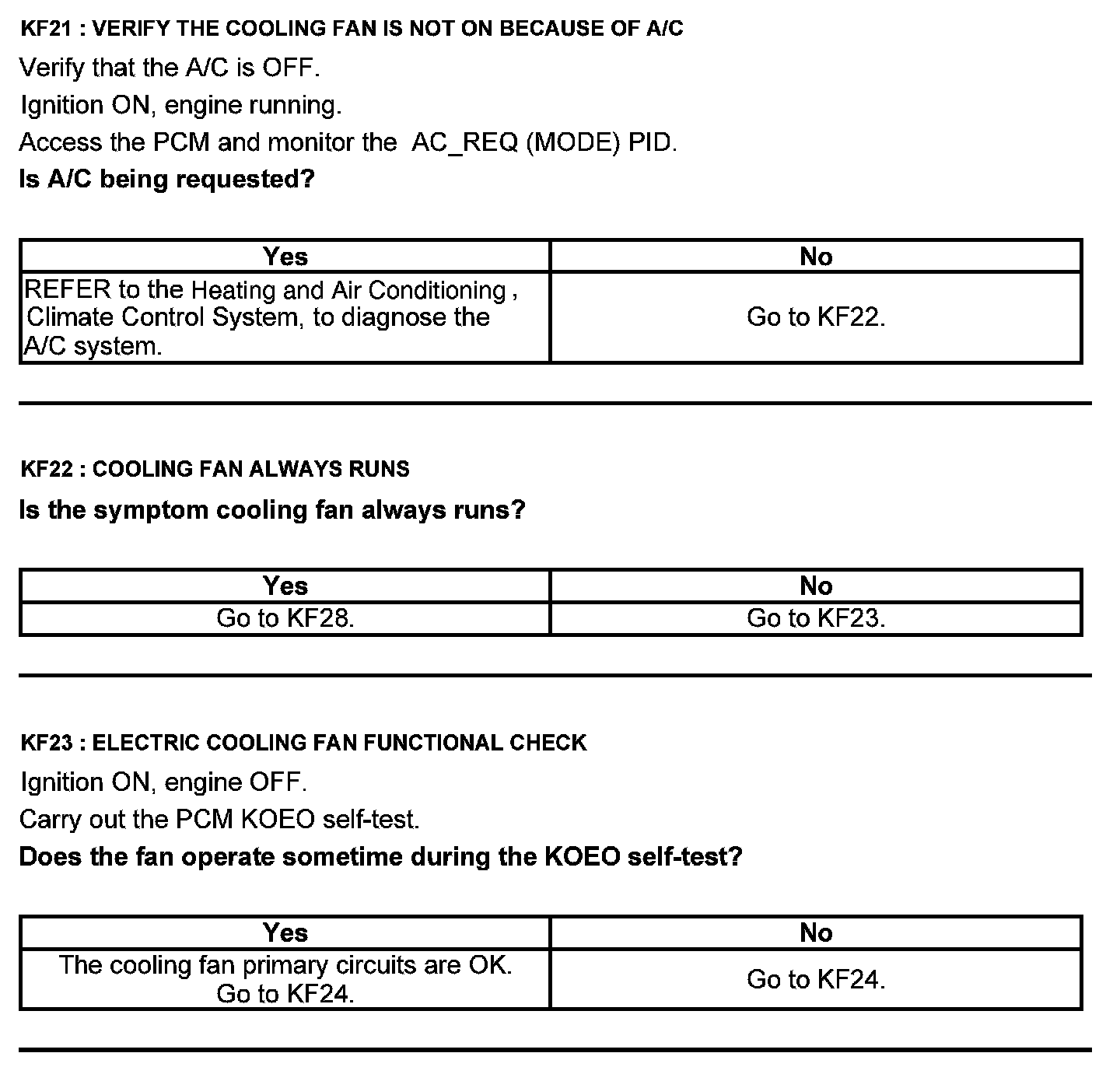

Cooling Fan Motor Connector

Harness Side

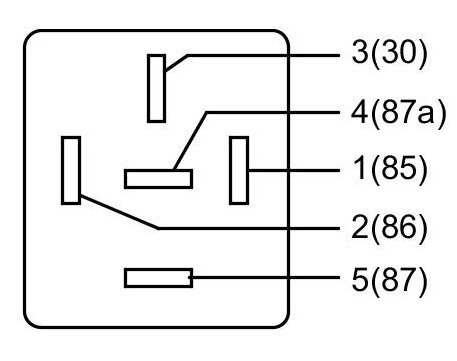

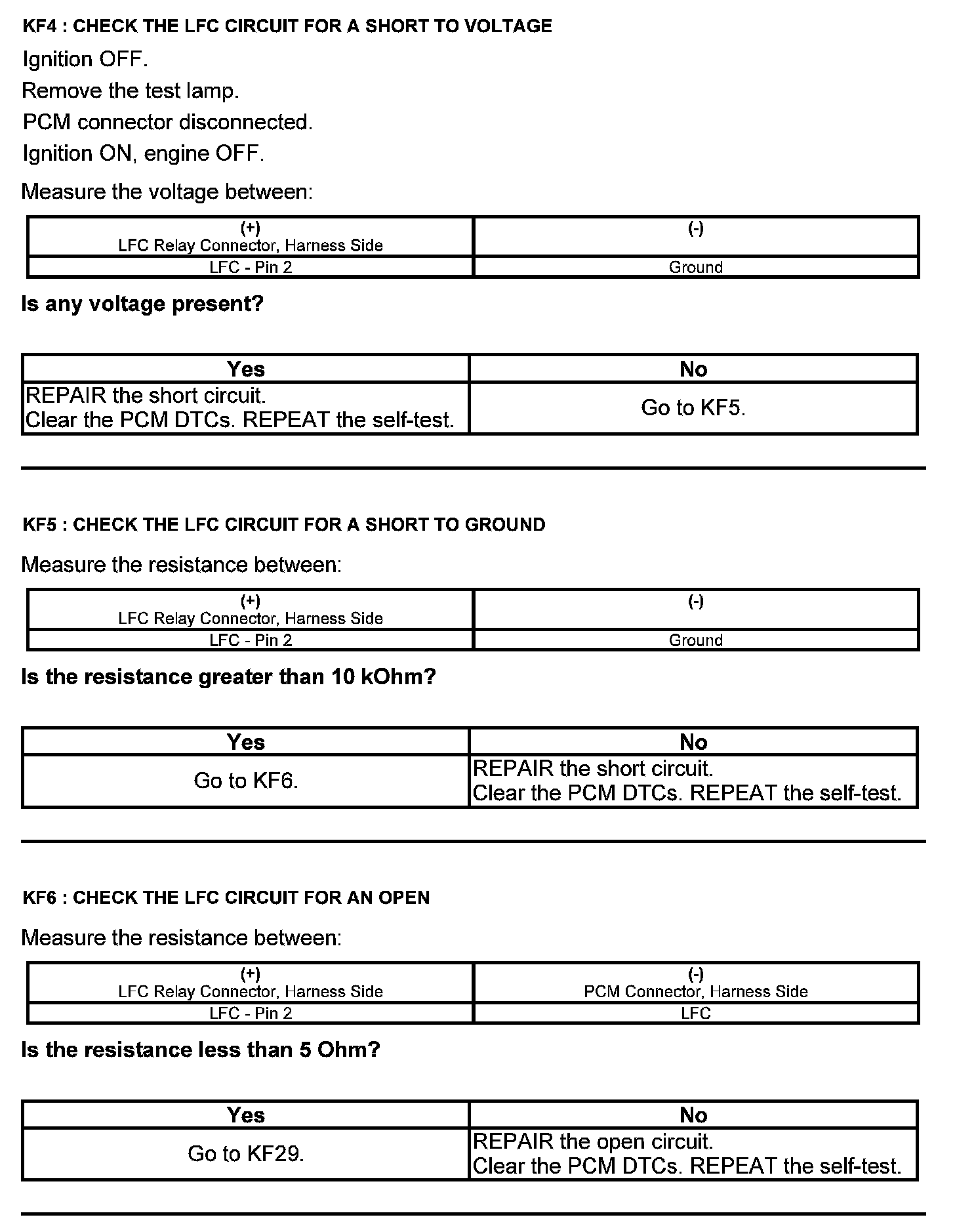

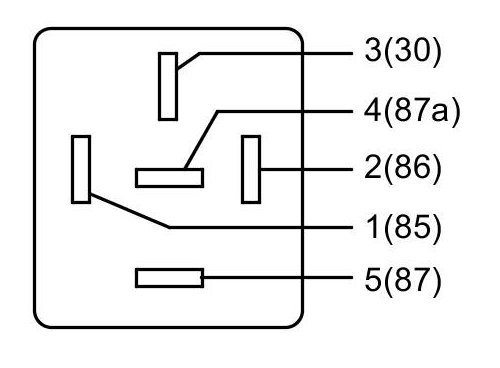

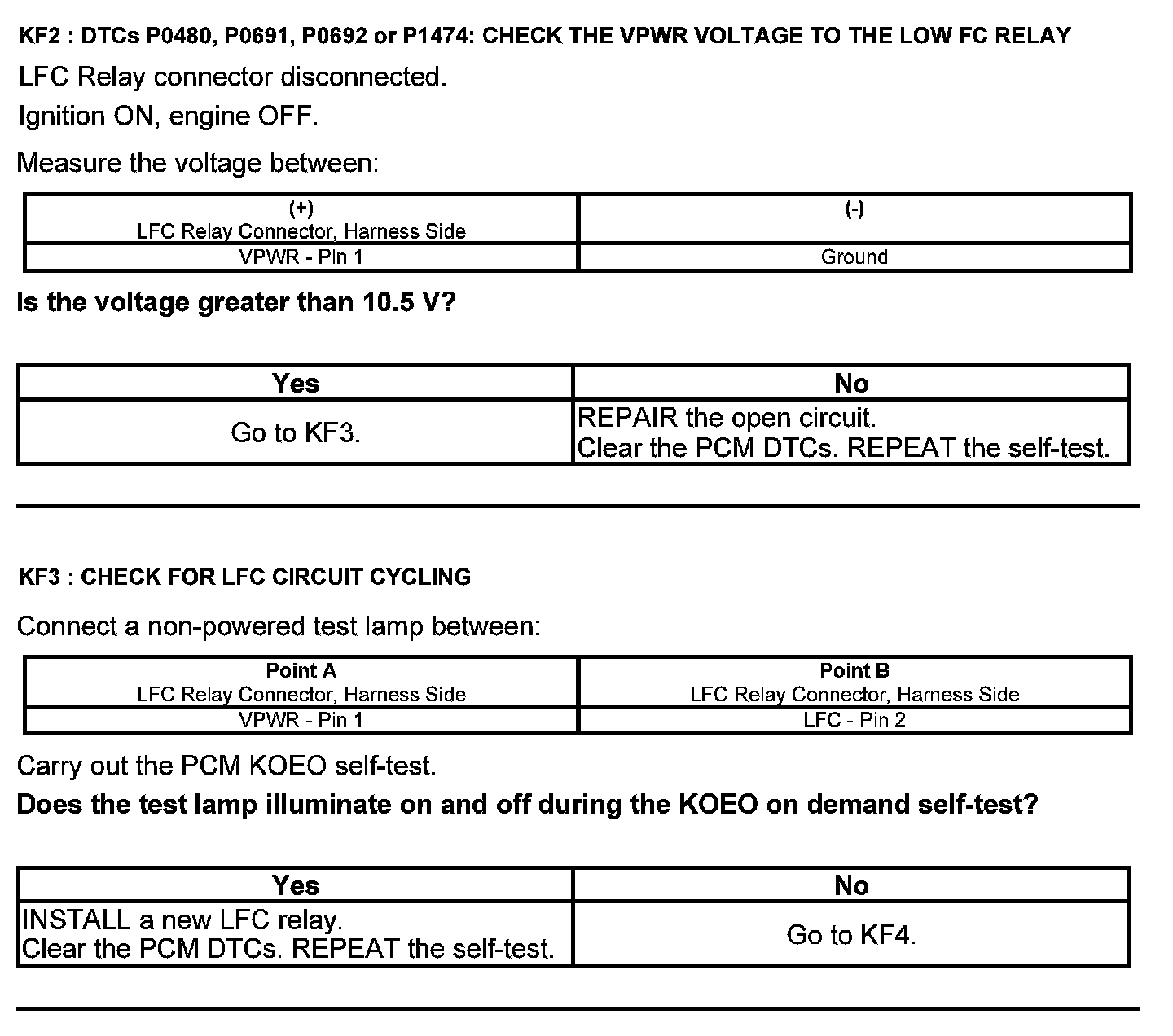

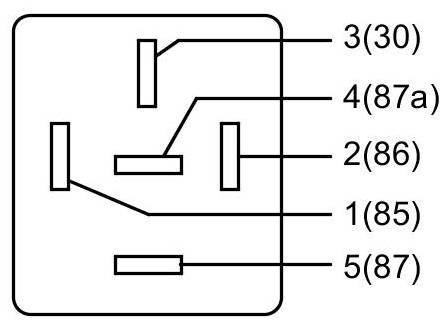

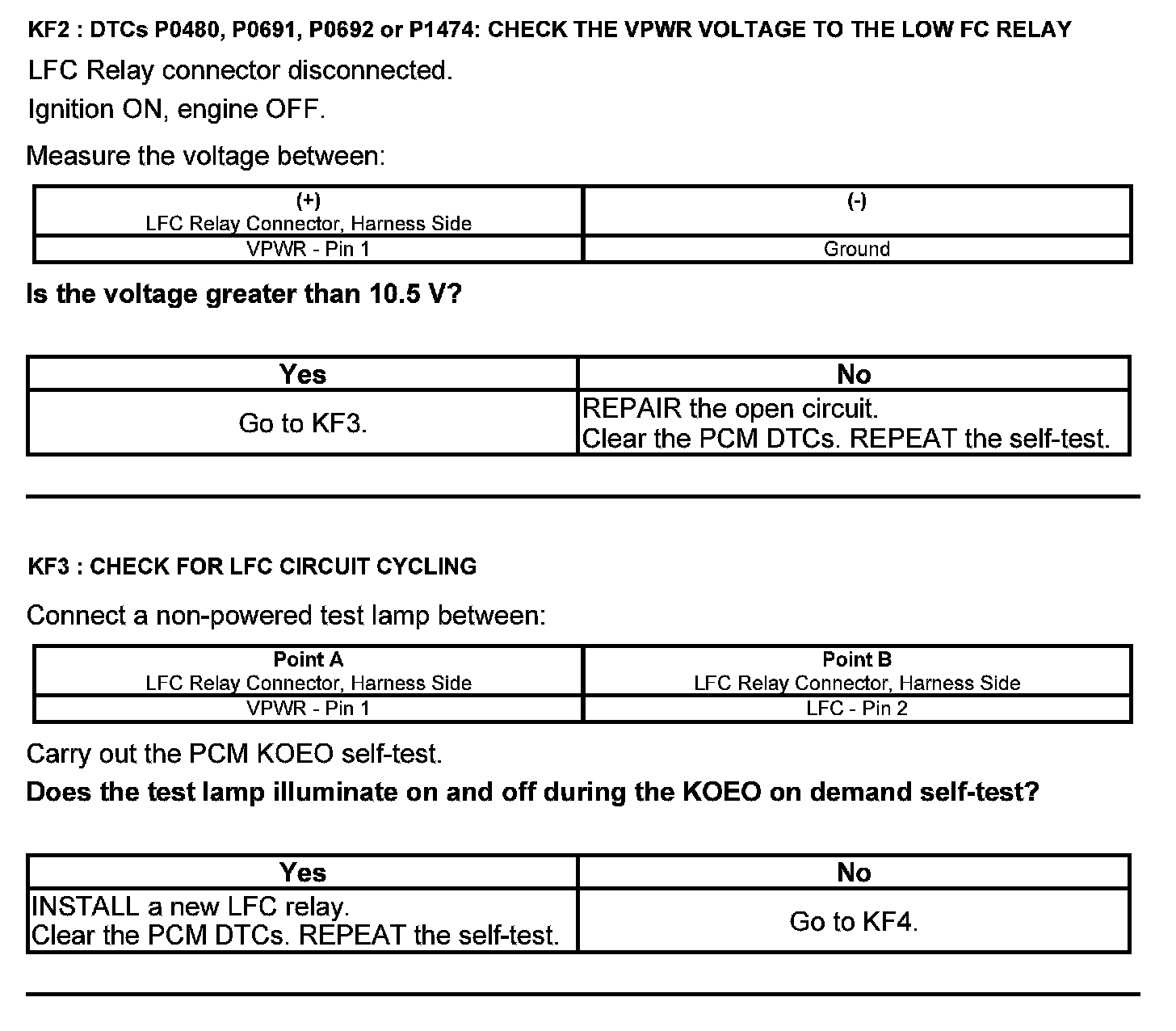

Low Fan Control (LFC) Relay Connector

Harness Side

Component side

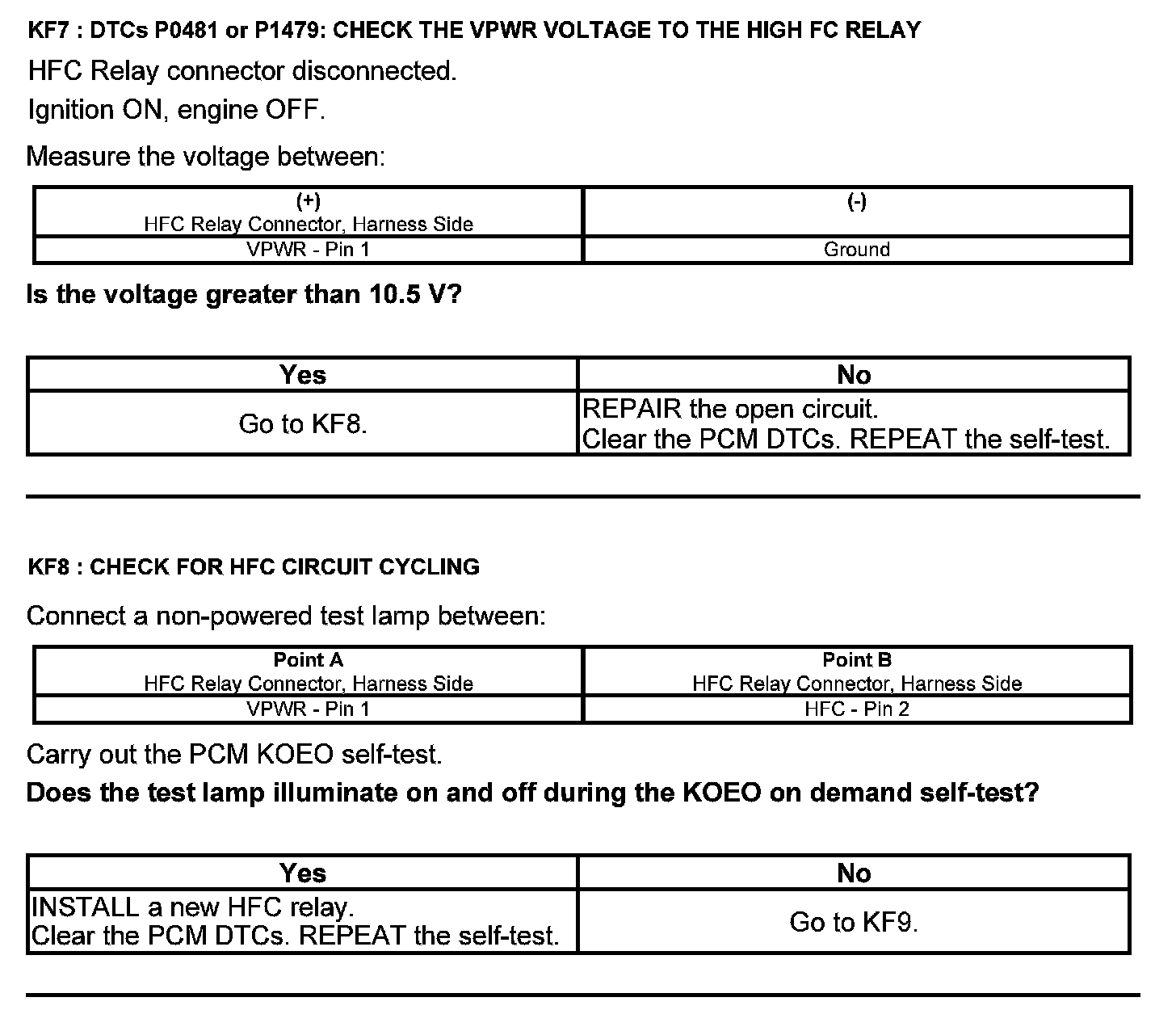

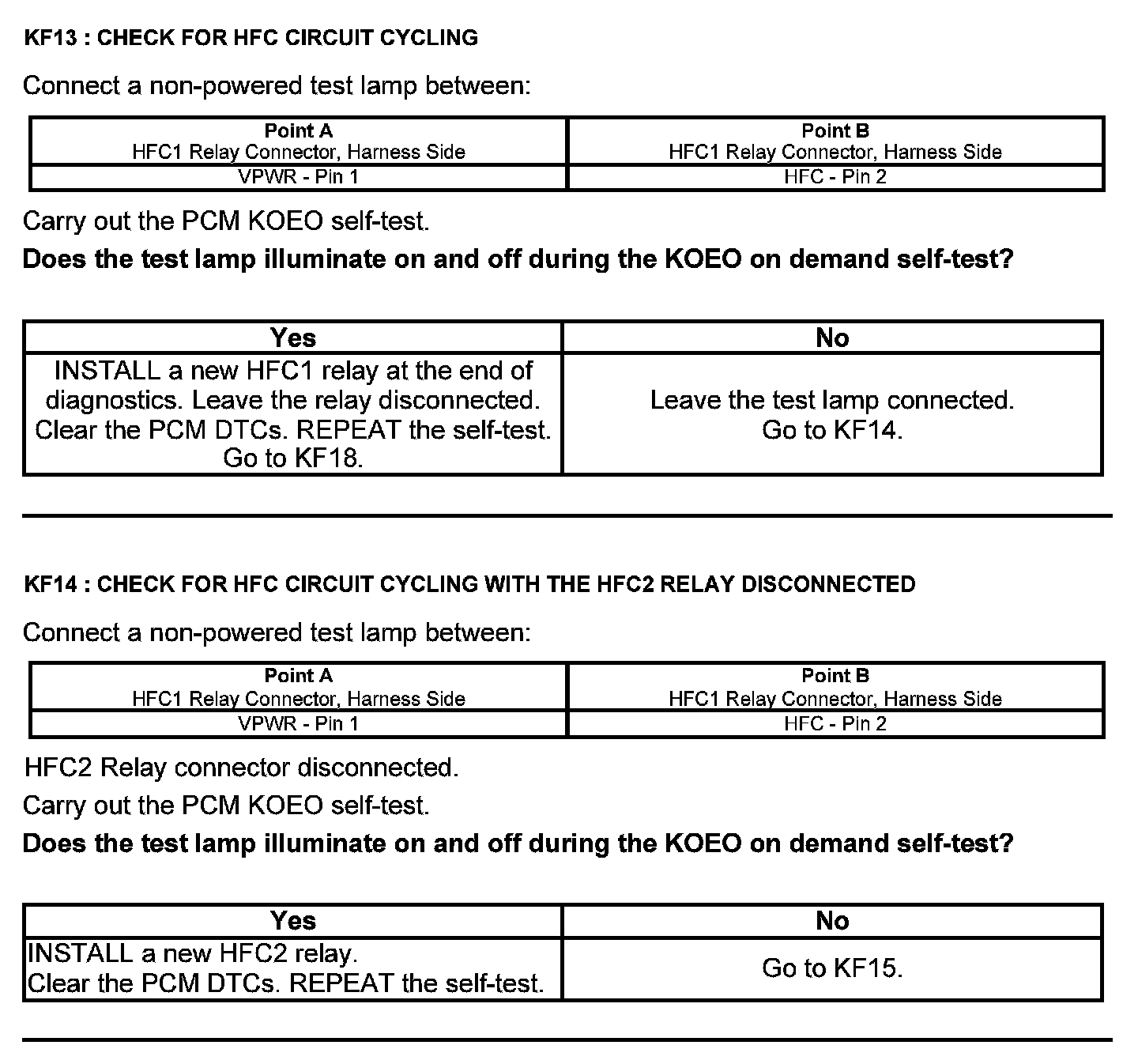

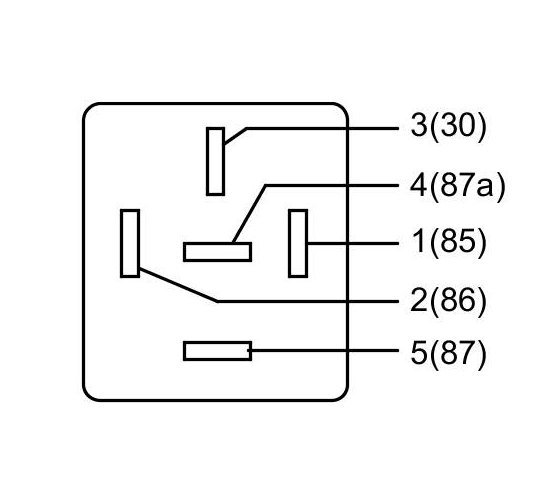

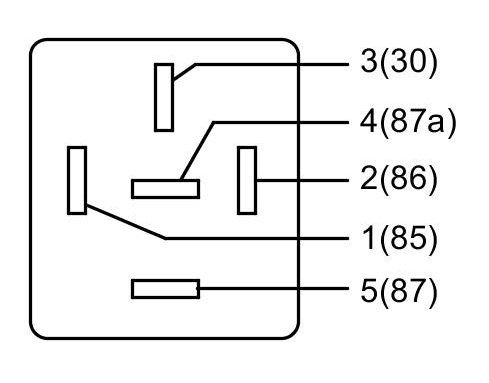

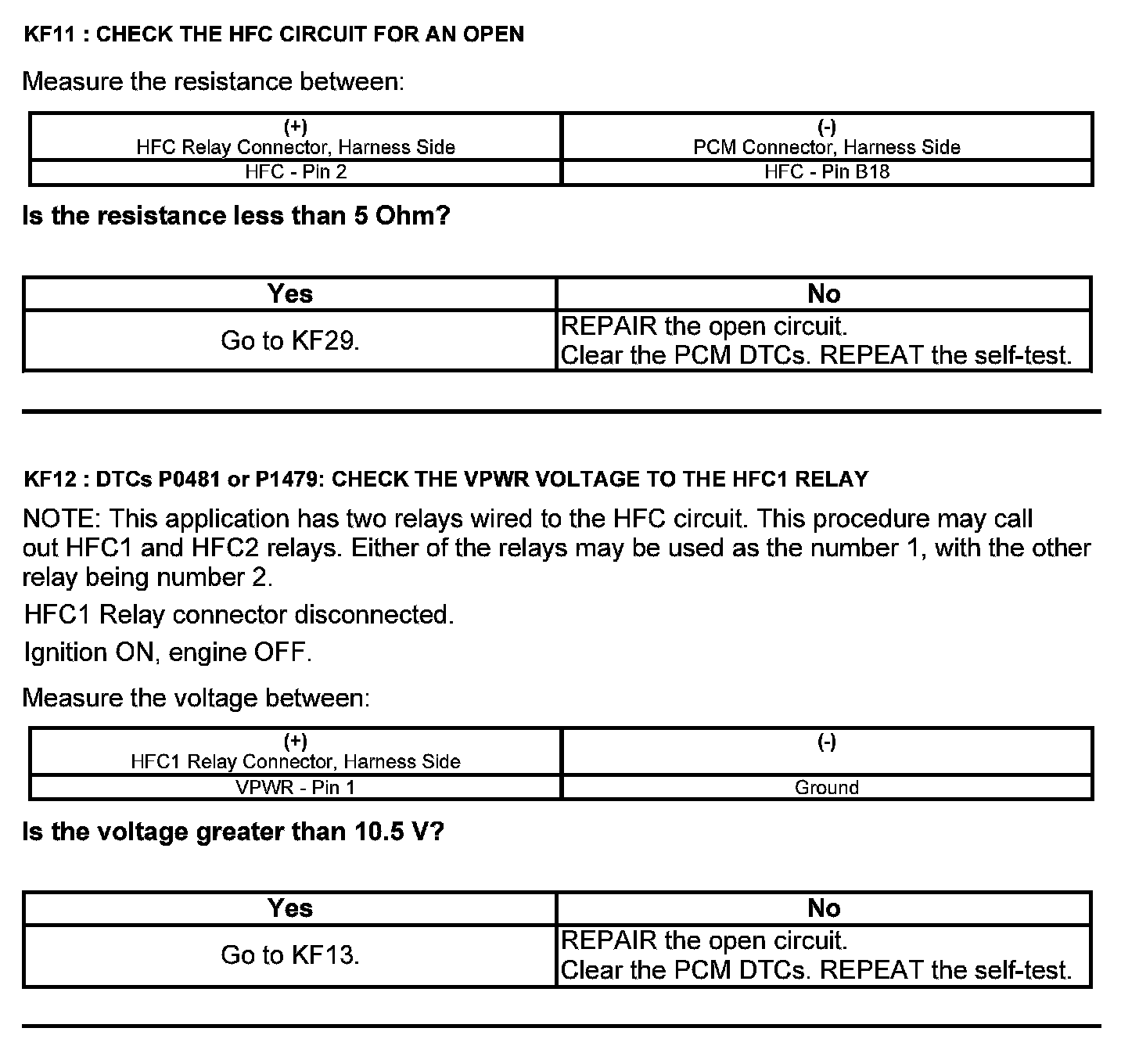

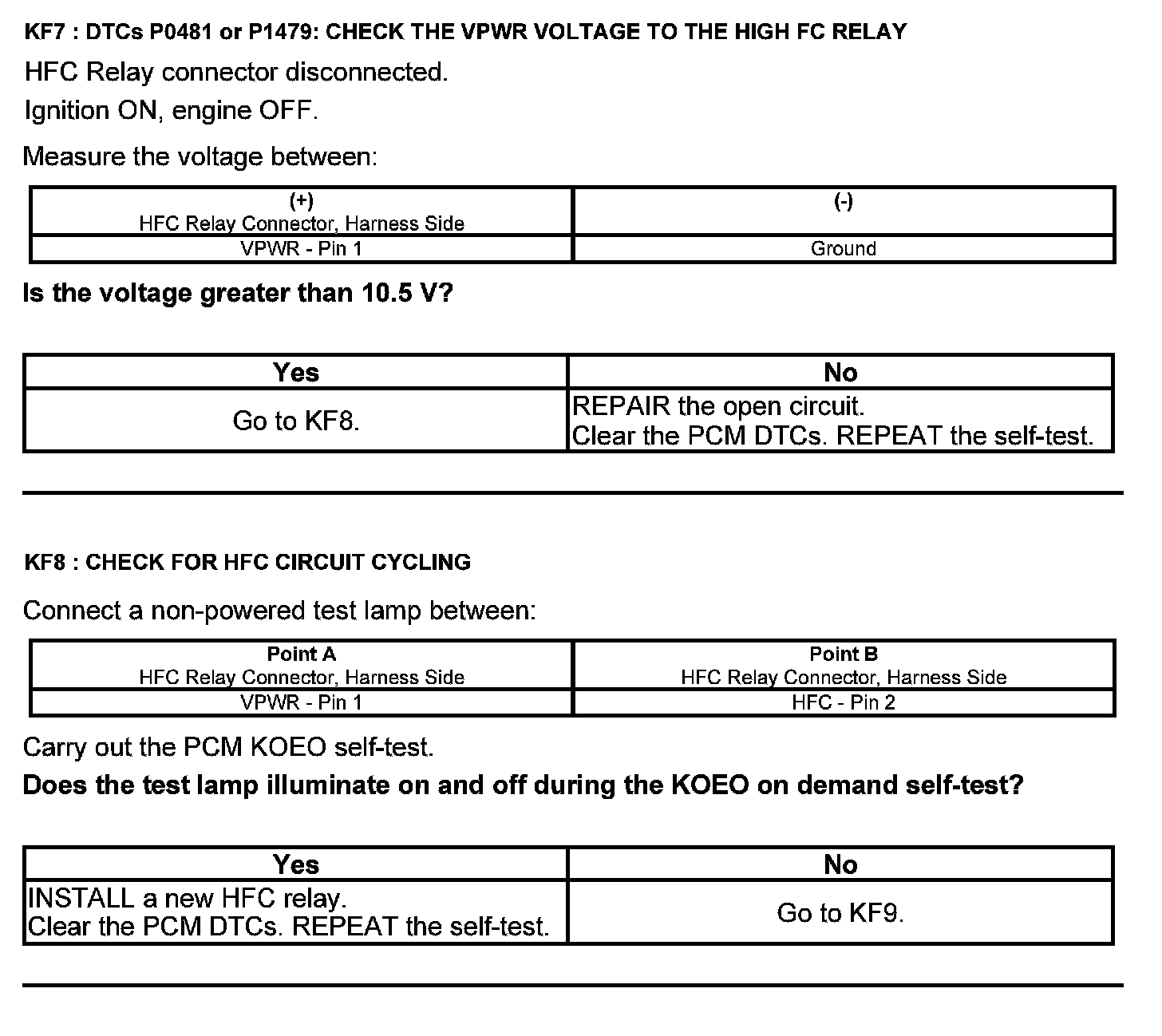

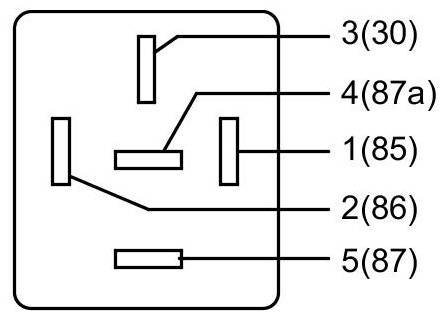

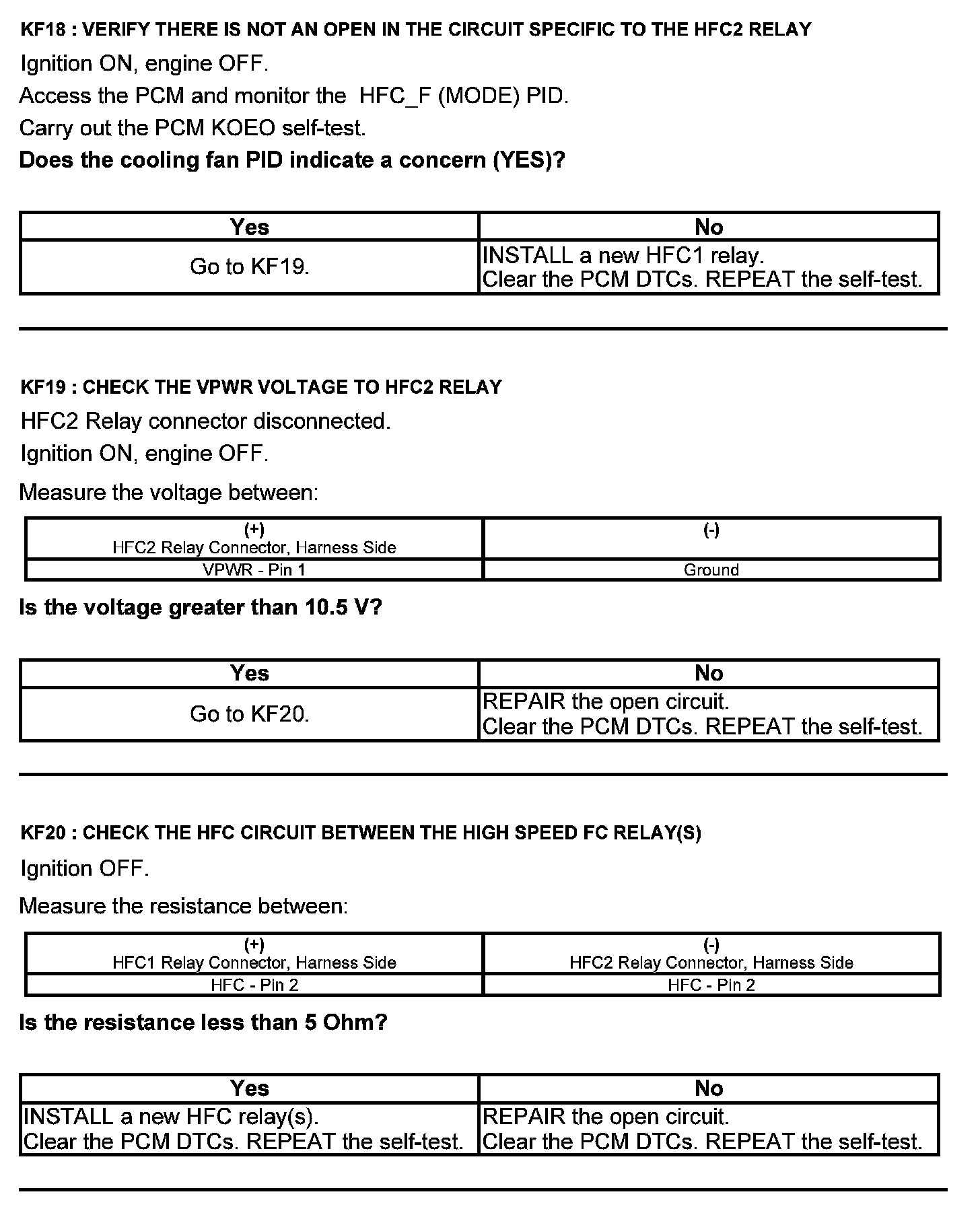

High Fan Control (HFC) Relay Connector

Harness Side

Component side

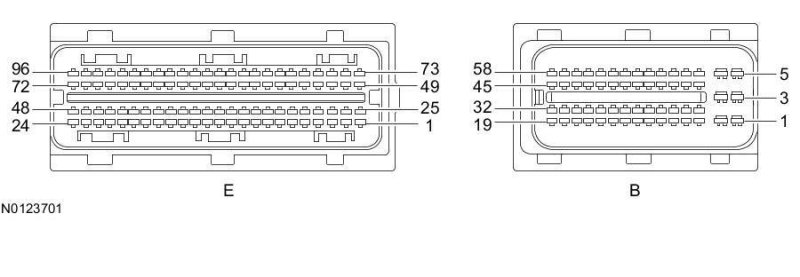

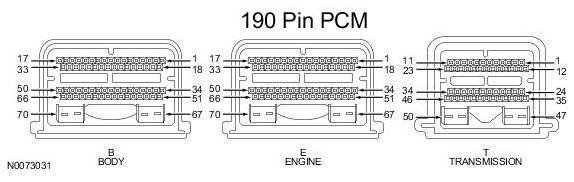

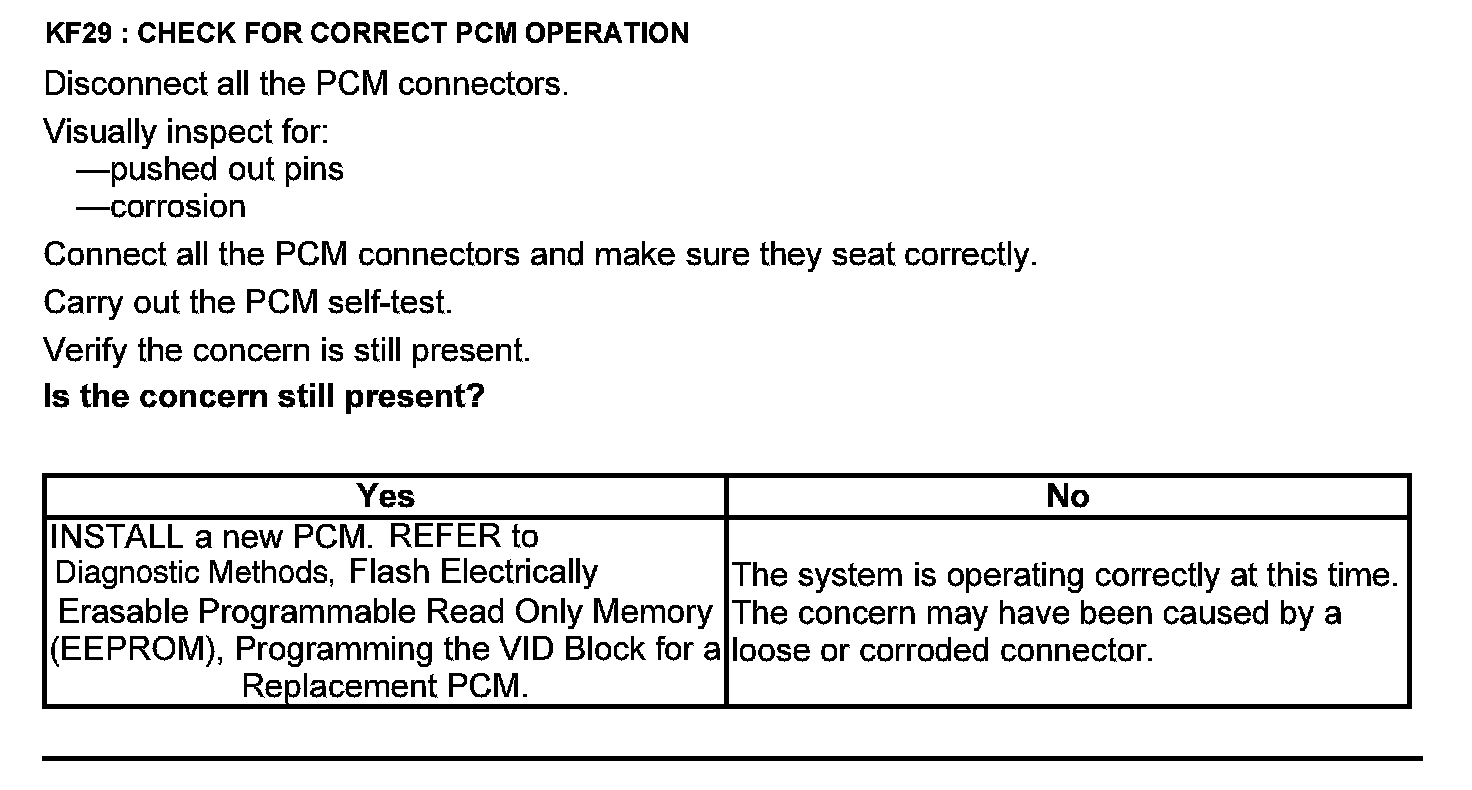

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.

Harness Side
