Test HG: Positive Crankcase Ventilation (PCV) System

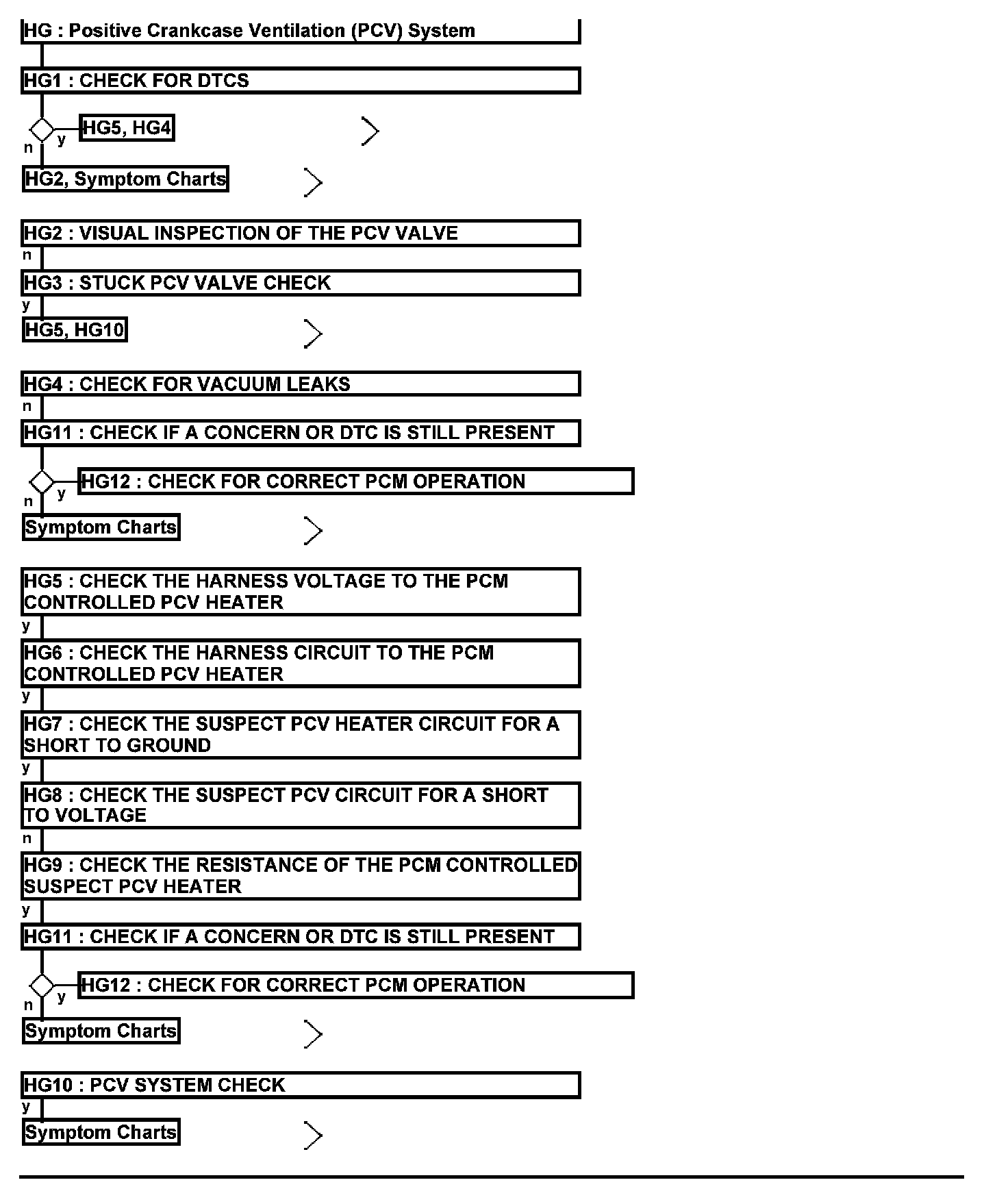

Positive Crankcase Ventilation (PCV) System












Positive Crankcase Ventilation (PCV) Connector





Harness Side

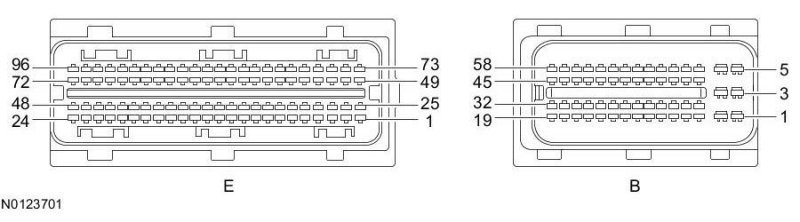

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
