Vehicles That Don't Start

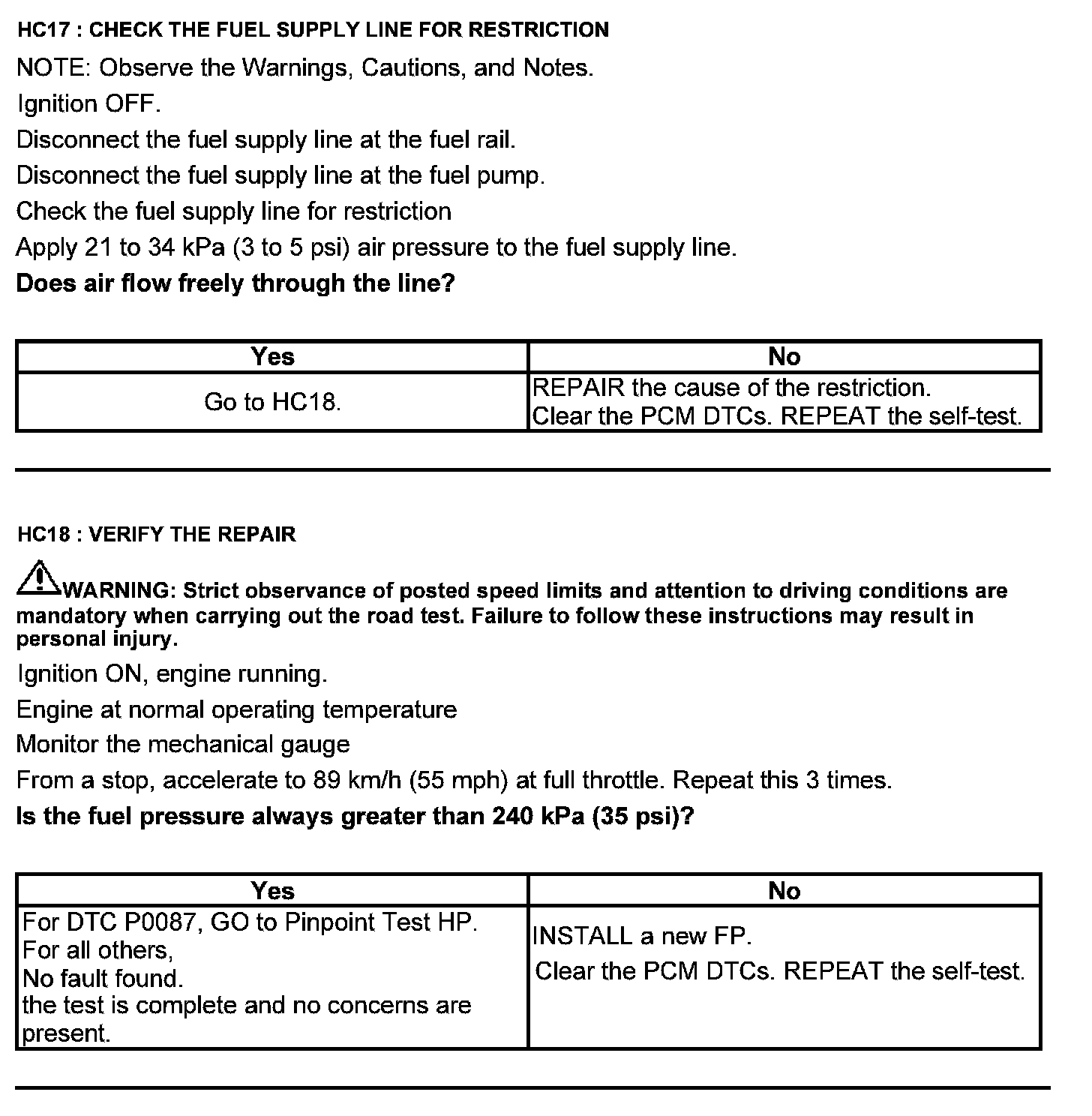

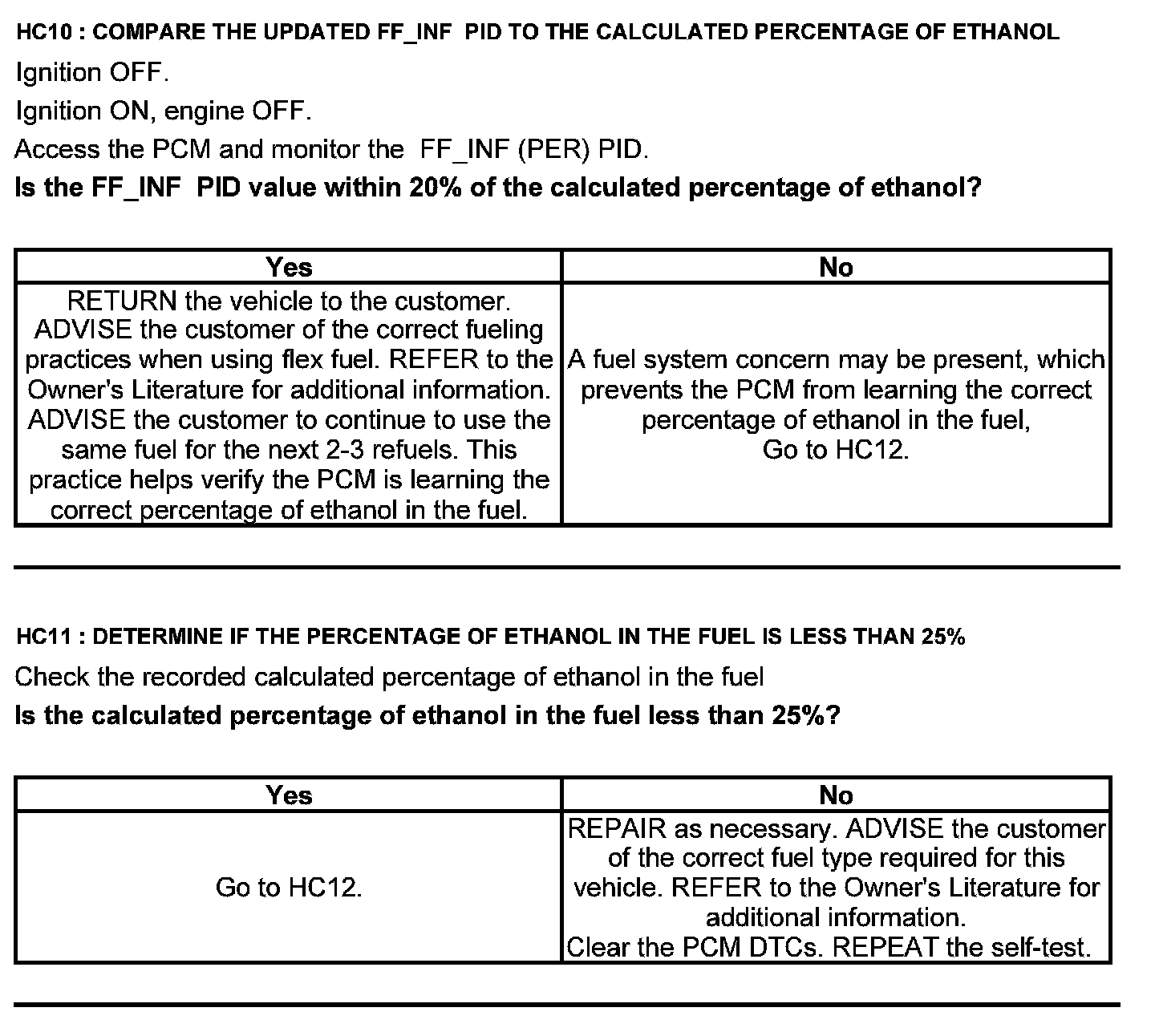

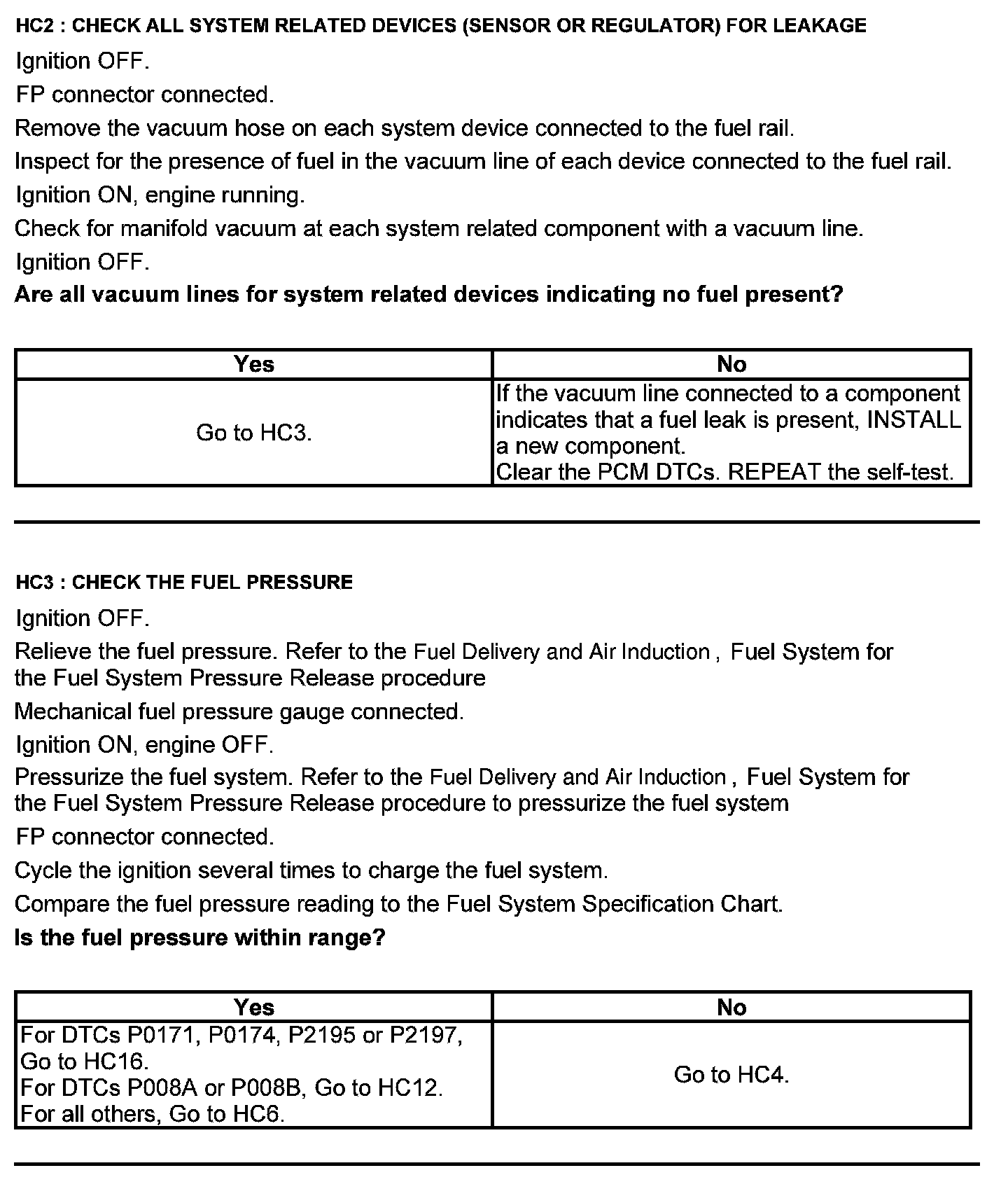

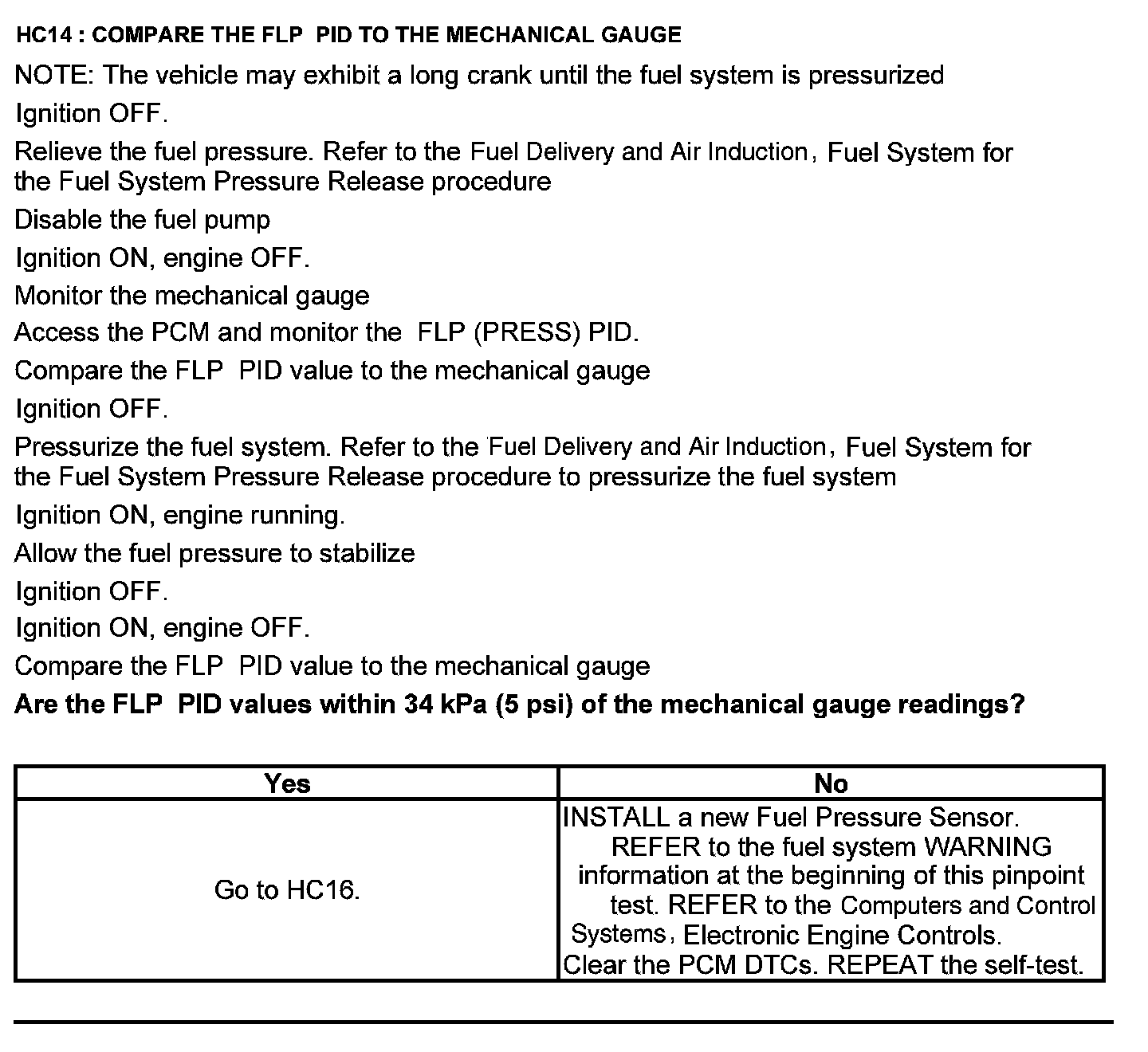

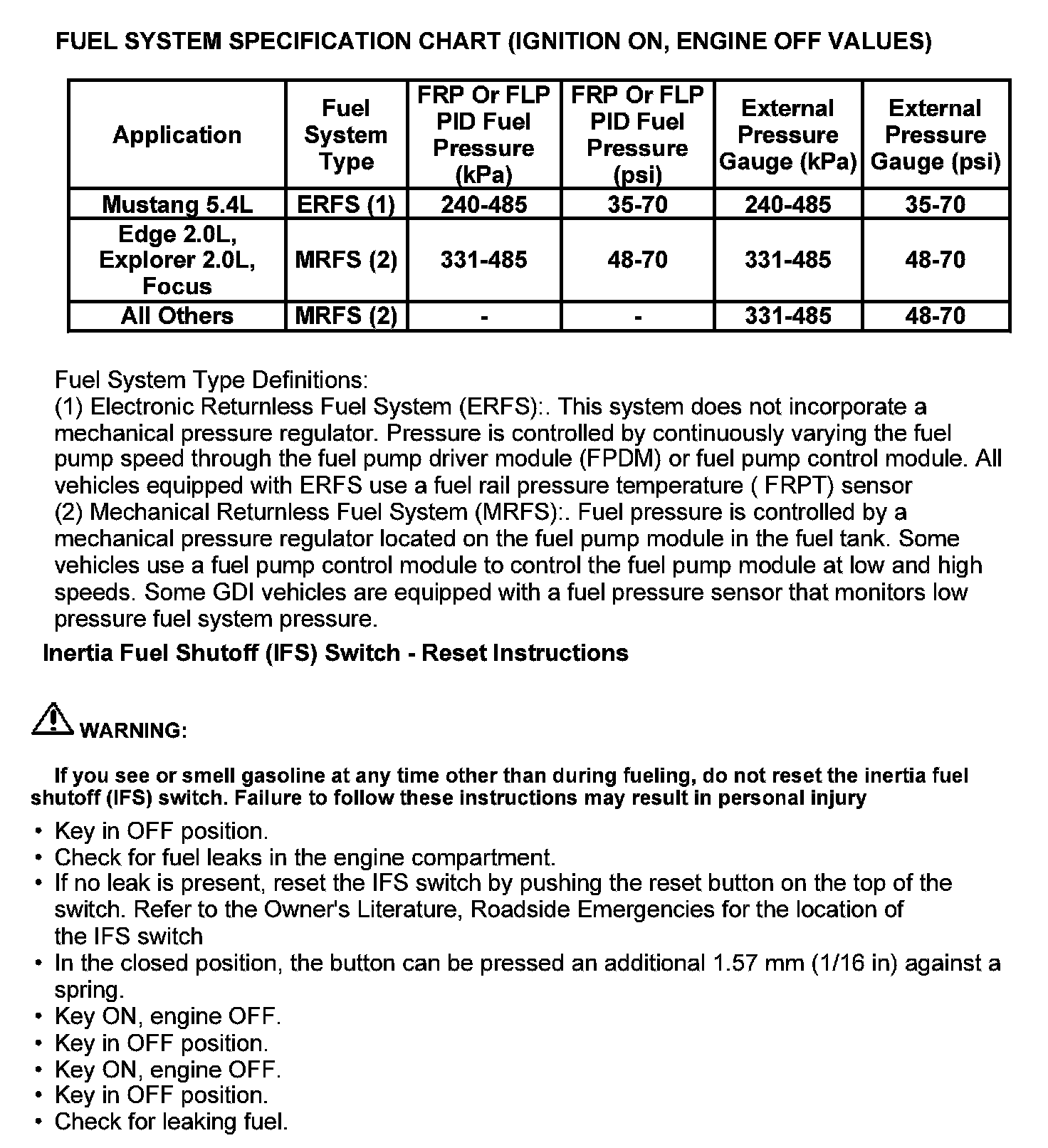

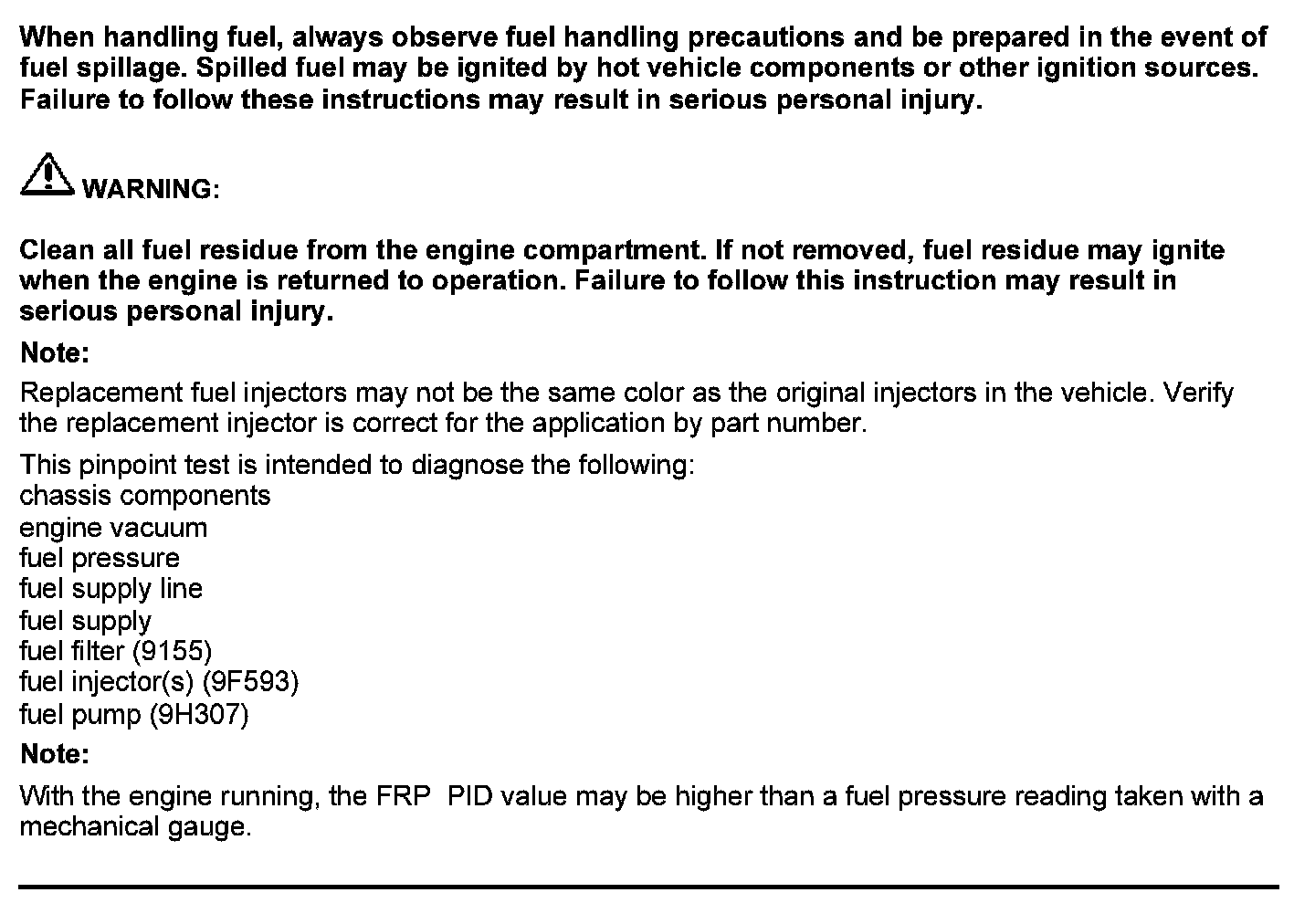

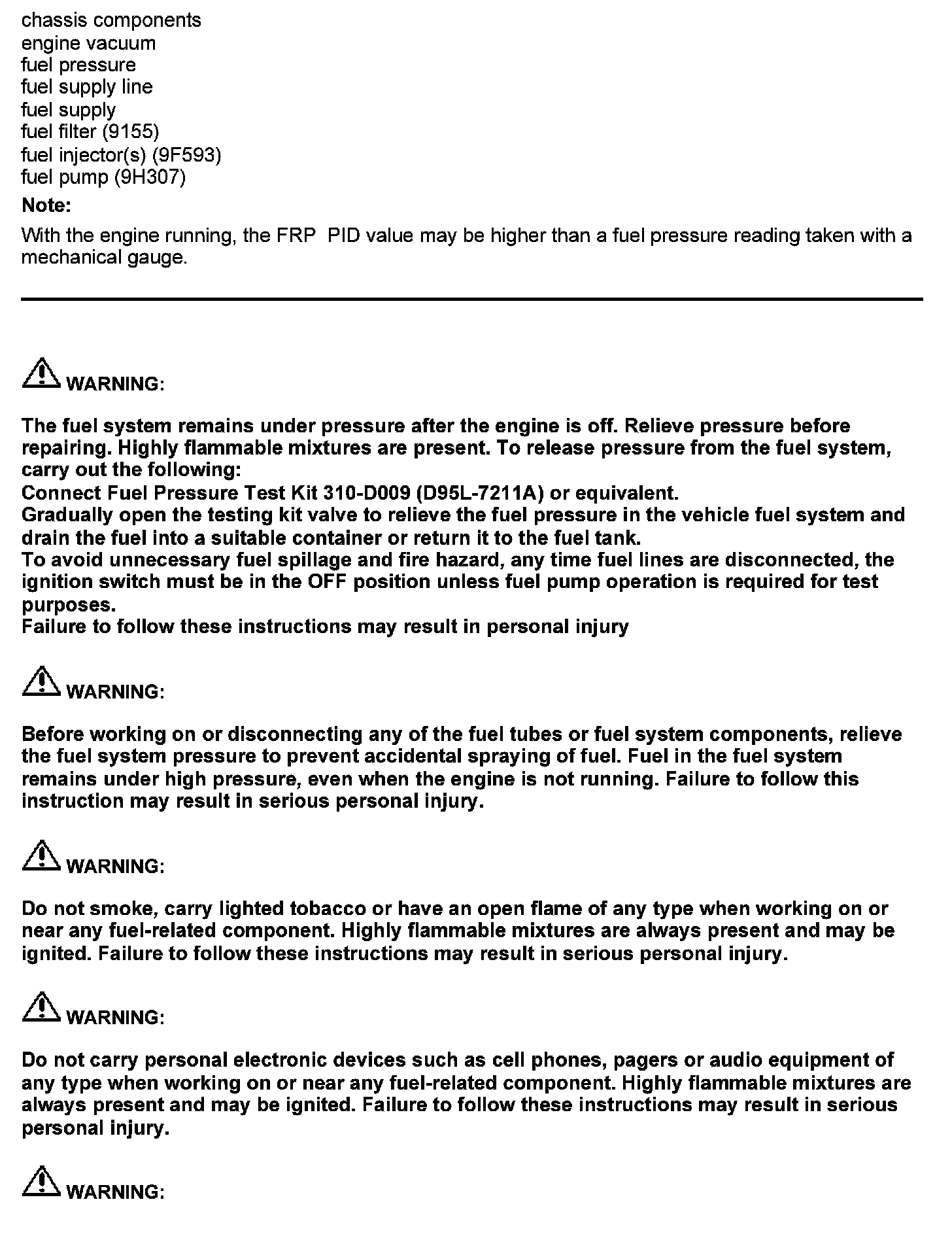

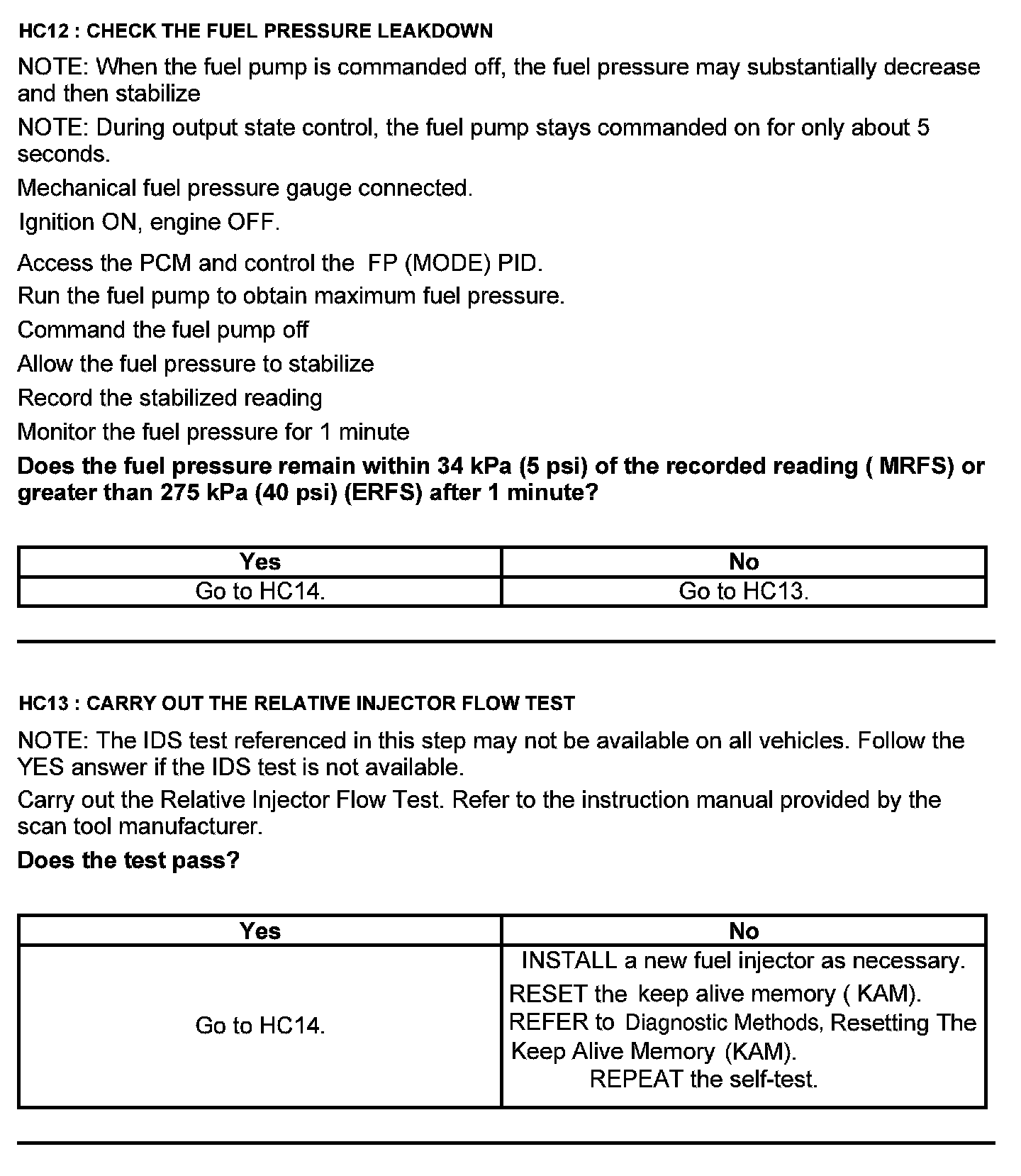

Fuel Delivery System - Vehicles that don't start

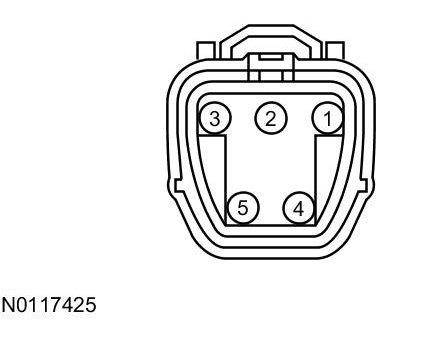

Fuel Pump (FP) Connector




Harness Side
