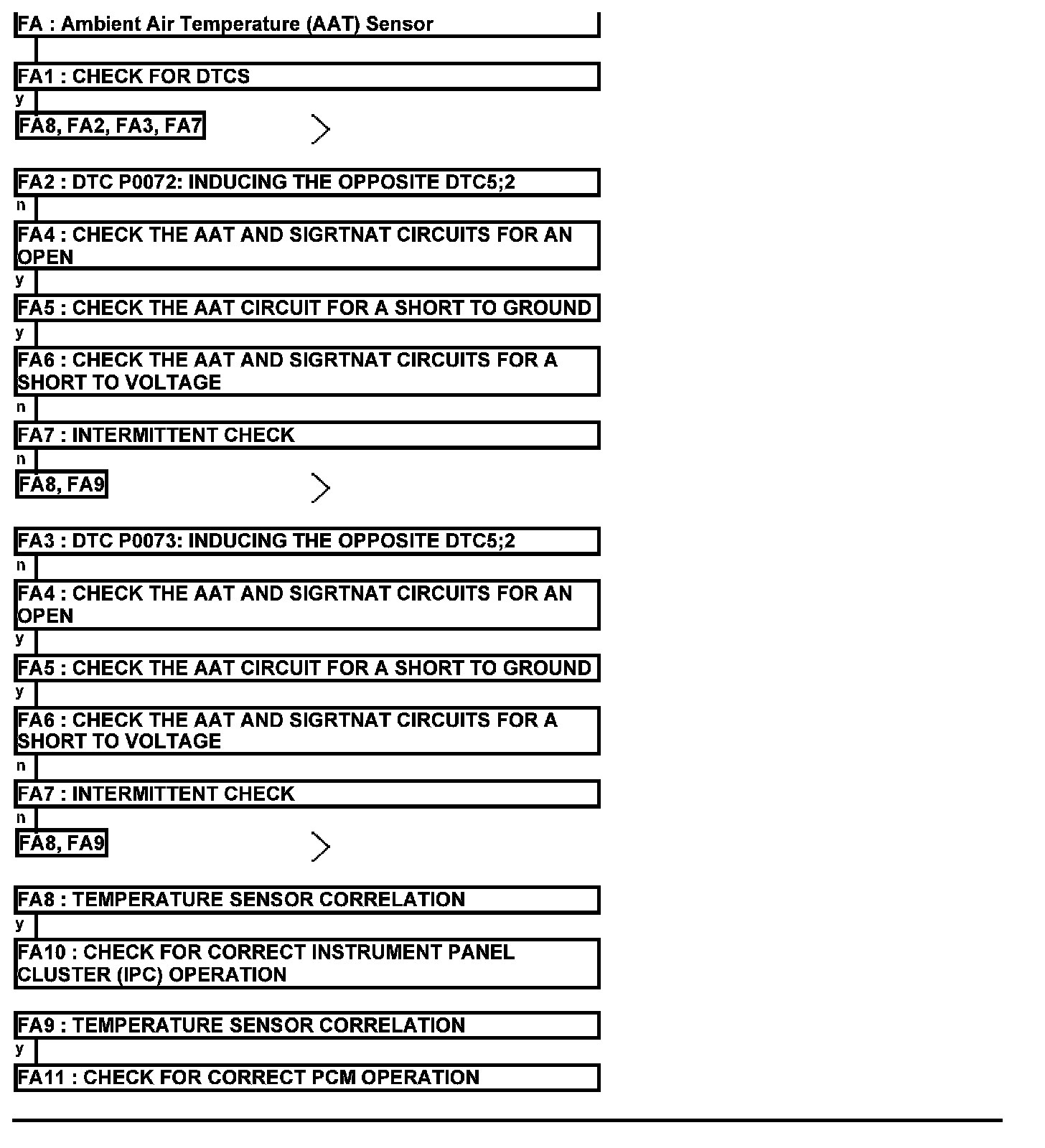

Test FA: Ambient Air Temperature (AAT) Sensor

Ambient Air Temperature (AAT) Sensor

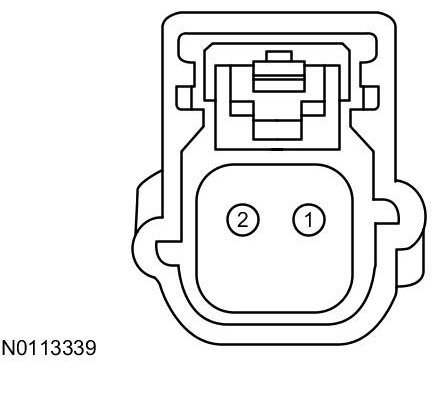

Ambient Air Temperature (AAT) Sensor Connector

Harness Side

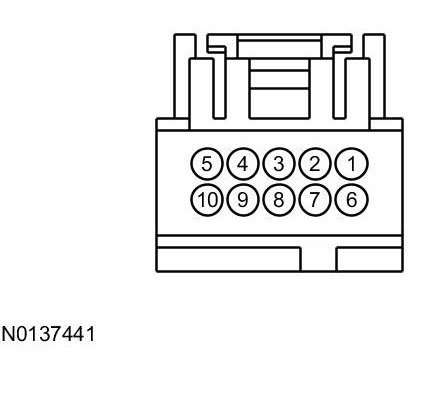

Right Exterior Rear View Mirror Assembly Connector

Harness Side

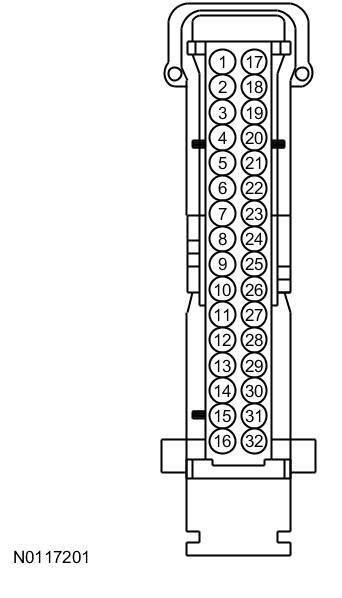

Instrument Panel Cluster (IPC) Connector

Harness Side

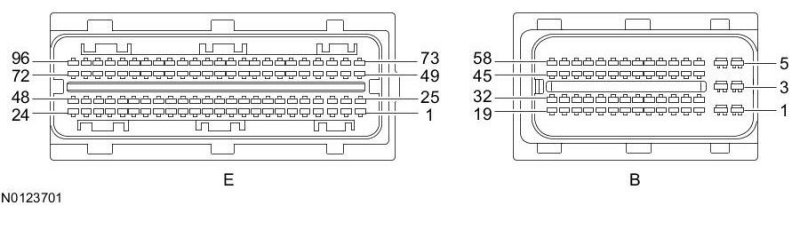

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.

Harness Side
