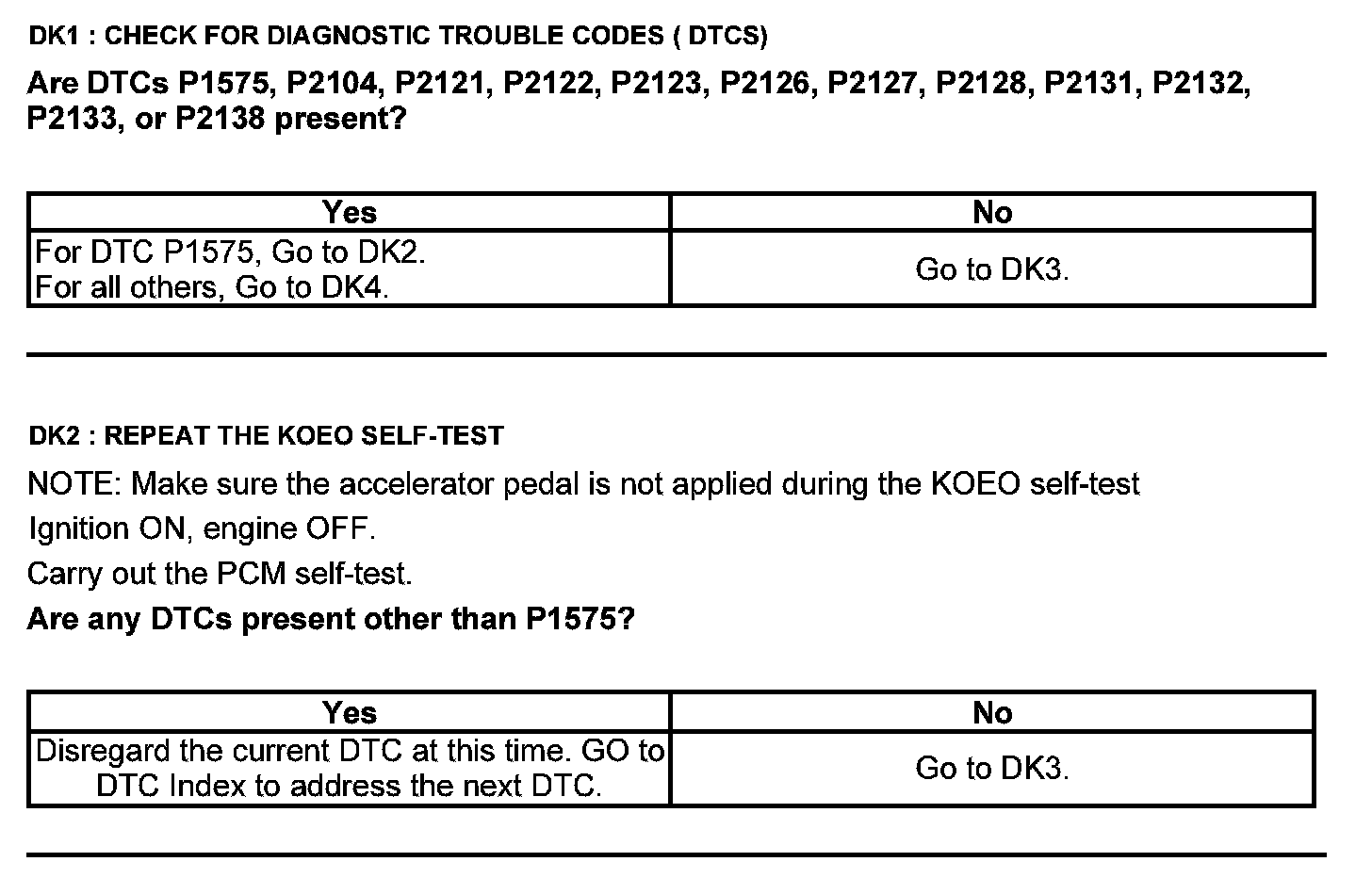

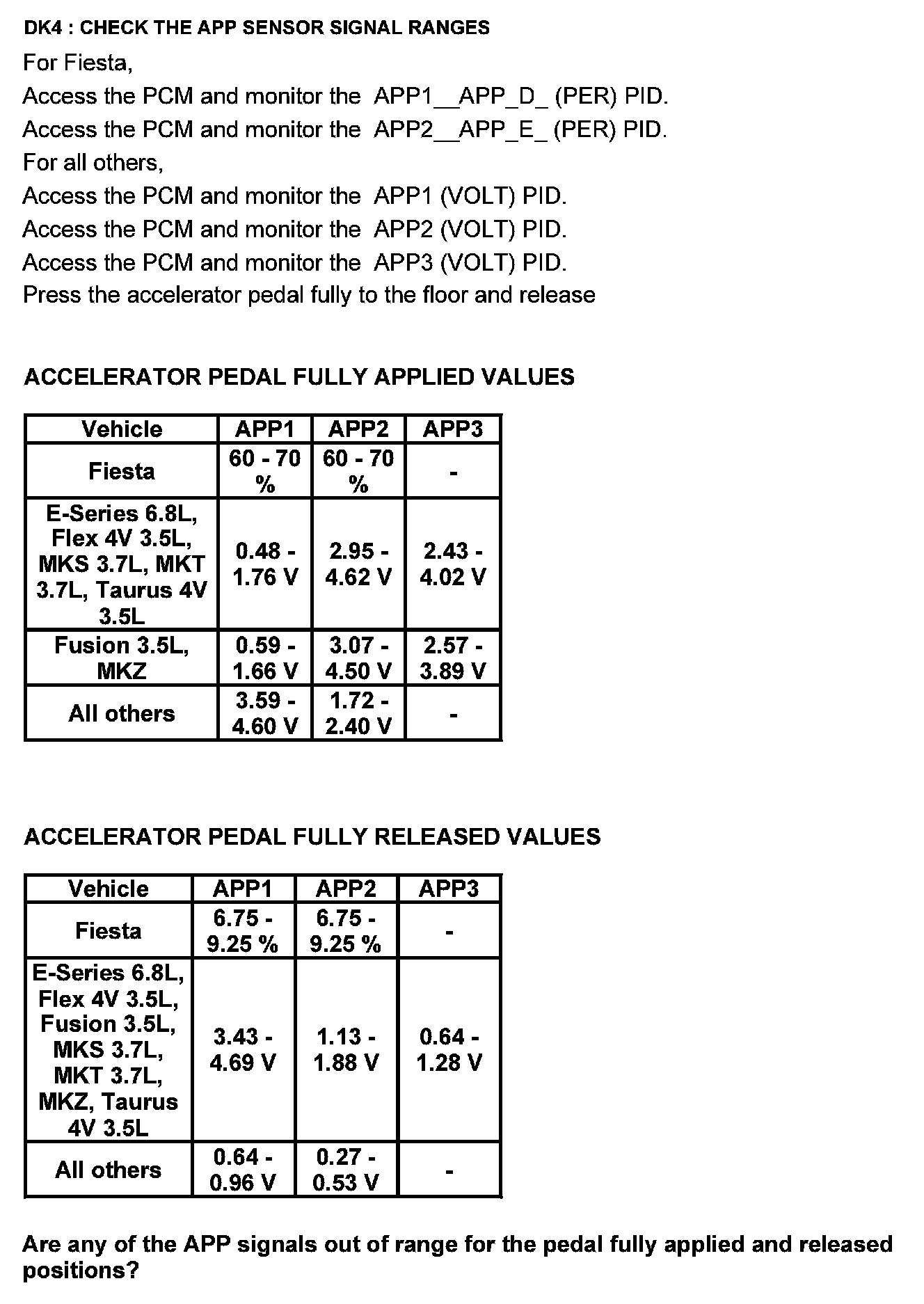

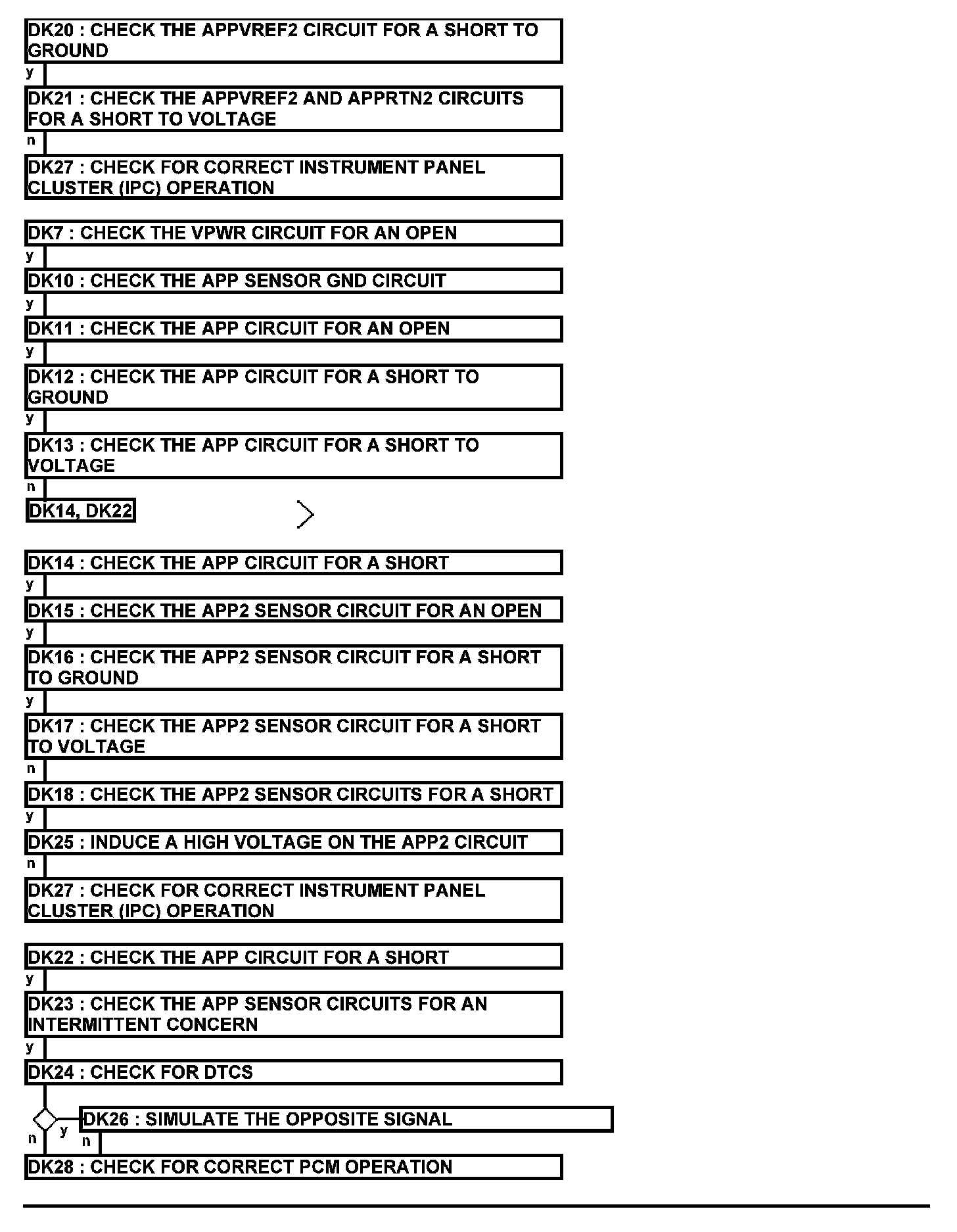

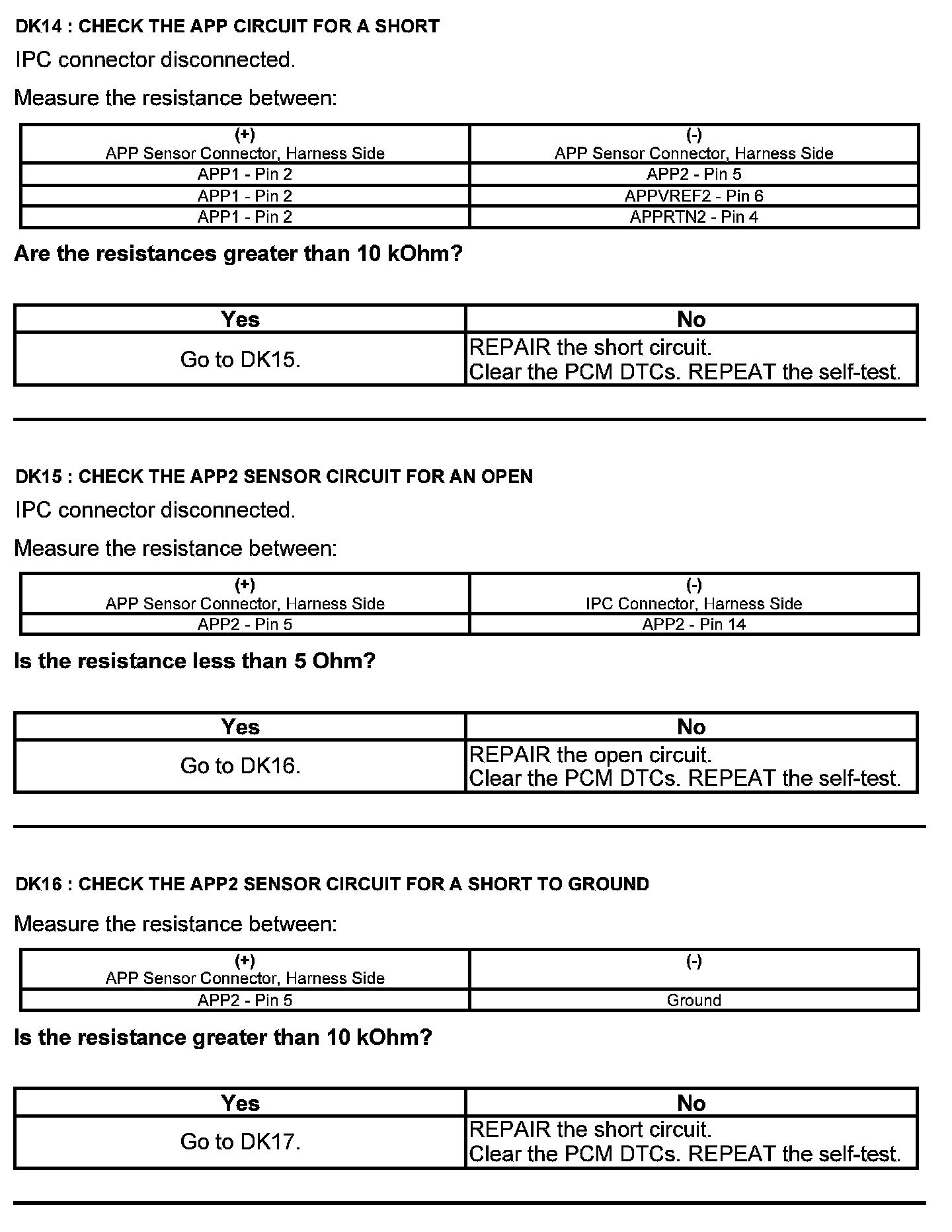

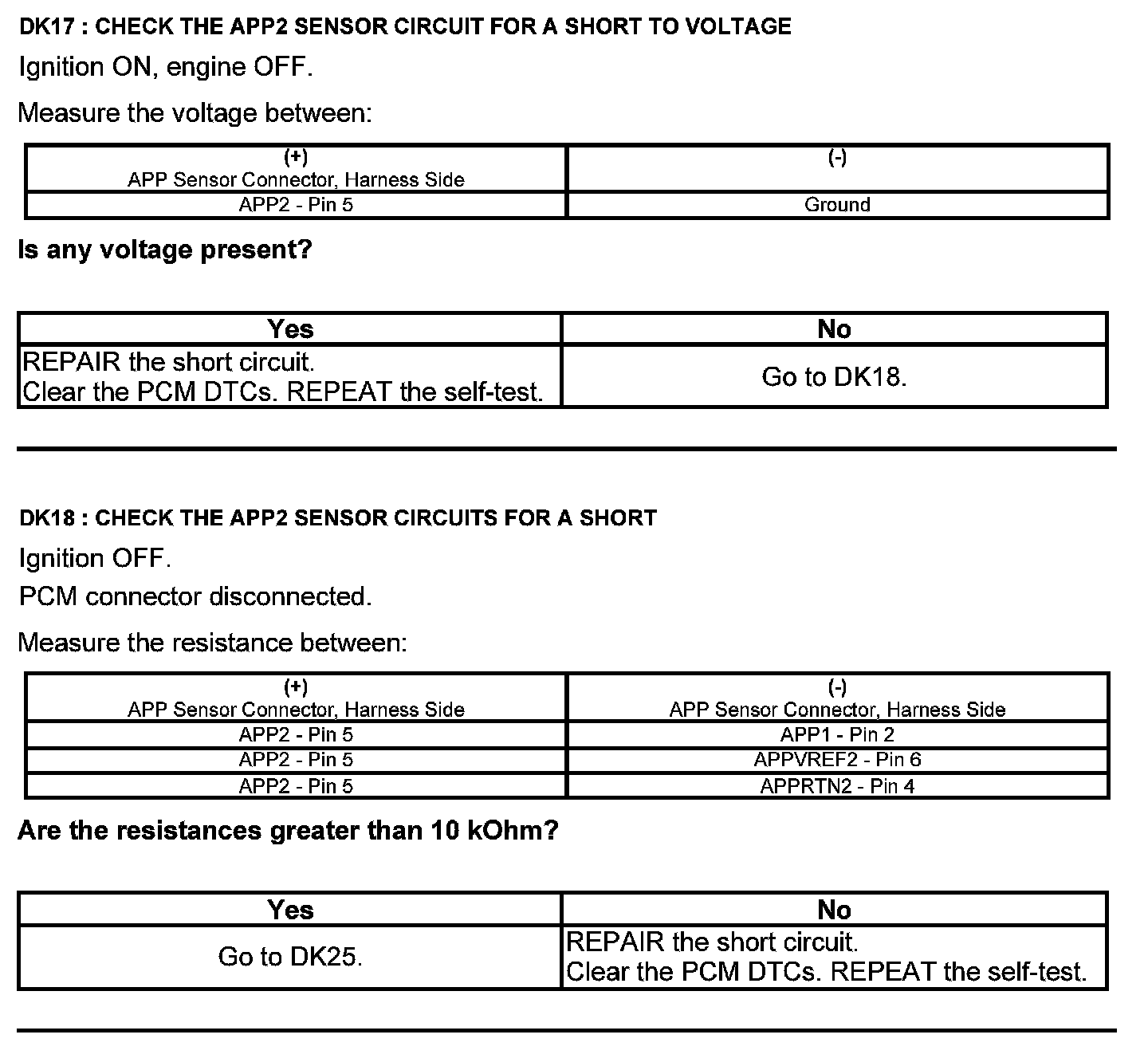

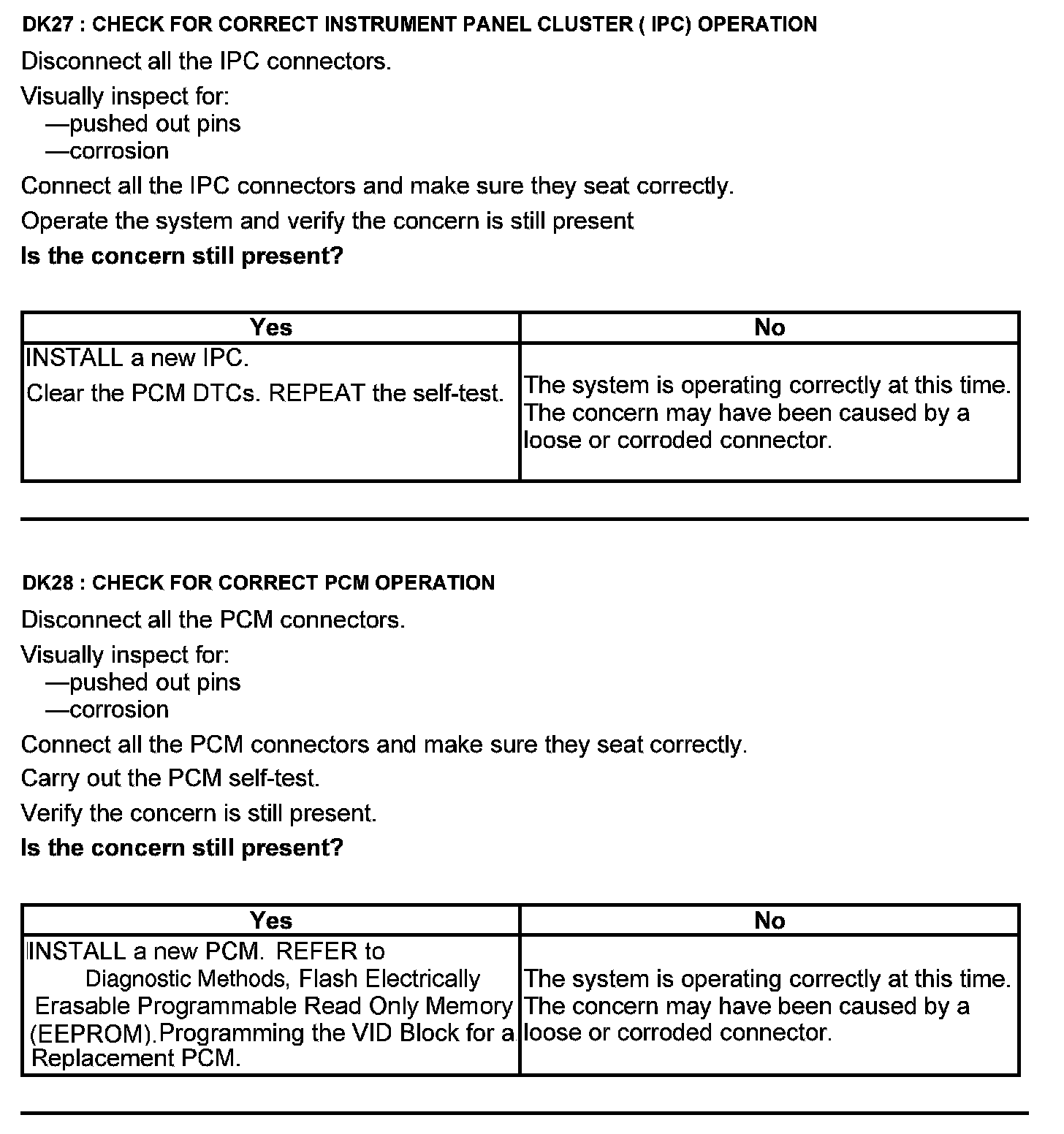

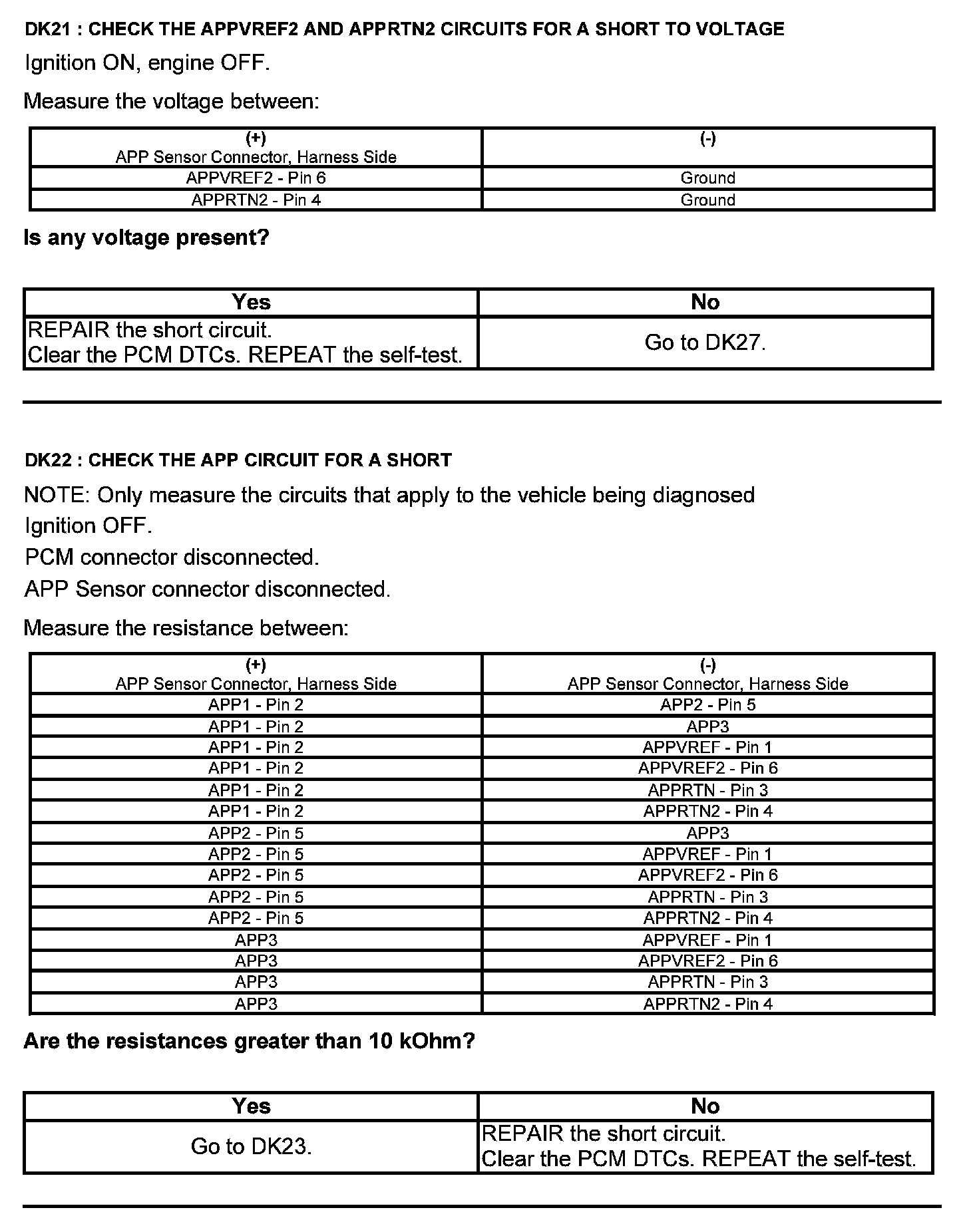

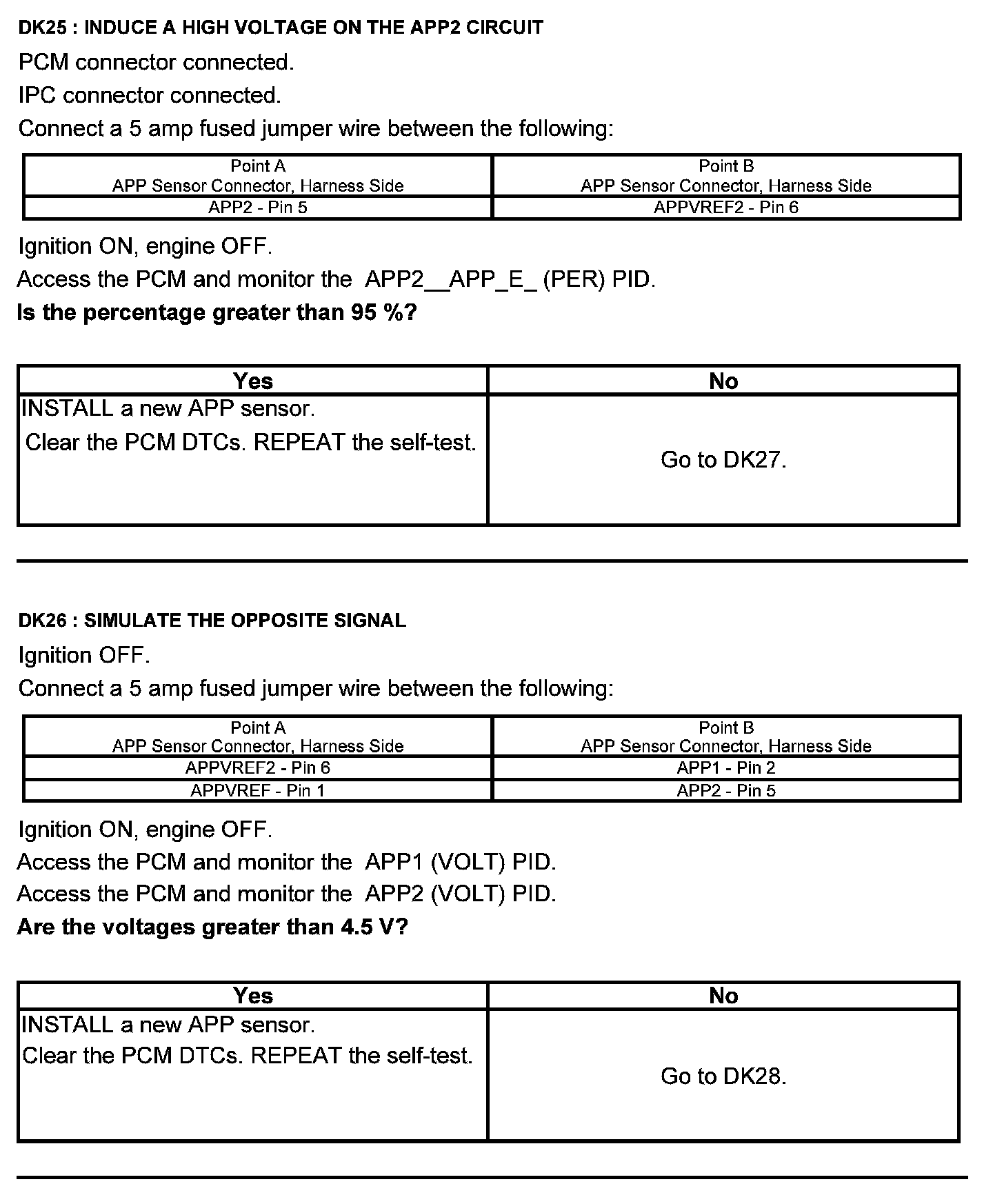

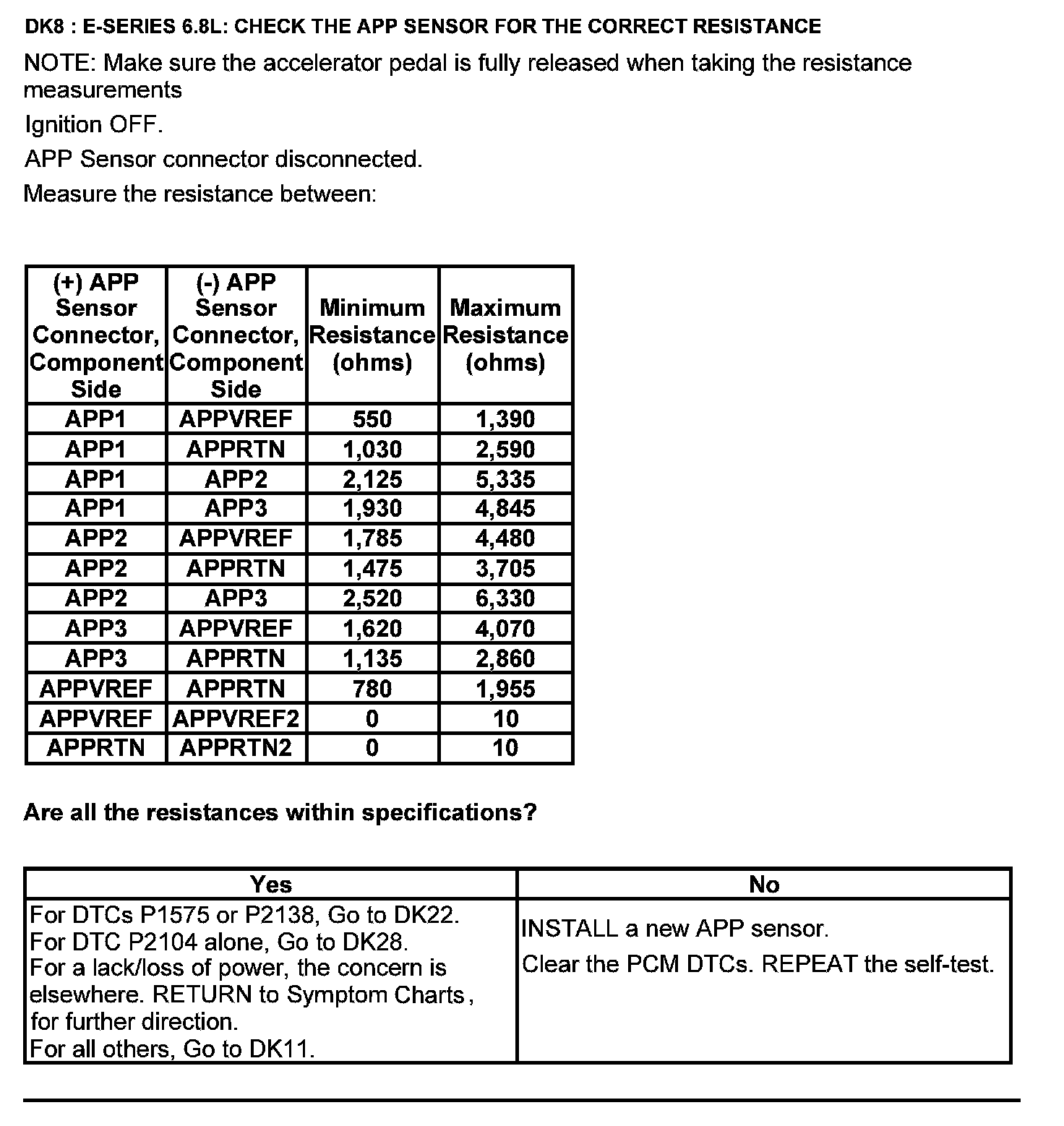

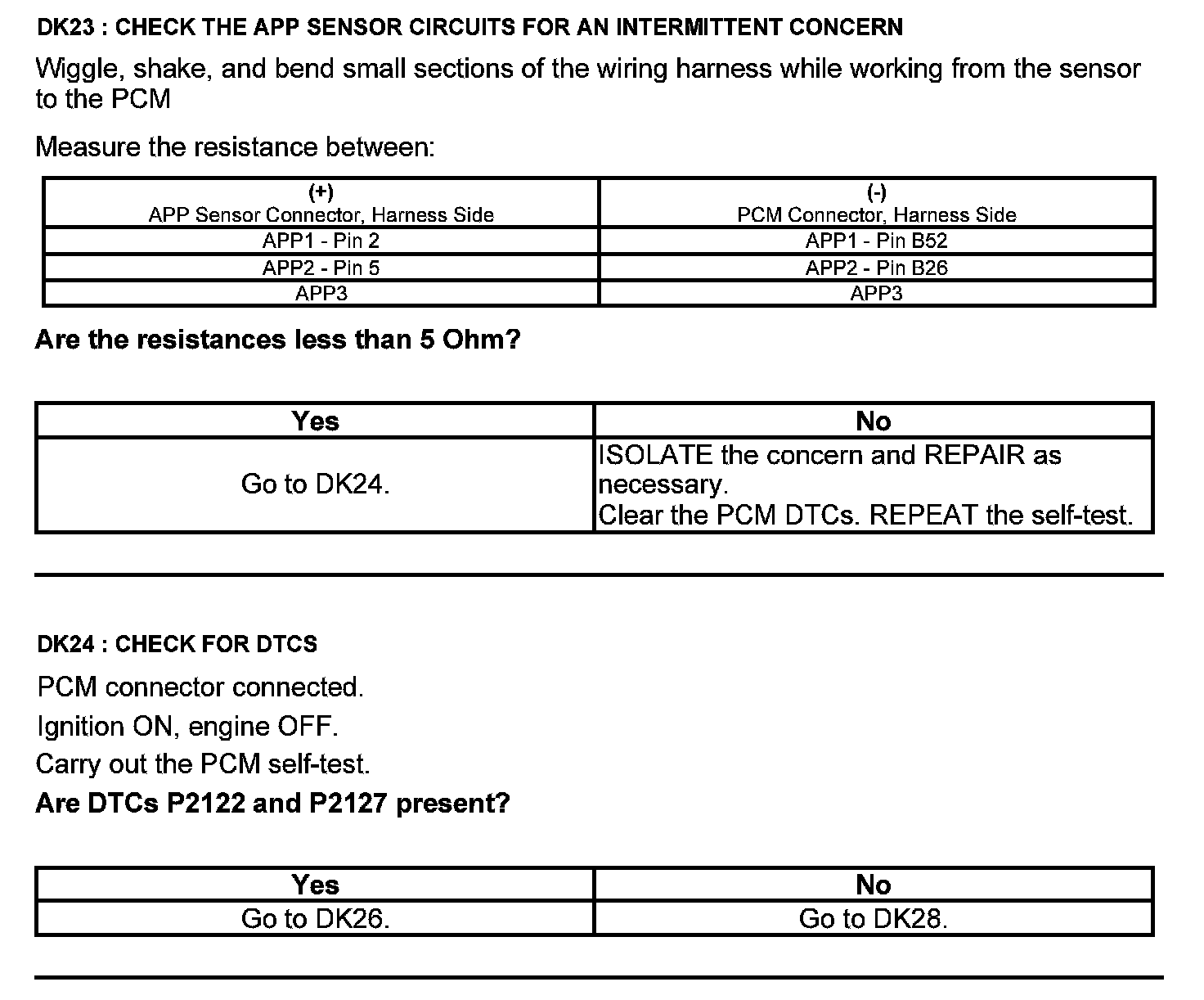

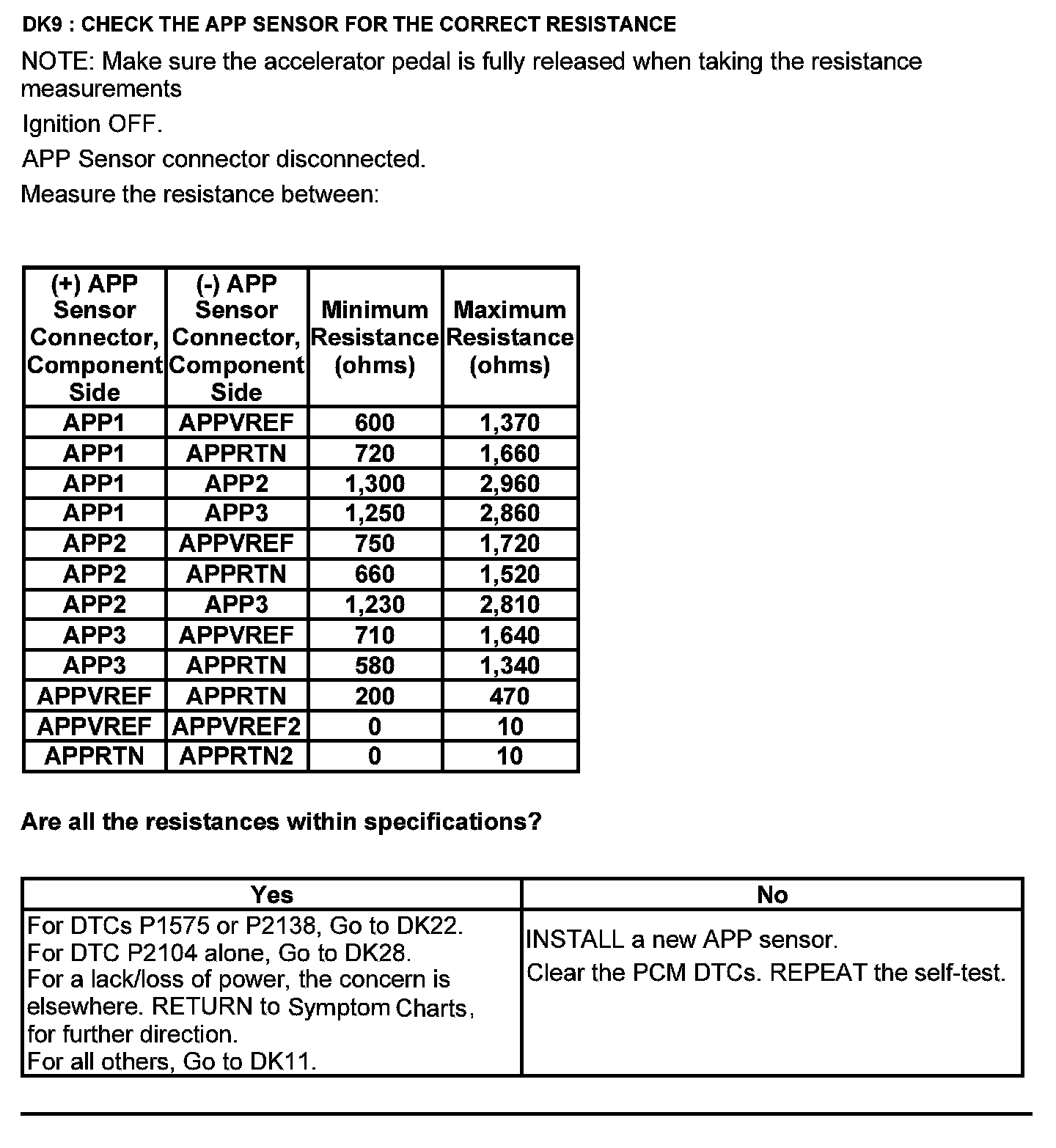

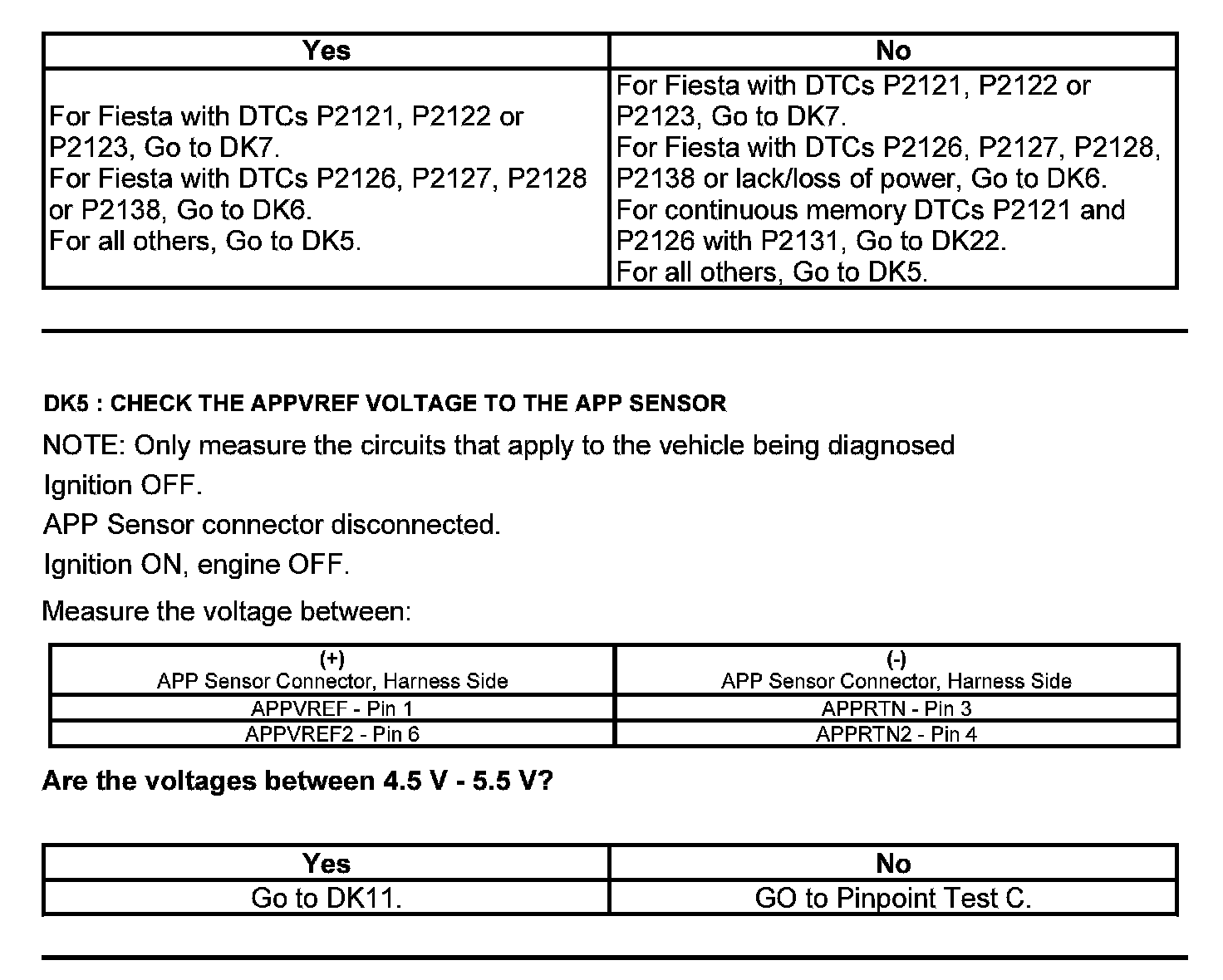

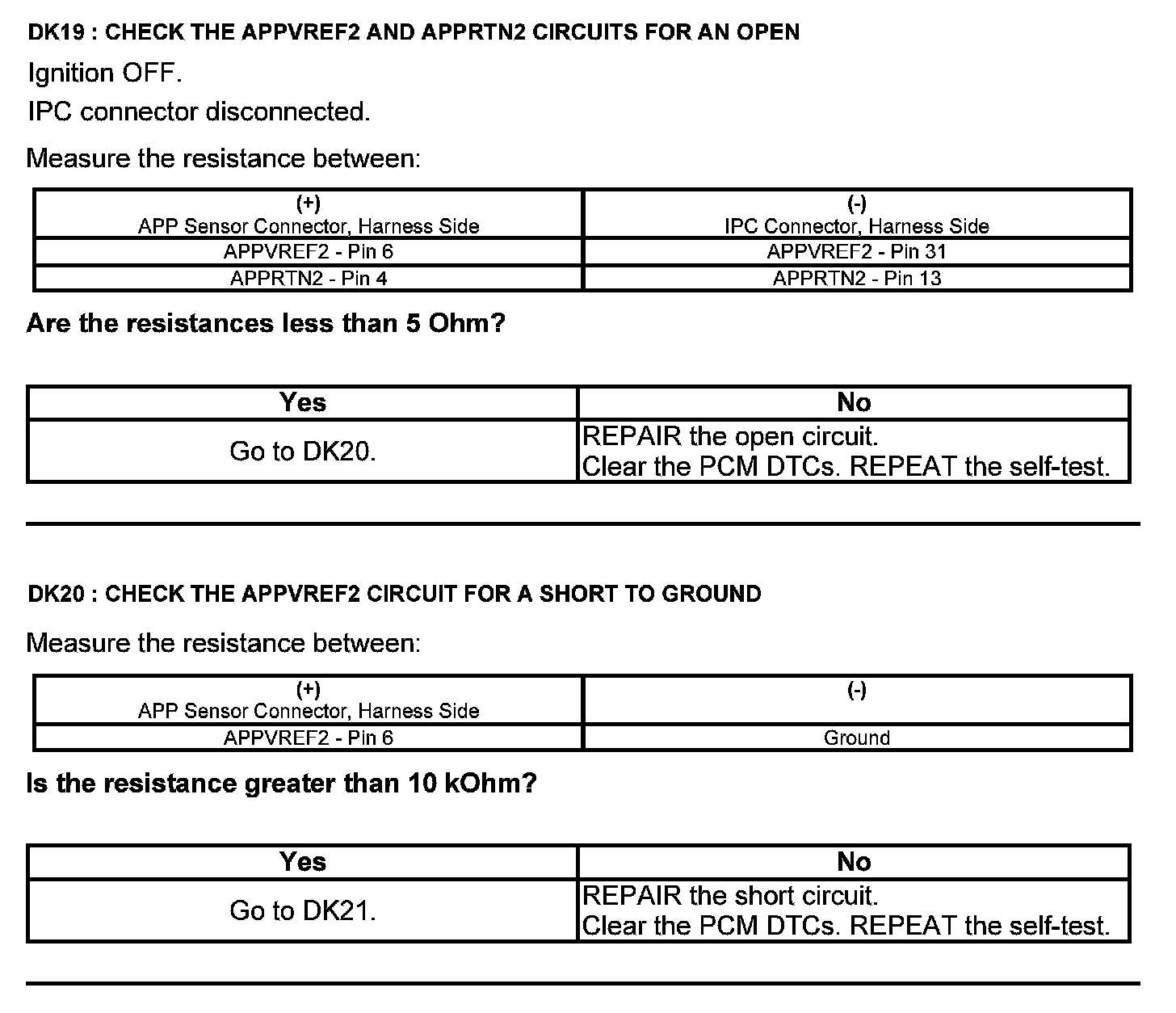

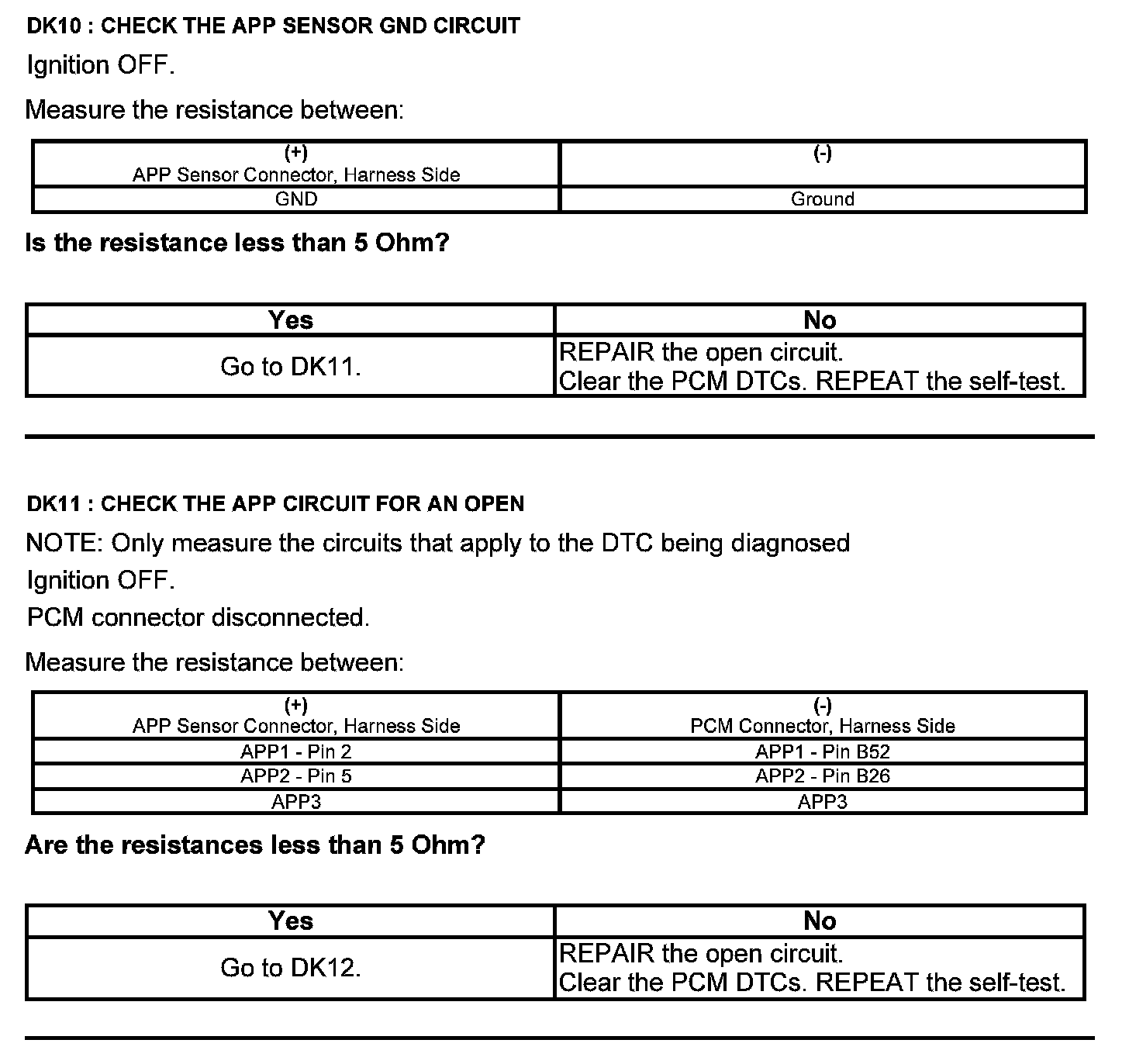

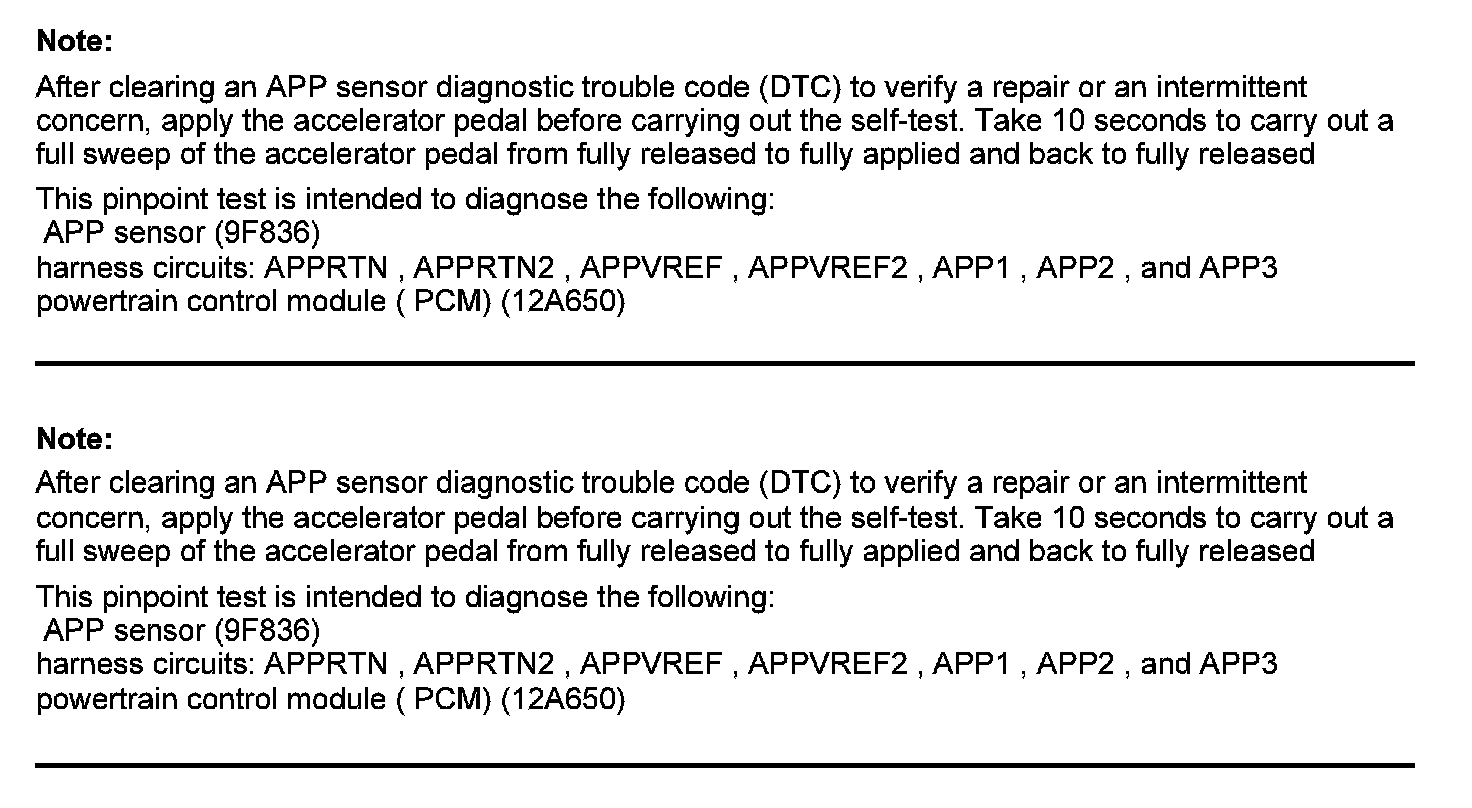

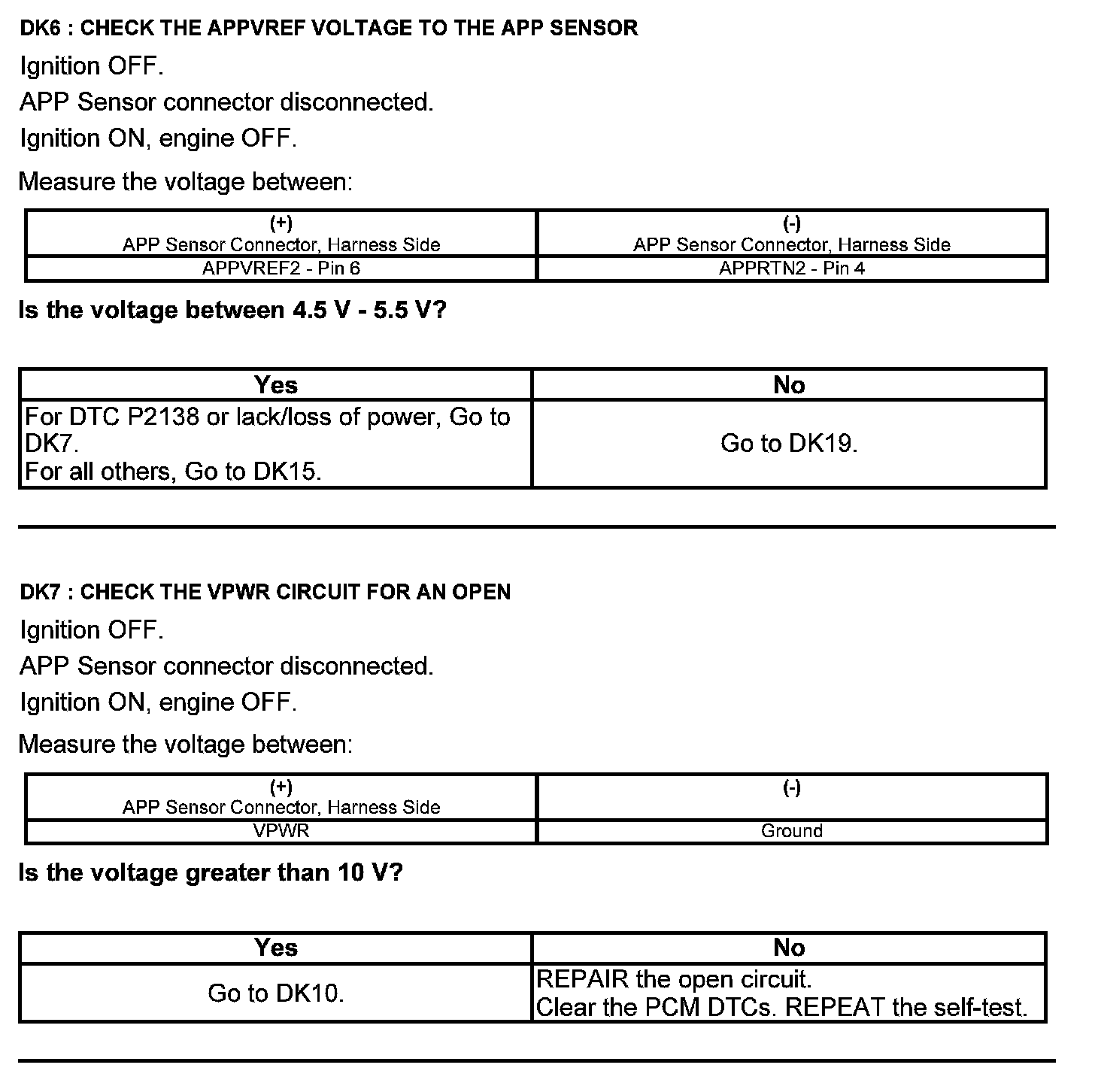

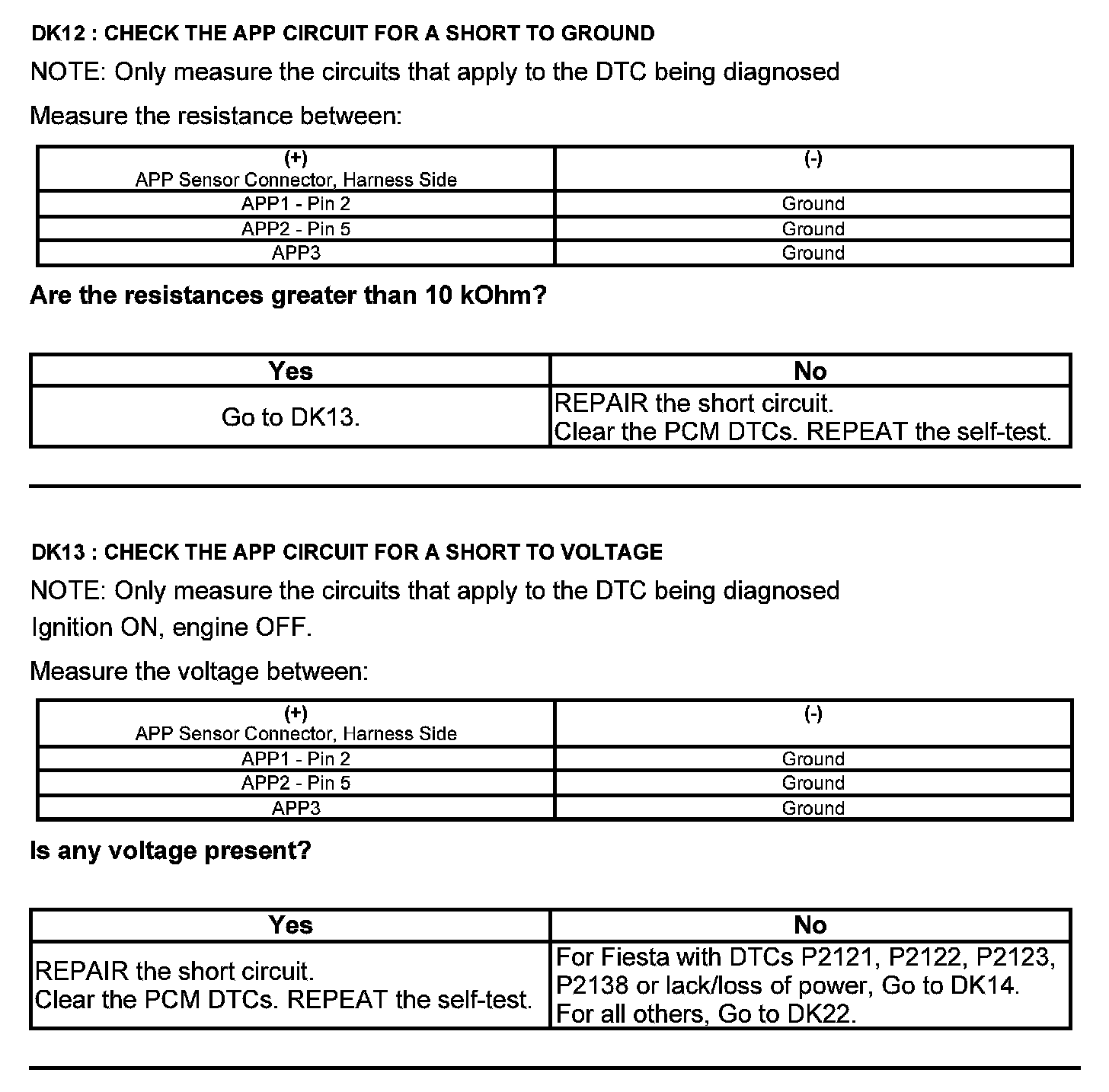

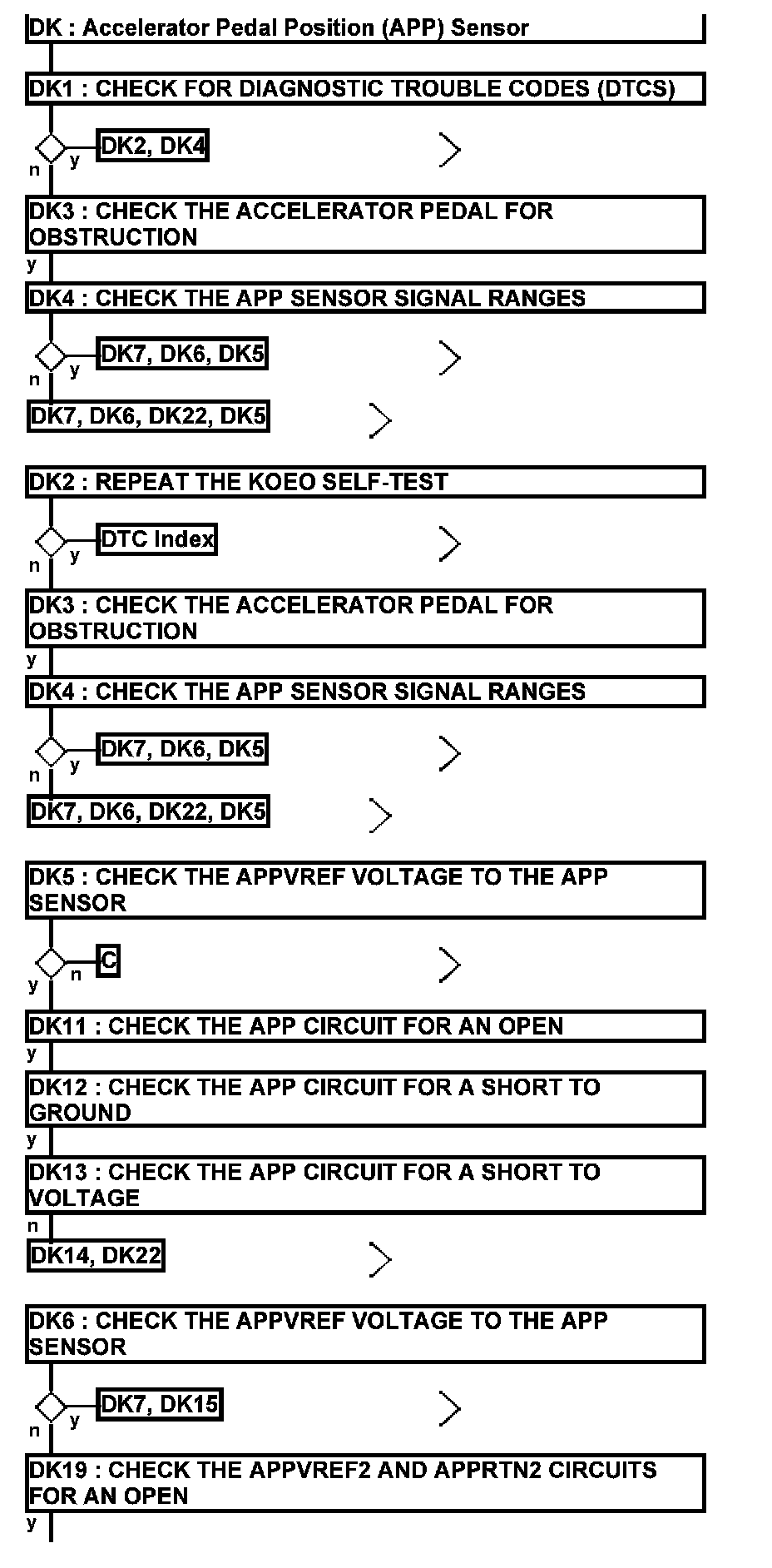

Test DK: Accelerator Pedal Position (APP) Sensor



Accelerator Pedal Position (APP) Sensor

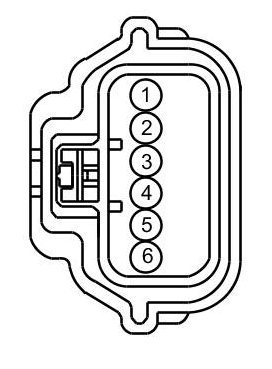

Accelerator Pedal Position (APP) Sensor Connector




Harness Side






Instrument Panel Cluster (IPC) Connector




Harness Side

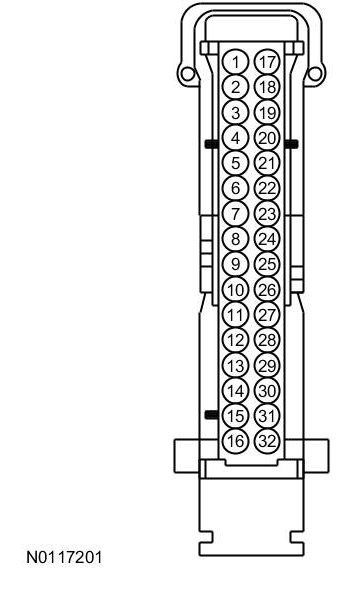

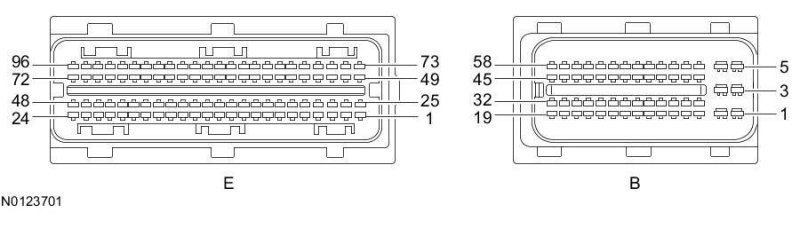

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.




Harness Side
