Fuel Cut-Out Switch: Service and Repair




Inertia Fuel Shutoff (IFS) Switch









Removal and Installation

1. Remove the RF lower cowl trim panel.

2. Disconnect the Inertia Fuel Shutoff (IFS) switch electrical connector.

3. NOTICE: Do not overtighten the fasteners or damage to the switch will occur.

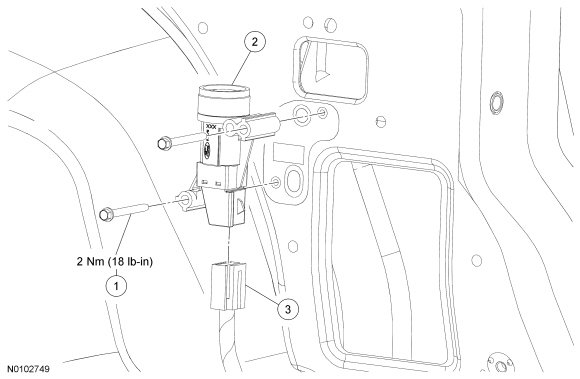

Remove the 2 bolts and the IFS (Inertia Fuel Shutoff) switch.
- To install, tighten to 2 Nm (18 lb-in).


4. To install, reverse the removal procedure.
- If necessary, reset the IFS (Inertia Fuel Shutoff) switch after the installation has been completed.
