Capacity Specifications




Item PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D
Specification WSH-M1C231-B
Fill Capacity 180 ml (6.09 fl oz)

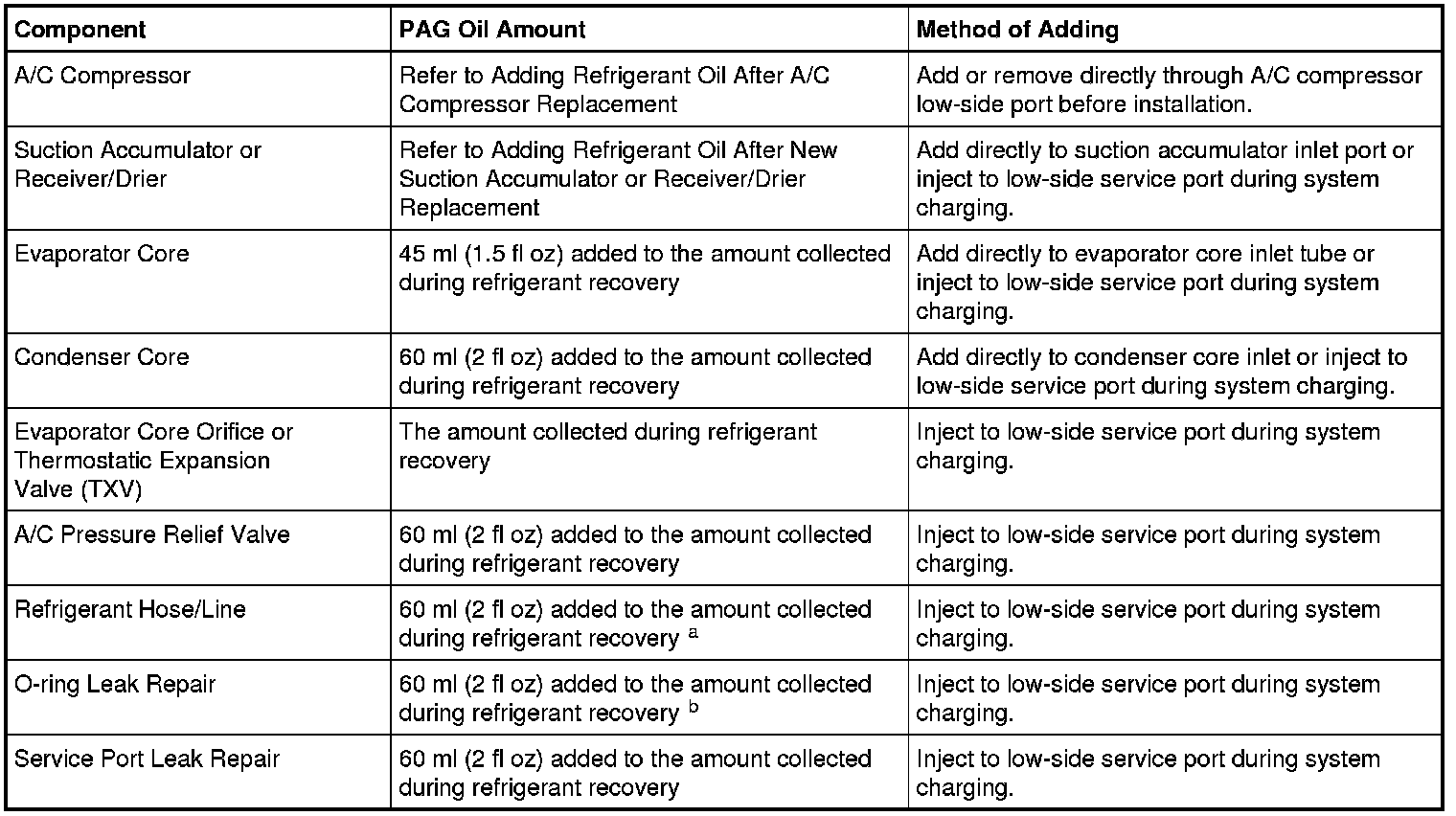

a If an excessive amount of PAG oil is lost due to a hose rupture/separation or other damage, the total system PAG oil capacity must be added.
b The amount specified may be used for one or multiple O-ring leak repairs. Do not multiply the PAG oil amount by the number of O-ring leaks being repaired.
