Climate Control Assembly




Climate Control Assembly









Removal and Installation

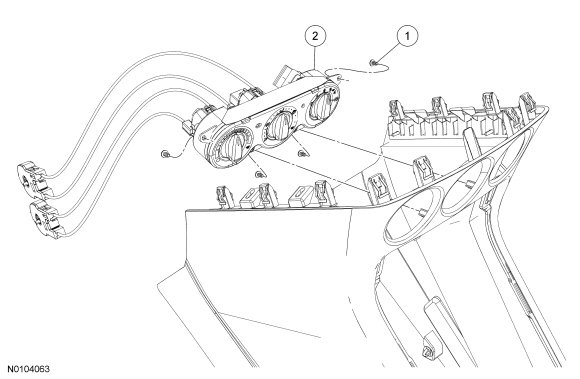

1. Remove the floor console.

2. Remove the 4 climate control assembly screws.

3. Remove the climate control assembly.

4. To install, reverse the removal procedure.
