Blower Motor - Center Console

Blower Motor - Center Console

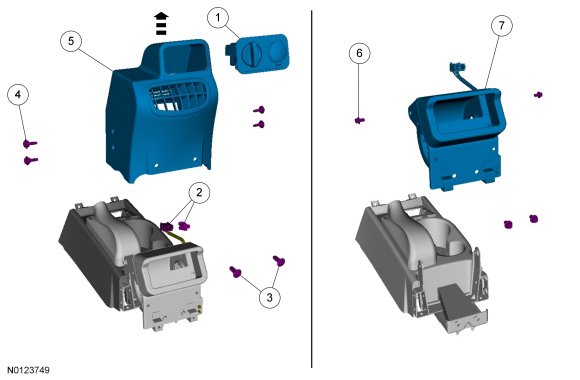

Removal and Installation

1. Remove the center console blower motor switch panel.
1. Insert a precision-type screwdriver into the hole in the center console blower motor switch panel to release the retaining clip.

2. Rotate the top of the blower motor switch panel rearward and remove the blower motor switch panel.

- Disconnect the 2 center console blower motor switch panel electrical connectors.






2. Remove the 2 center console rear panel pin-type retainers.

3. Remove the 4 center console rear panel bolts.

4. Remove the center console rear panel.

5. Remove the 4 center console blower motor bracket bolts.

6. Remove the center console blower motor.

7. To install, reverse the removal procedure.
