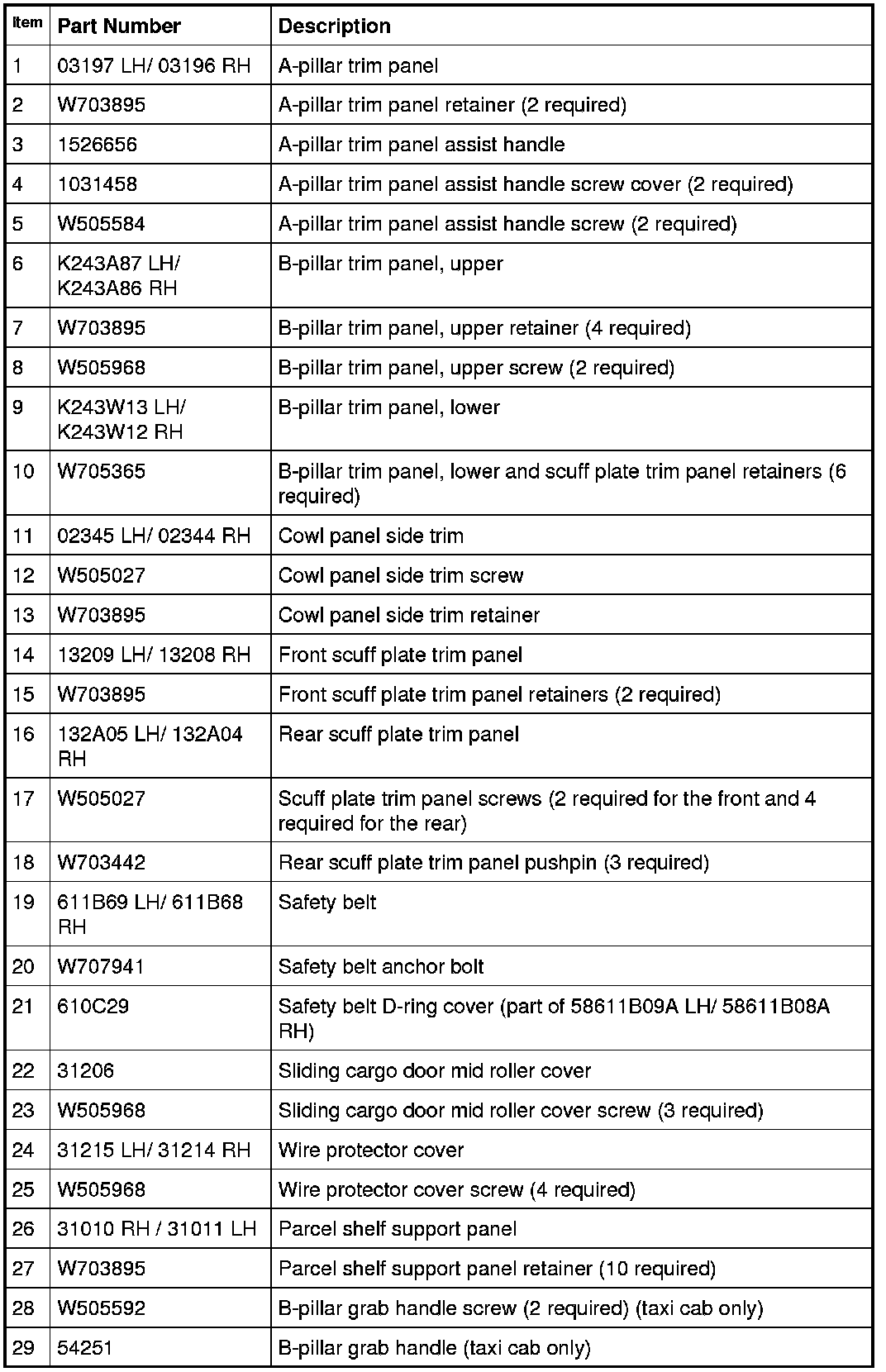

Interior Trim - Exploded View




Interior Trim - Exploded View

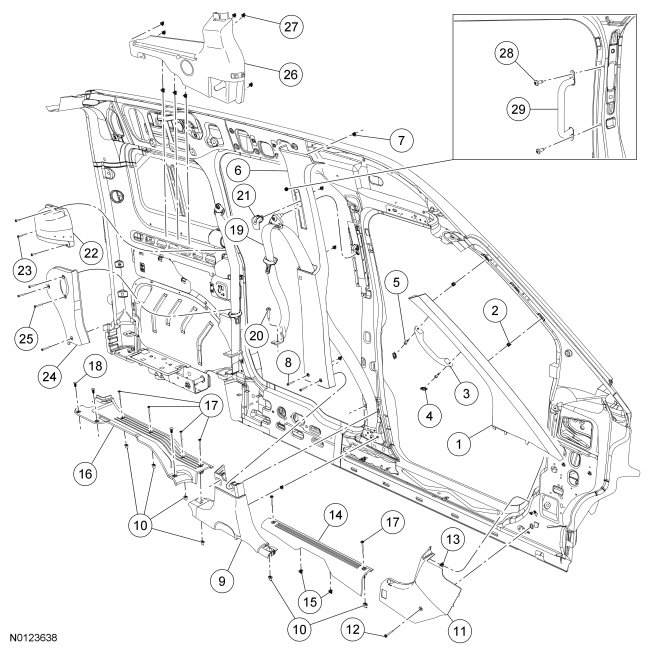

Side Trim

NOTE: LH shown, RH similar.

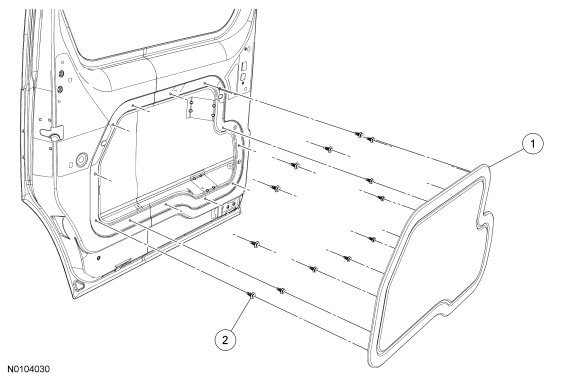

Sliding Cargo Door Trim

NOTE: LH shown, RH similar.

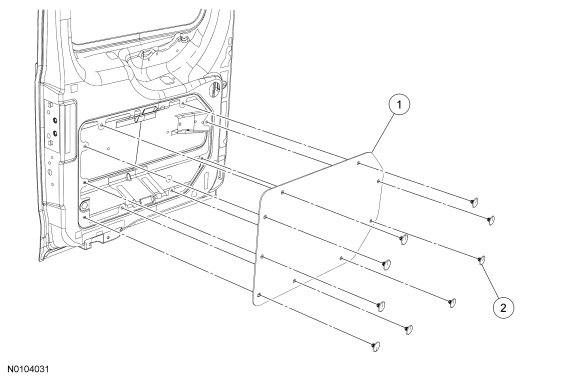

Rear Cargo Door Trim

NOTE: LH shown, RH similar.
