Rear Bumper: Service and Repair

Bumper - Rear

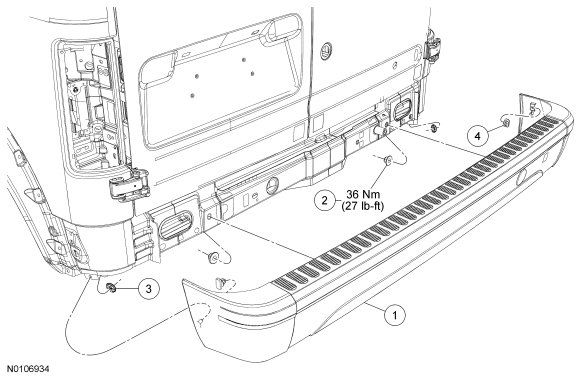

Removal and Installation

1. Remove the rear bumper side cover star washers (1 each side).

2. Pull outward on the rear bumper side covers to release the pin-type retainers from the body.

3. Remove the rear bumper nuts.
- To install, tighten to 36 Nm (27 lb-ft).


4. Remove the rear bumper.
- If equipped, disconnect the rear parking aid sensor electrical connectors.


5. To install, reverse the removal procedure.
