Front Bumper: Service and Repair

Bumper - Front

Removal and Installation

1. Remove the front bumper cover. For additional information, refer to Bumper Cover- Front Service and Repair.

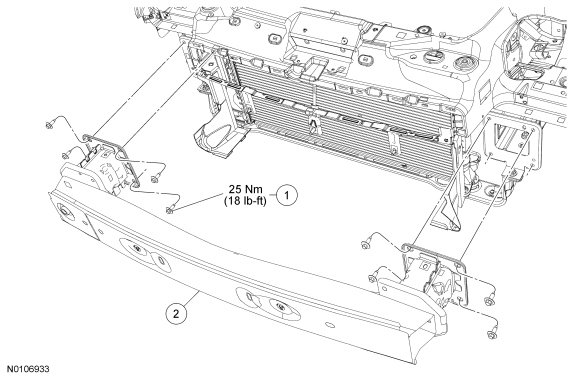

2. Remove the front bumper bolts.
- To install, tighten to 25 Nm (18 lb-ft).

3. Pull outward to remove the front bumper.

4. To install, reverse the removal procedure.
