Safety Belt Buckle - Front: Notes

NOTE: LH shown in illustration, RH similar.

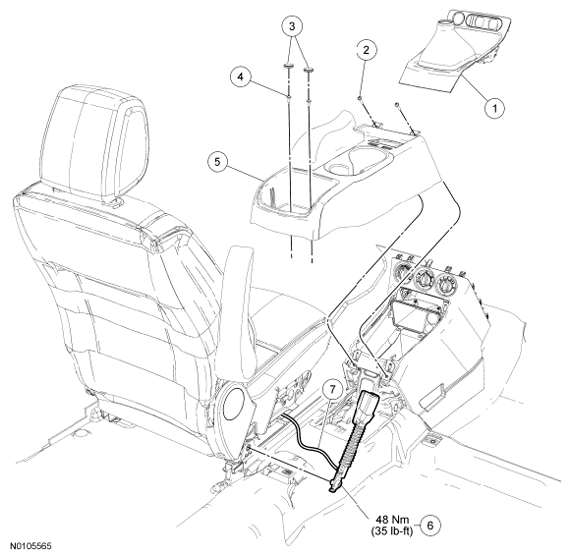

Fig 1: Exploded View Of Front Safety Belt Buckle With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	044D90	Selector lever trim panel
2	W502663	Screw (2 required)
3	672A40	Screw covers
4	W705247	Screw (2 required)
5	04567	Rear floor console section
6	61202	Safety belt buckle and bolt
7	-	Safety belt buckle switch wiring harness (part of 61202)
