OEM Ground Distribution: Grounds: G203

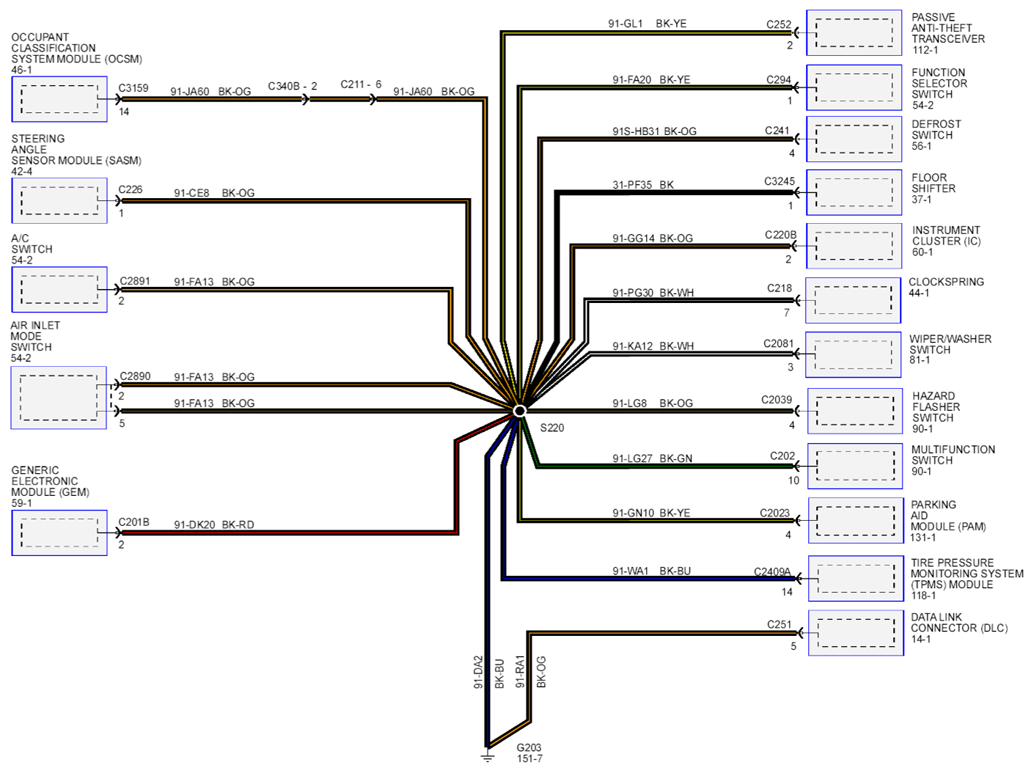

Fig 1: Grounds Circuit Diagram - G203
G07909295Courtesy of FORD MOTOR CO.
