Stability Control Sensor Cluster: Notes
SPECIAL TOOLS
|
|
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
Courtesy of FORD MOTOR CO.

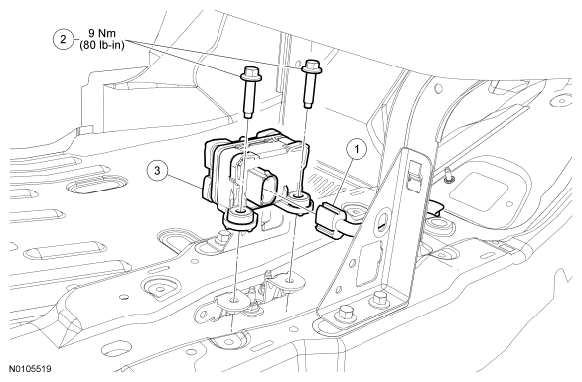

| Item |
Part Number |
Description |
| 1 |
- |
Stability control sensor cluster electrical connector (part of 14401) |
| 2 |
W500215 |
Stability control sensor cluster bolts (2 required) |
| 3 |
14B296 |
Stability control sensor cluster |
