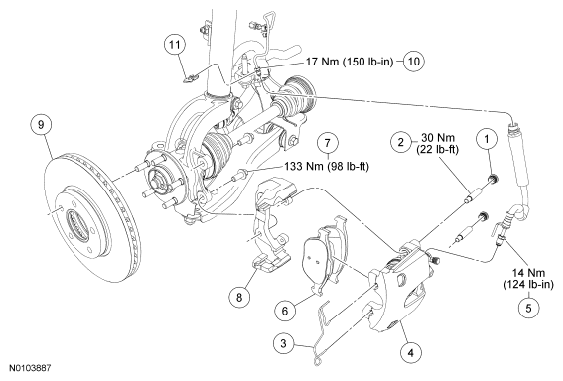

Front Disc Brake System - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 2K046 | Brake caliper guide pin bolt cover (2 required) |
| 2 | 2L527 | Brake caliper guide pin bolt (2 required) |
| 3 | 2A225 | Brake pad anti-rattle spring |
| 4 | 2B120 RH/2B121 LH | Brake caliper |
| 5 | 2078 | Brake flexible hose |
| 6 | 2001 | Brake pad (2 required) |
| 7 | W700672 | Brake caliper anchor plate bolt (2 required) |
| 8 | 2B292 | Brake caliper anchor plate |
| 9 | 1125 | Brake disc |
| 10 | - | Brake tube fitting (part of 2C292) |
| 11 | W700936 | Brake flexible hose retaining clip |
- For additional information, refer to the procedures in this information.
