Ignition Lock Cylinder: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Multi-Purpose Grease XG-4 and/or XL-5 |
ESB-M1C93-B |

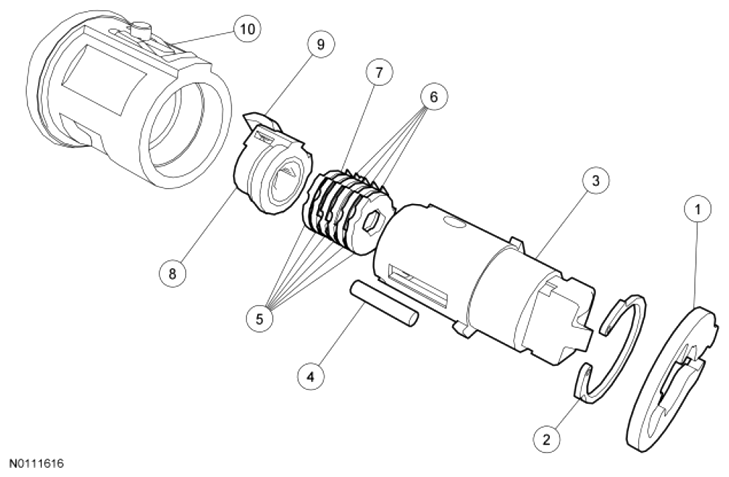

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Ignition lock cylinder security clip |
| 2 | - | Ignition lock cylinder barrel retaining clip |
| 3 | - | Ignition lock cylinder barrel |
| 4 | - | Ignition lock cylinder locking pin |
| 5 | - | Ignition lock cylinder tumblers (6 required) |
| 6 | - | Ignition lock cylinder spacers (4 required) |
| 7 | - | Ignition lock cylinder spring washer |
| 8 | - | Ignition lock cylinder barrel tumbler retainer |
| 9 | - | Ignition lock cylinder key hole shield |
| 10 | - | Ignition lock cylinder body |
