Passive Anti-Theft System (PATS) Transceiver: Notes

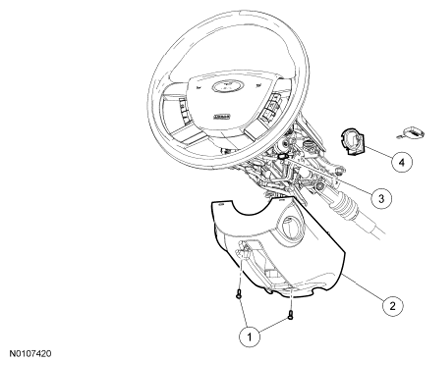

Fig 1: Identifying Passive Anti-Theft System (PATS) Transceiver Components
G06328348Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W700912 Steering column shroud screws (2 required)
2 3533 Steering column shroud (lower)
3 - Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401)
4 15607 PATS transceiver
