Module Communications Network

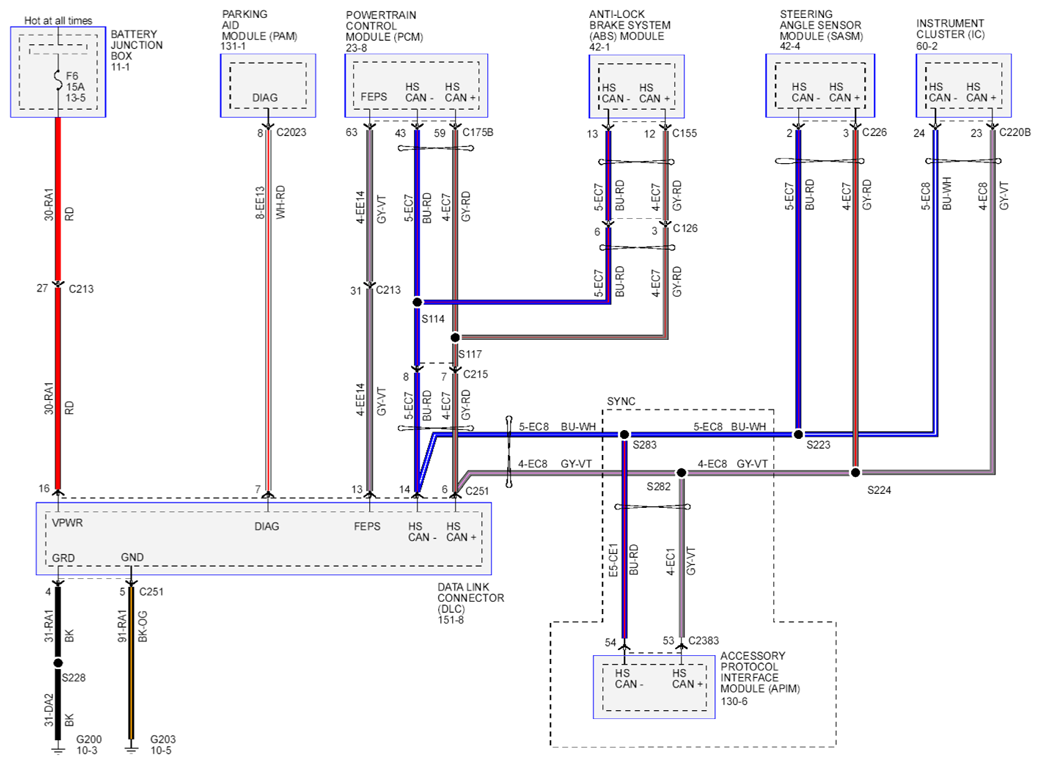

Fig 1: Module Communications Network Circuit Diagram (1 Of 2)
G07909339Courtesy of FORD MOTOR CO.

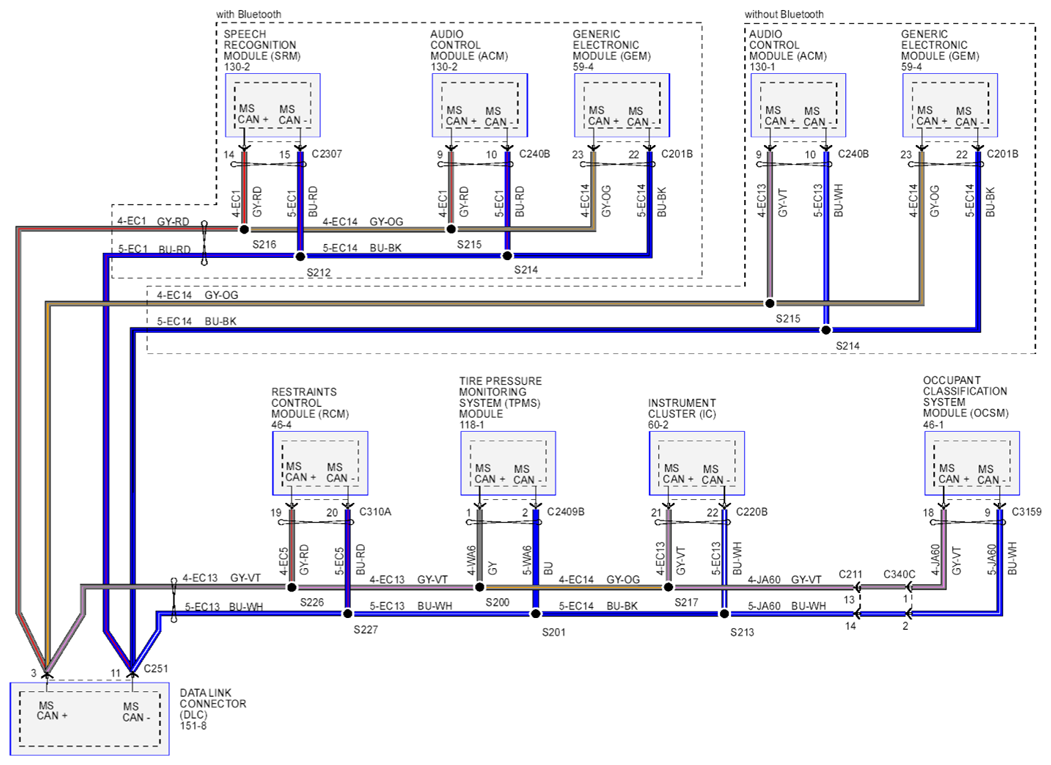

Fig 2: Module Communications Network Circuit Diagram (2 Of 2)
G07909340Courtesy of FORD MOTOR CO.
