Front End Accessory Drive (FEAD) - Exploded View

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

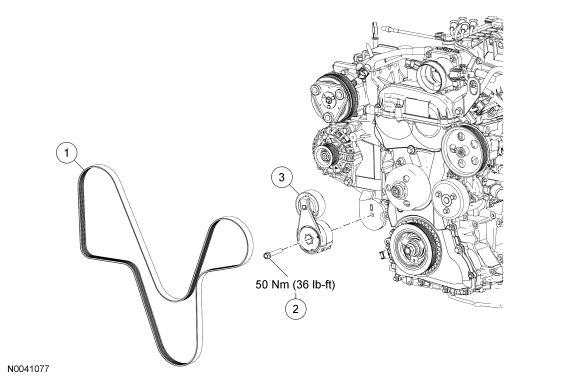

Fig 1: Front End Accessory Drive (FEAD) Exploded View - 2.3L with A/C With Torque Specifications
GF0009531Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8620 Accessory drive belt
2 - Accessory drive belt tensioner bolt (part of 6A228)
3 6A228 Accessory drive belt tensioner

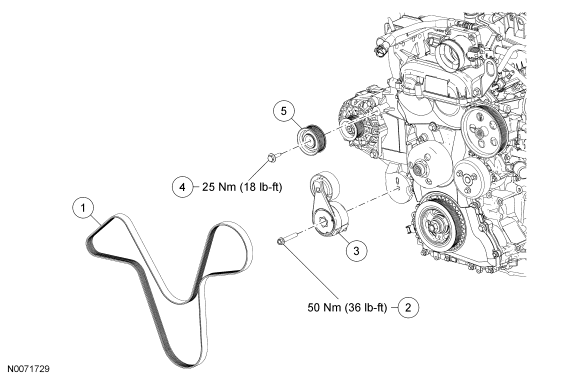

Fig 2: Front End Accessory Drive (FEAD) Exploded View - 2.3L without A/C With Torque Specifications
GF0009532Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8620 Accessory drive belt
2 - Accessory drive belt tensioner bolt (part of 6A228)
3 6A228 Accessory drive belt tensioner
4 - Accessory drive belt idler pulley bolt (part of 6C348)
5 6C348 Accessory drive belt idler pulley

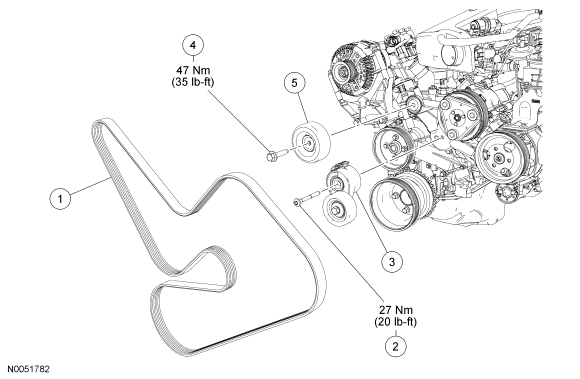

Fig 3: Front End Accessory Drive (FEAD) Exploded View - 3.0L With Torque Specifications
GF0009533Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8620 Accessory drive belt
2 - Accessory drive belt tensioner bolt (part of 6B209)
3 6B209 Accessory drive belt tensioner
4 - Accessory drive belt idler pulley bolt (part of 6C348)
5 6C348 Accessory drive belt idler pulley

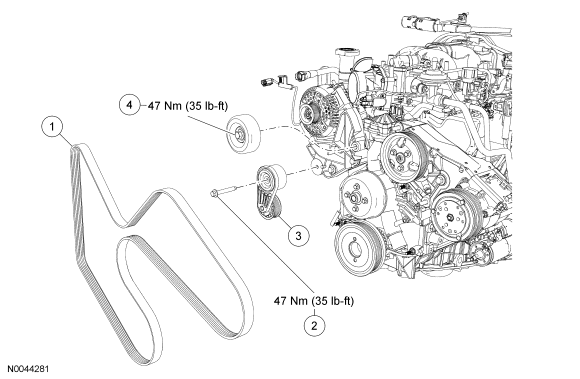

Fig 4: Front End Accessory Drive (FEAD) Exploded View - 4.0L With Torque Specifications
GF0009534Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8620 Accessory drive belt
2 W500326 Accessory drive belt tensioner bolt
3 6B209 Accessory drive belt tensioner
4 6C348 Accessory drive belt idler pulley and bolt
  1. For additional information, refer to the procedures in this article.
