6.8L Engine: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

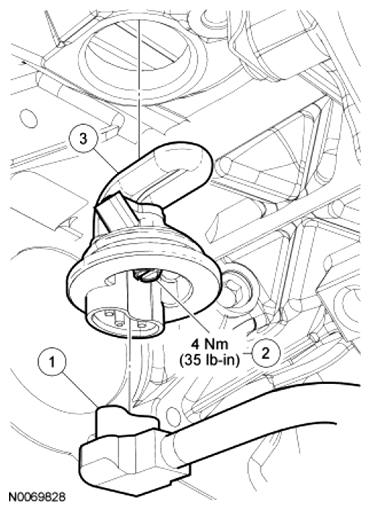

Fig 1: Block Heater And Electrical Connector With Torque Specifications (6.8L Engine)
G06780037Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Block heater electrical connector (part of 6B018)
2 - Block heater retaining screw (part of 6A051)
3 6A051 Block heater
