Seat Position Sensor
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

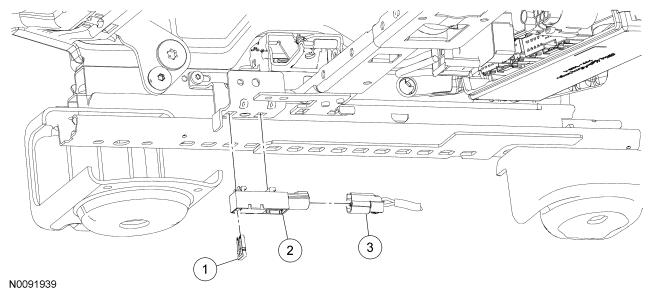

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Lock tab |
| 2 | 14B416 | Seat position sensor |
| 3 | - | Electrical connector (part of 14A699) |
- Remove the driver seat. For additional information, refer to Seat Removal and Installation in SEAT SYSTEM - SEATS .
- Disconnect the seat position sensor electrical connector.
- Remove the lock tab.
- Remove the seat position sensor.
- To install, reverse the removal procedure.
