Knock Sensor (KS): Material
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft Premium Gold Engine Coolant with Bittering Agent (bittered in US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) |
WSS-M97B51-A1 |

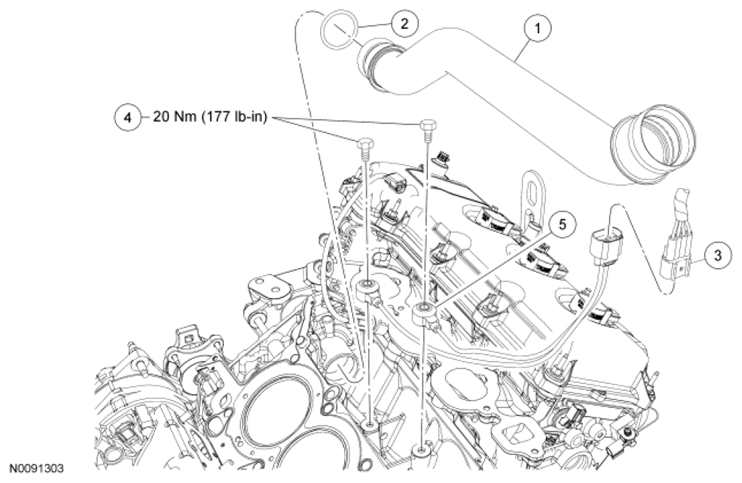

DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9N271 | Coolant tube |
| 2 | 8565 | O-ring seal |
| 3 | 14A464 | Knock Sensor (KS) electrical connector |
| 4 | W500310 | KS bolts (2 required) |
| 5 | 12A699 | KS |
