Power Door Lock Switch
>>

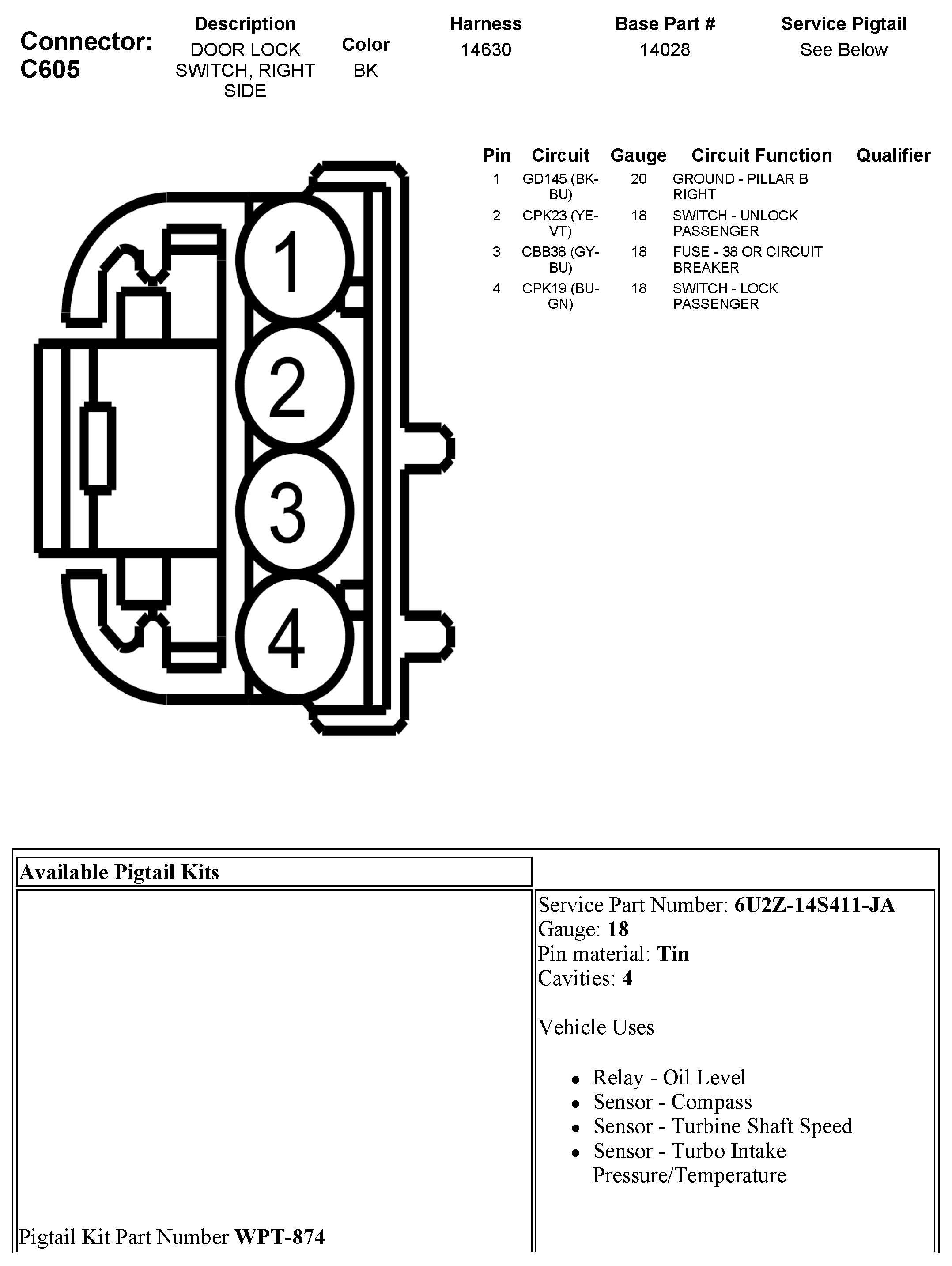

C605 Door Lock Switch, Right Side
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
C605 Door Lock Switch, Right Side
