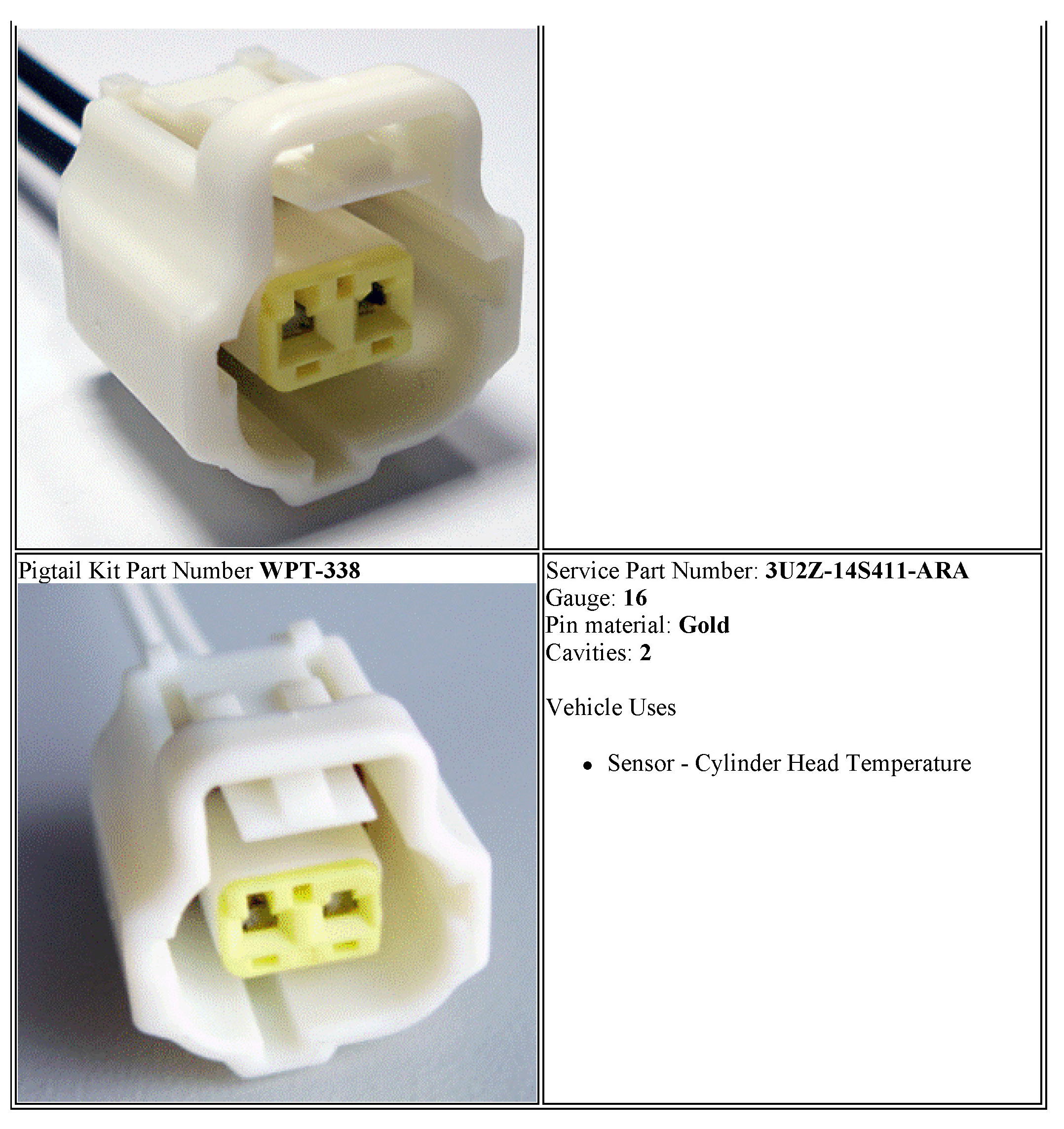

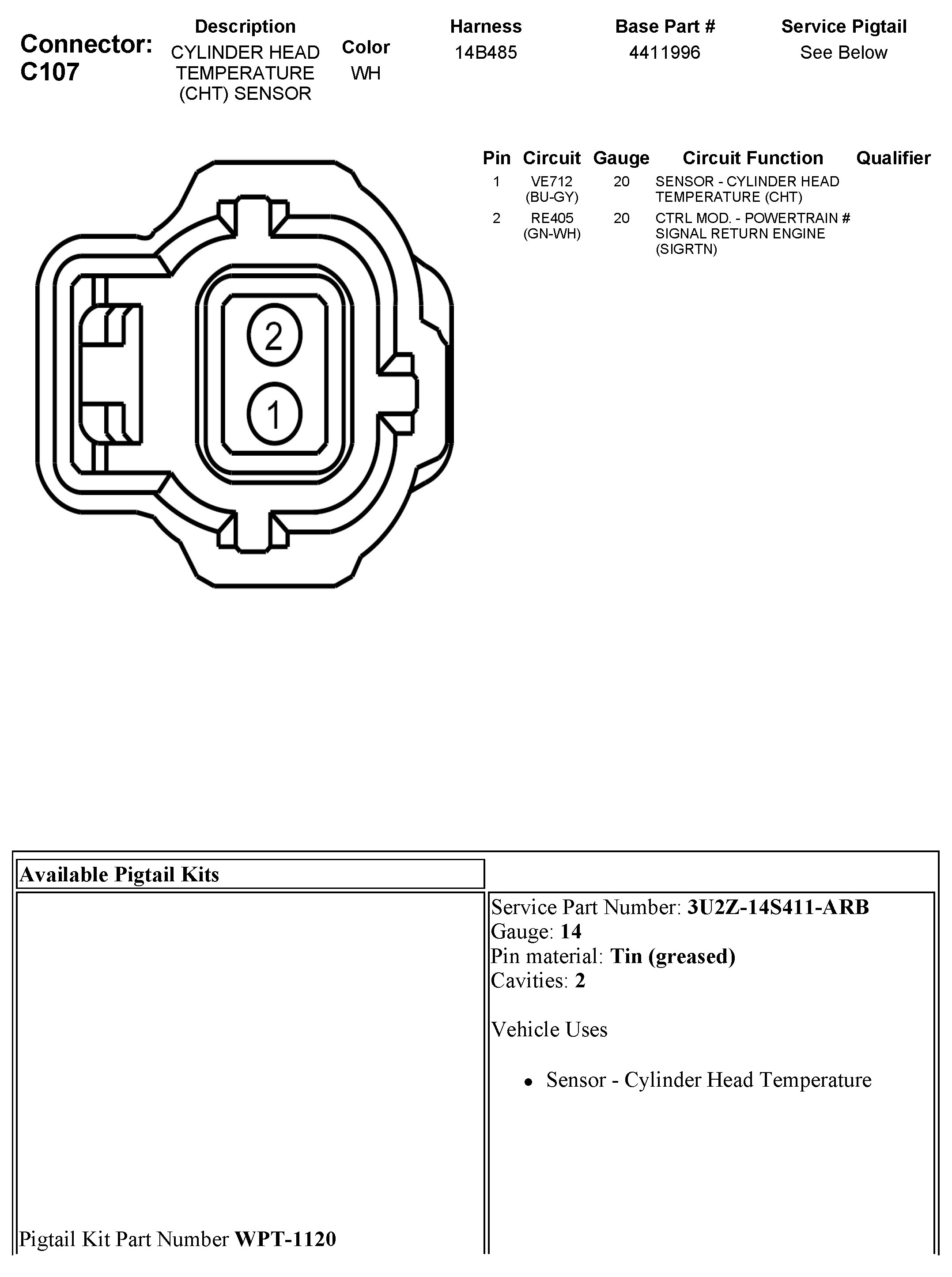

C107 Cylinder Head Temperature (CHT) Sensor
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
C107 Cylinder Head Temperature (CHT) Sensor
