Register - Driver Side




Register - Driver Side

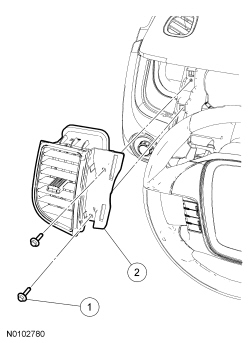

Removal and Installation

1. Remove the instrument cluster finish panel.

2. Remove the 2 LH register screws.

3. Remove the LH register.

4. To install, reverse the removal procedure.
