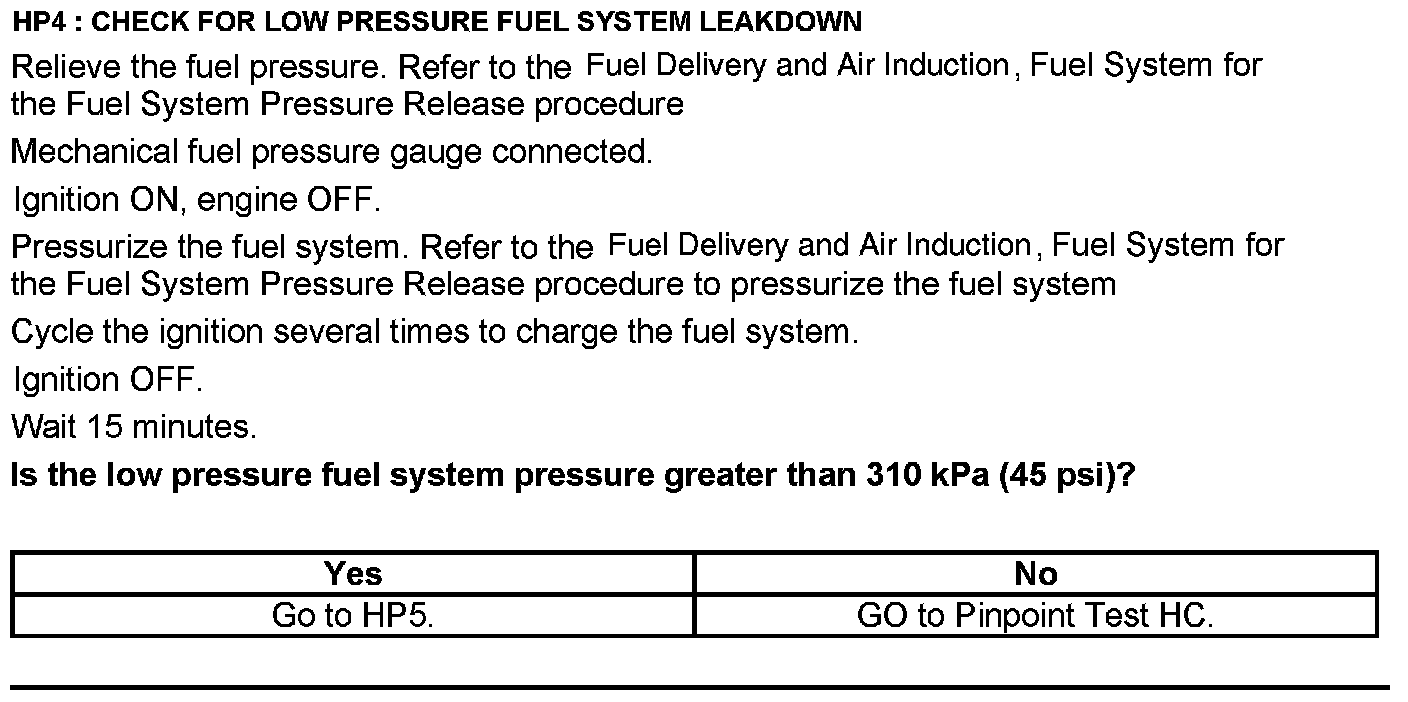

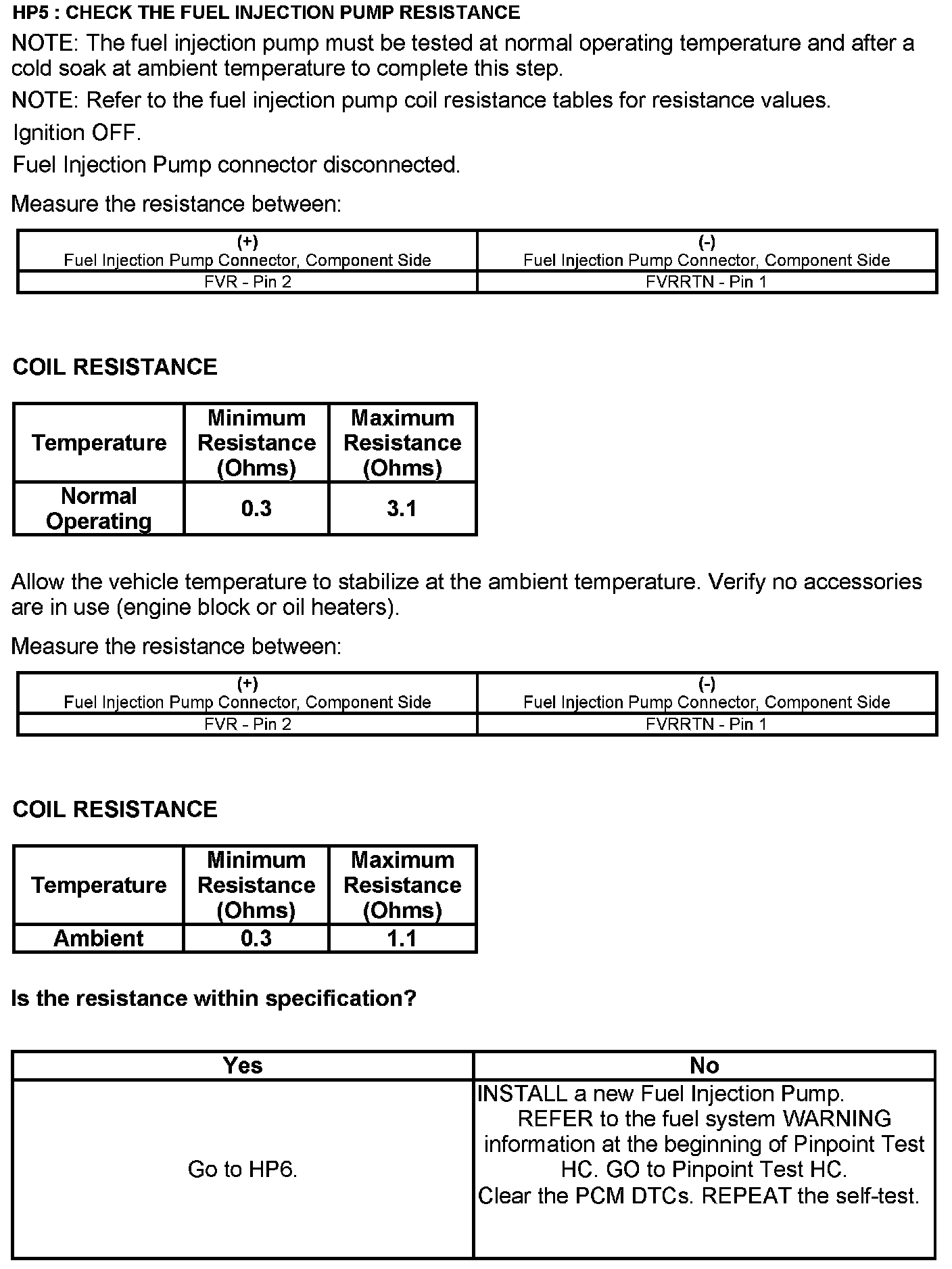

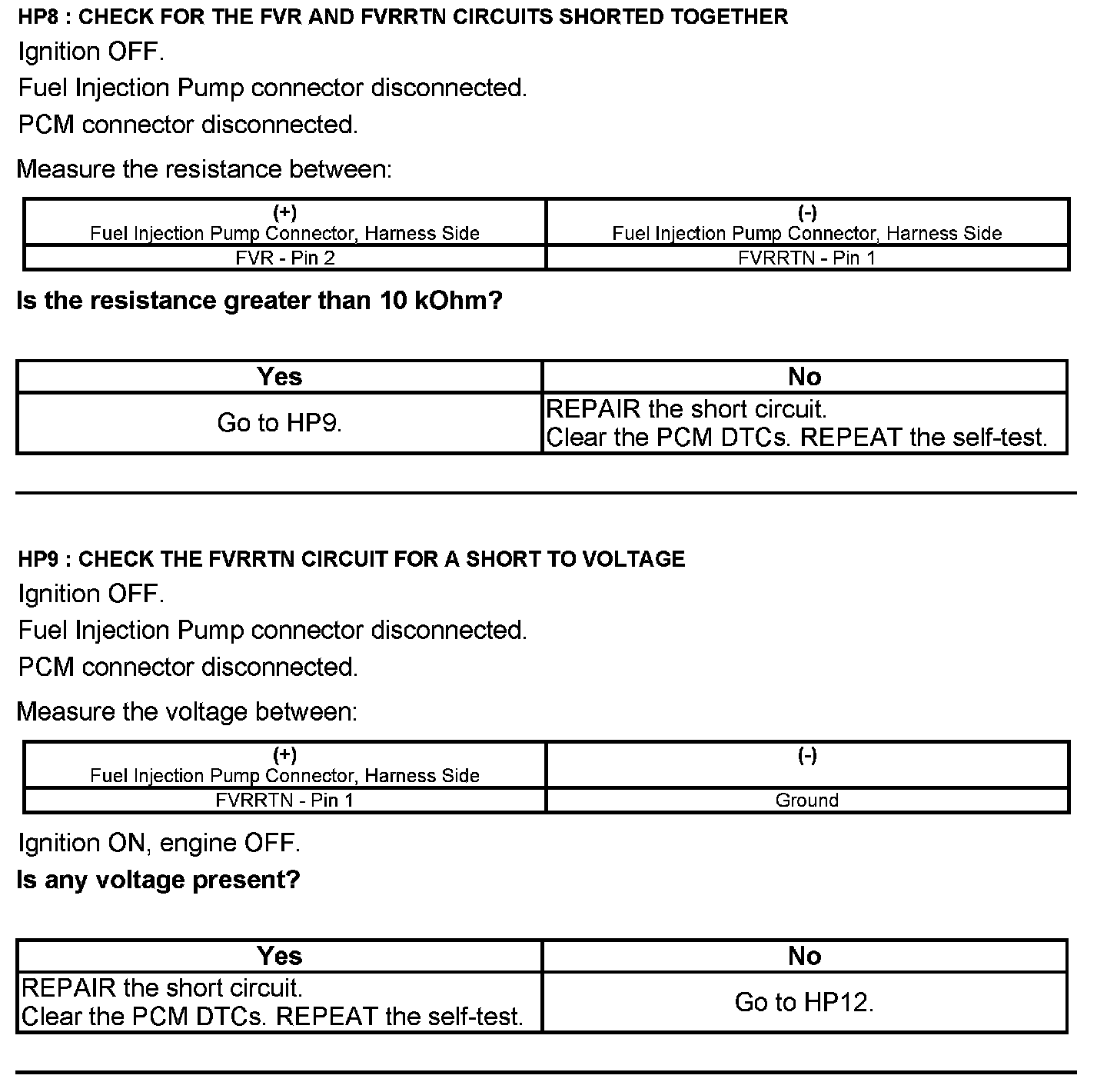

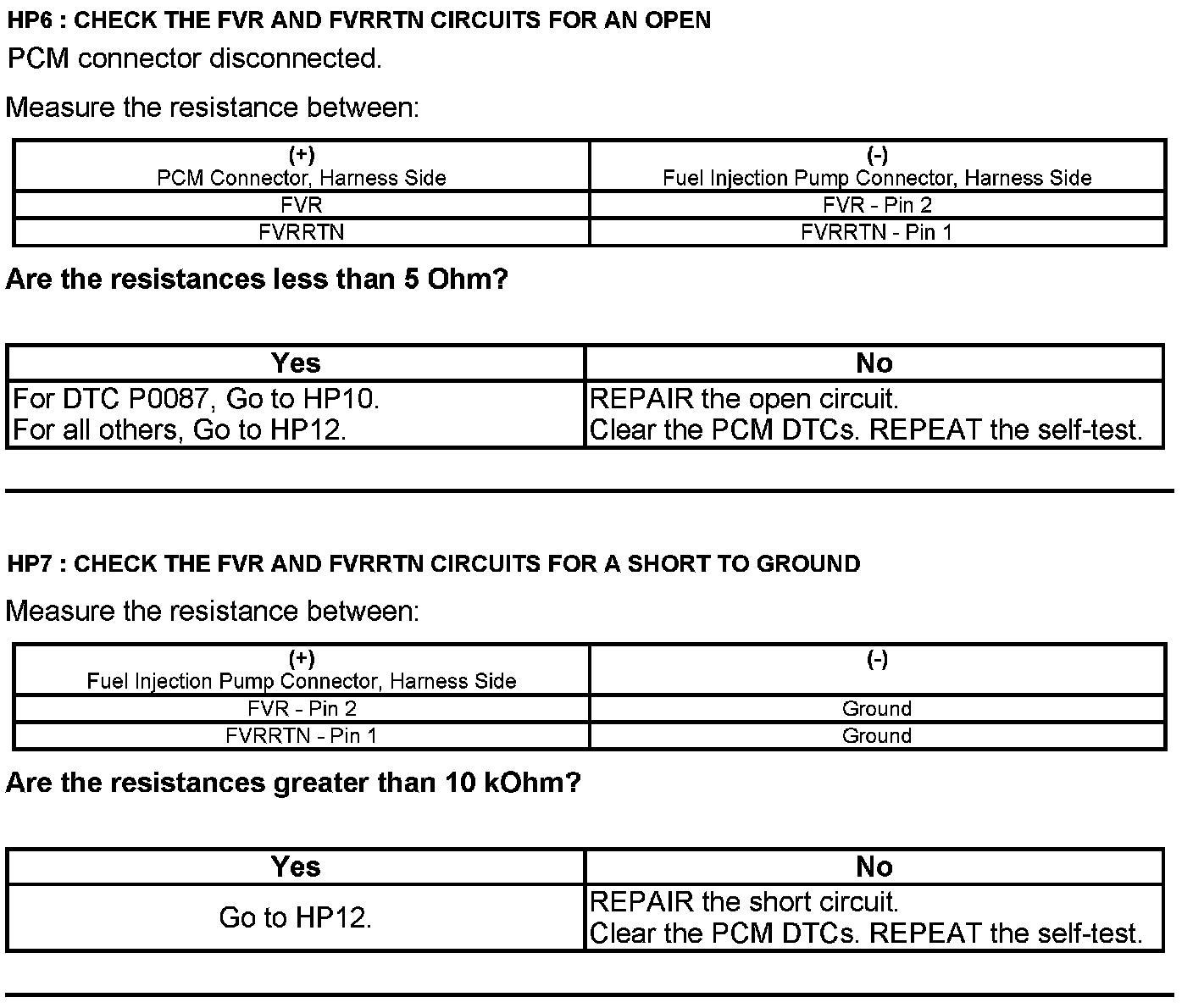

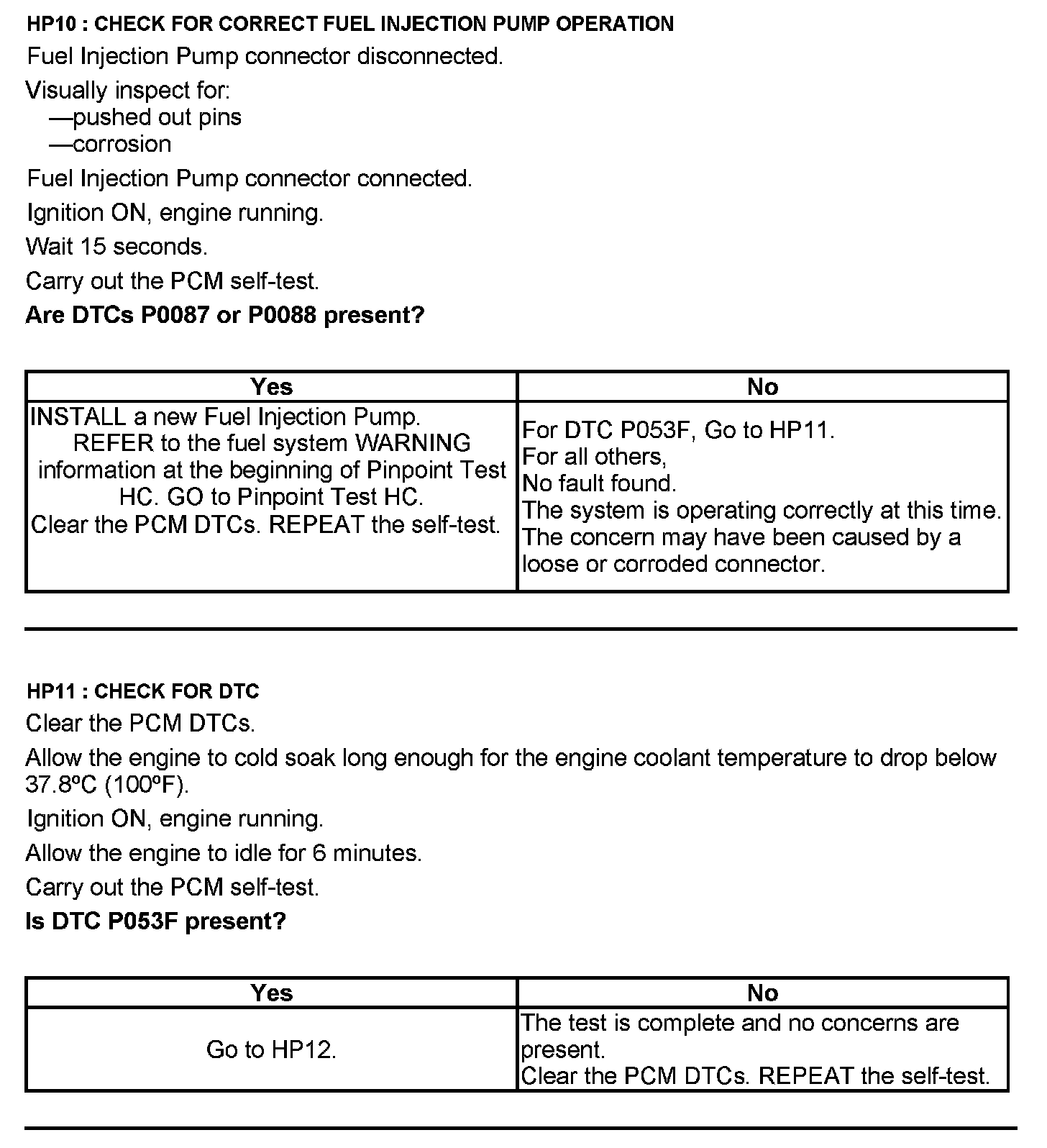

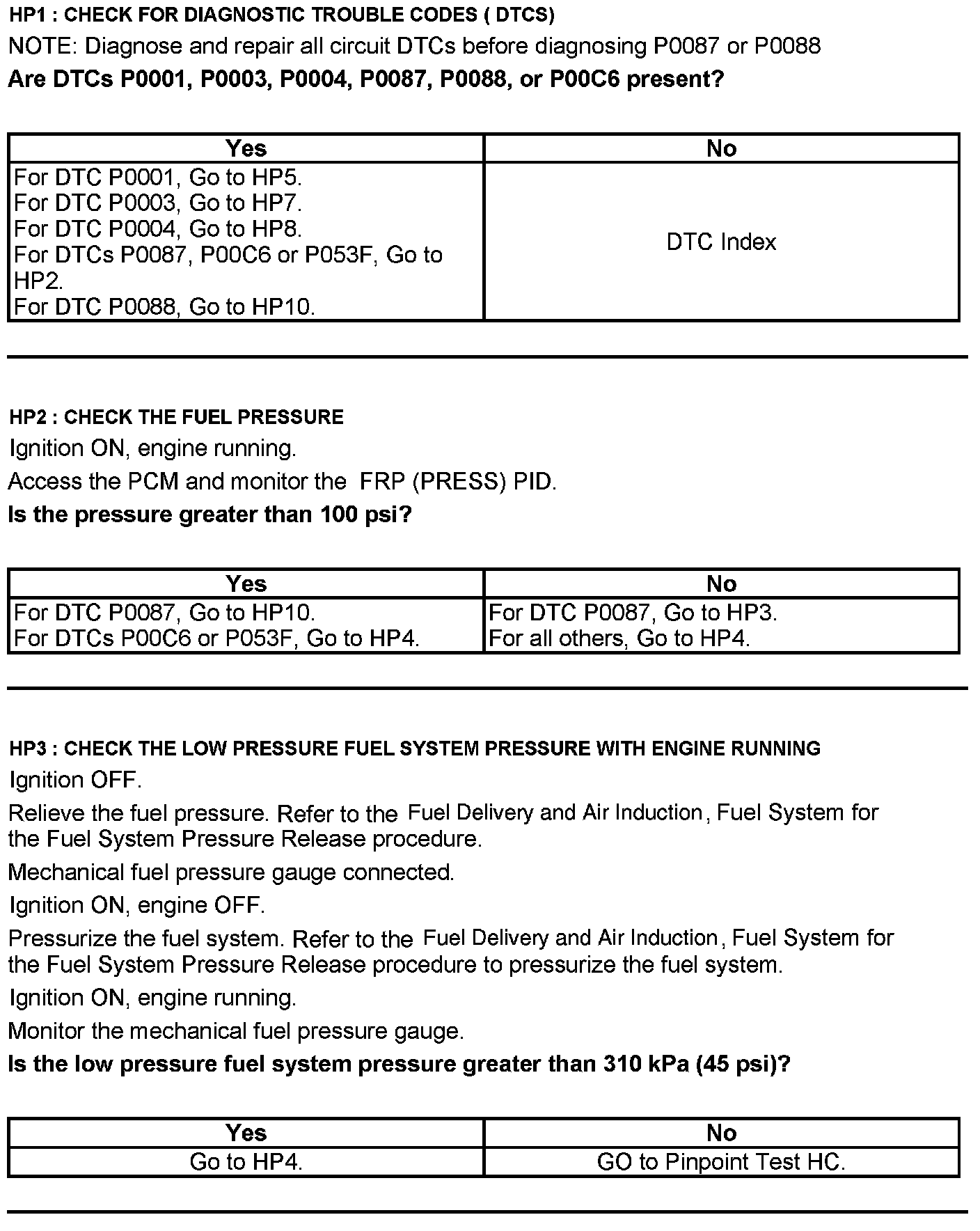

Test HP: High Pressure Fuel Delivery System

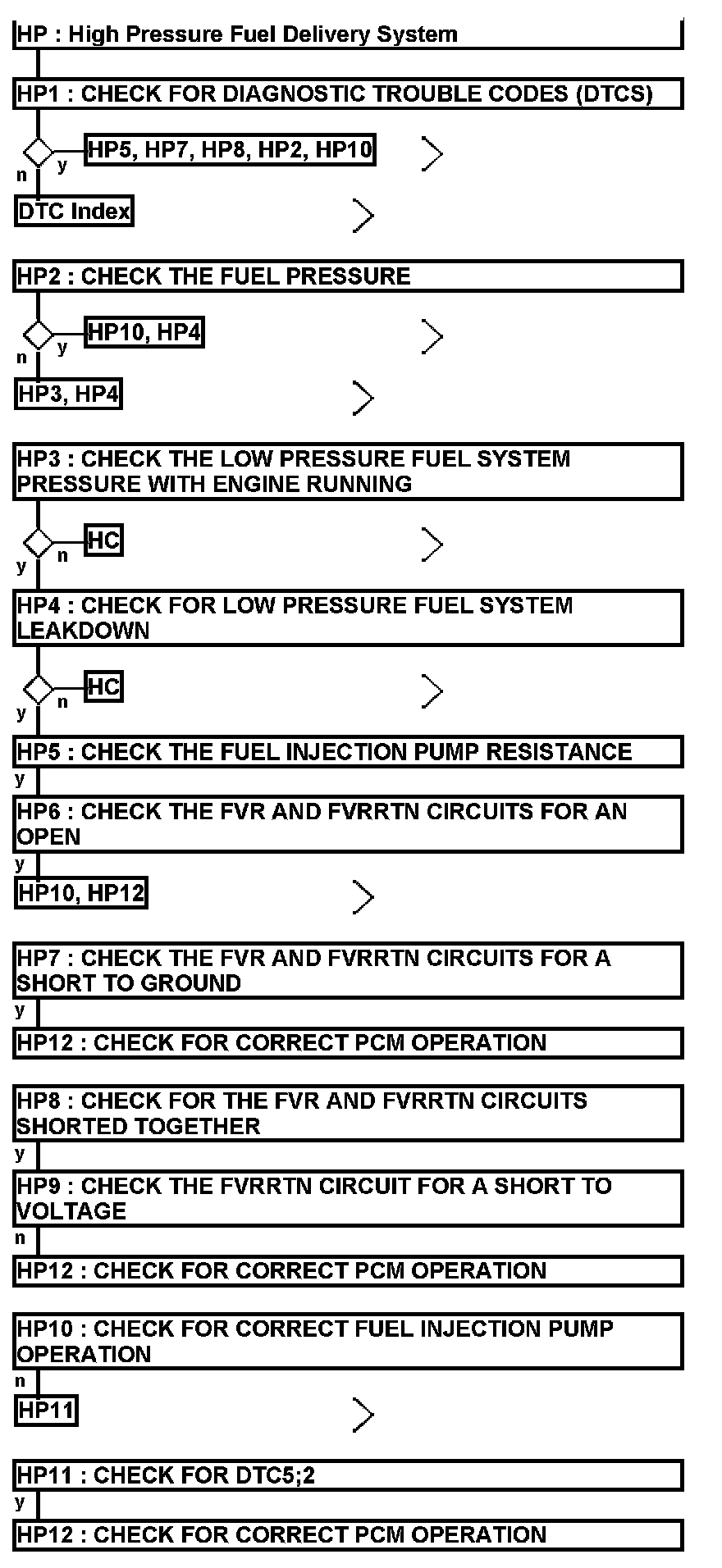

High Pressure Fuel Delivery System

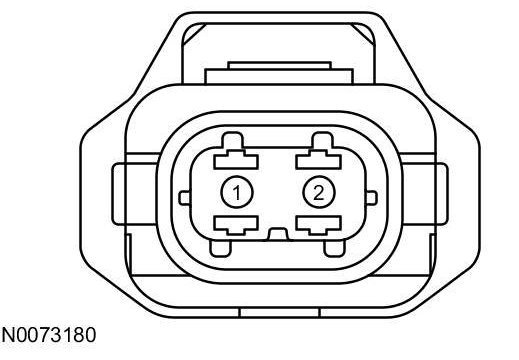

Fuel Injection Pump Connector





Harness Side

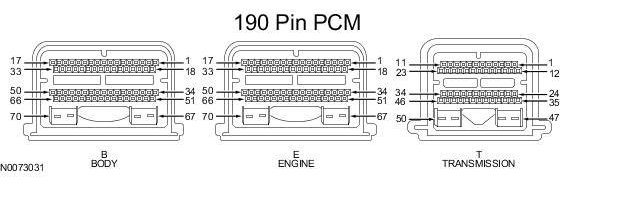

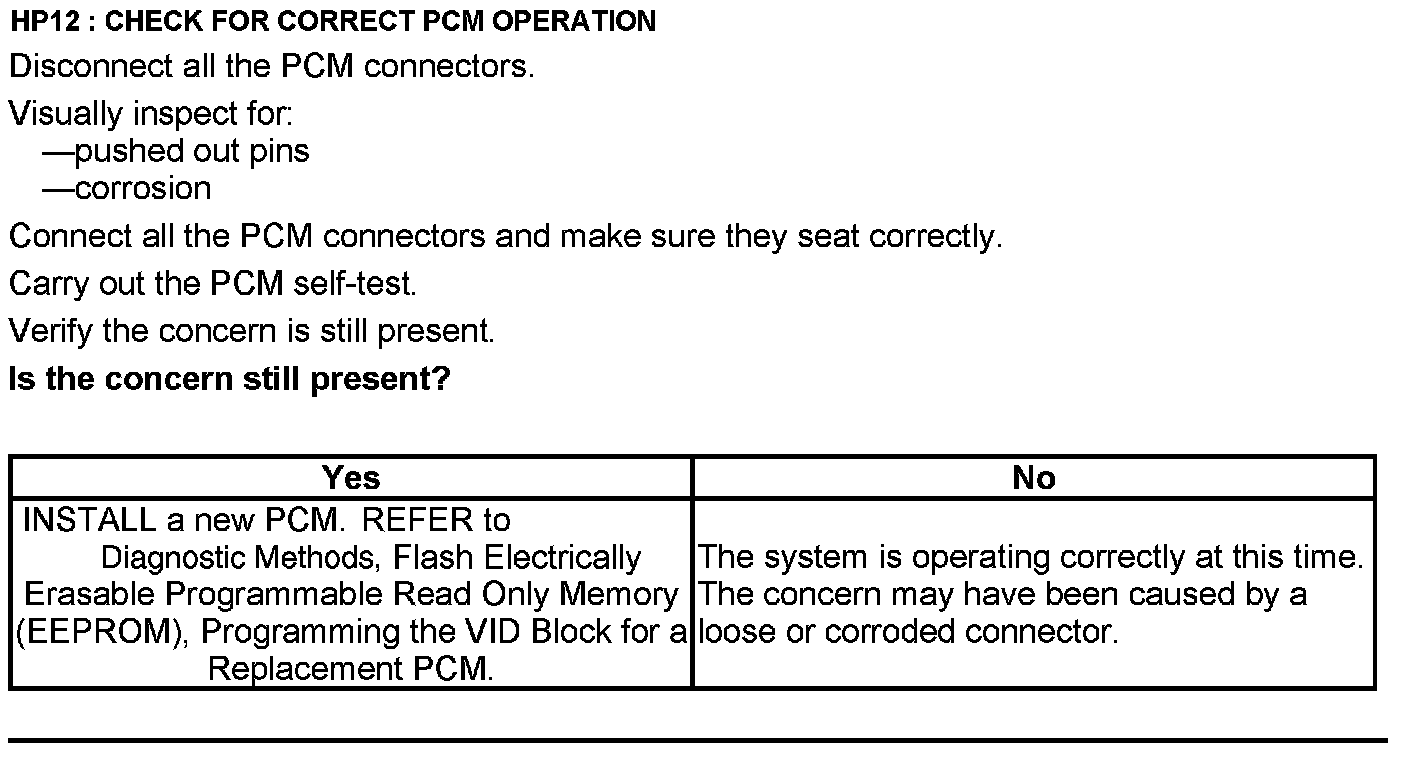

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
