July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Front End Accessory Drive (FEAD) - Exploded View

Front End Accessory Drive (FEAD) - Exploded View

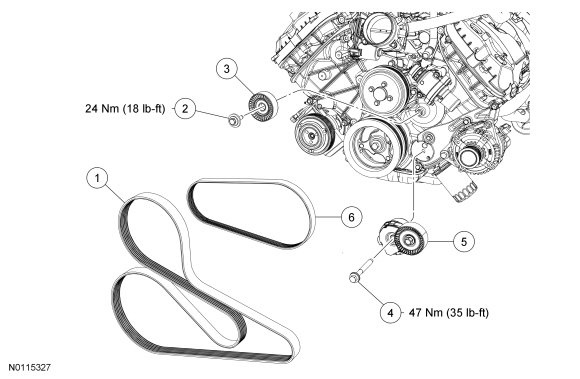

3.7L

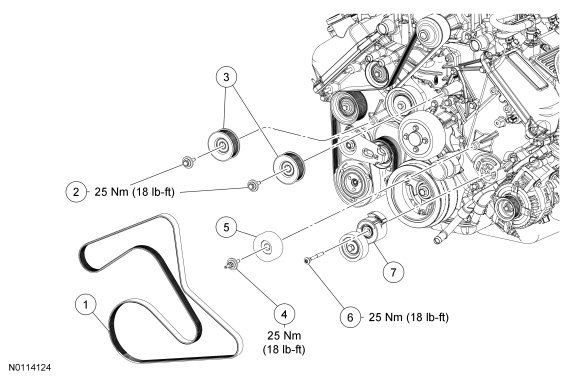

5.0L (4V)

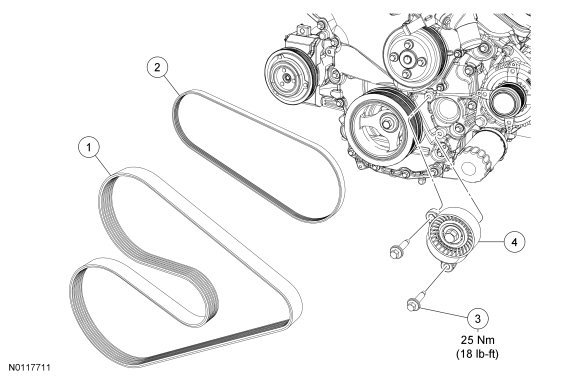

5.4L (4V)

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
