CMP Sensor
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

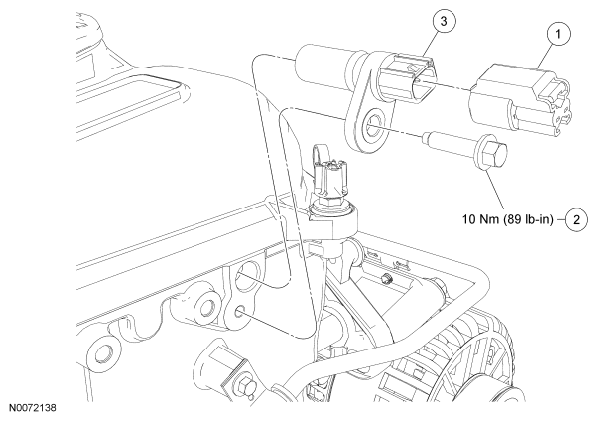

| Item |
Part Number |
Description |
| 1 |
- |
CMP sensor electrical connector |
| 2 |
N806155 |
CMP sensor bolt |
| 3 |
6B288 |
CMP sensor |
