Wheel Speed Sensor - Rear, All Wheel Drive (AWD): Notes

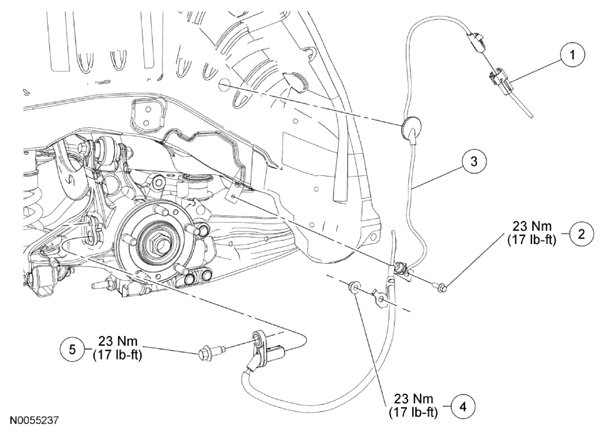

Fig 1: Exploded View Of Wheel Speed Sensor - Rear, All Wheel Drive (AWD) With Torque Specifications
G08019027Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Wheel speed sensor electrical connector (part of 14A227)
2 W505253 Wheel speed sensor harness bolt
3 2C186 RH/2C187 LH Wheel speed sensor
4 W520102 Wheel speed sensor harness nut
5 W500222 Wheel speed sensor bolt
