Antitheft and Alarm Systems: Service and Repair

Anti-Theft Inhibit Switch - Luggage Compartment









Removal and Installation

1. Remove the luggage compartment lid lock cylinder.

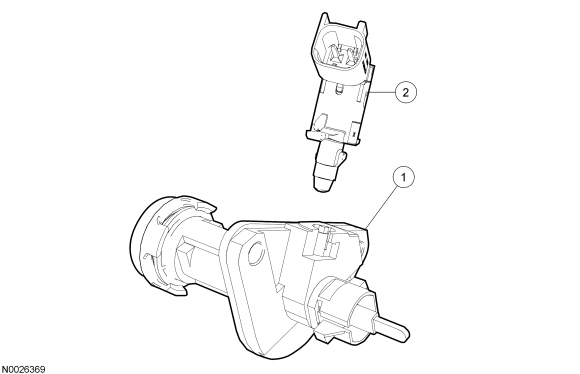

2. Lift the retaining tabs, turn the switch clockwise and remove the luggage compartment anti-theft inhibit switch (also known as the luggage compartment lid disarm switch).

3. To install, reverse the removal procedure.
