Input Shaft - Inner

Input Shaft - Inner

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

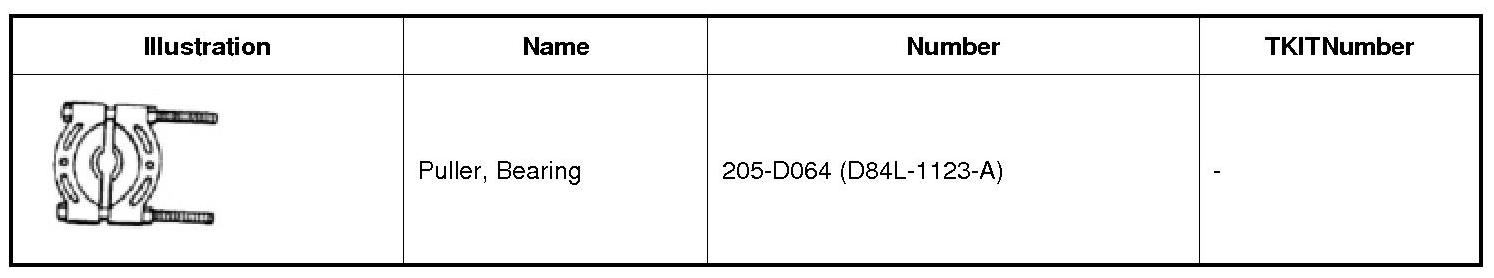

Special Tool(s)

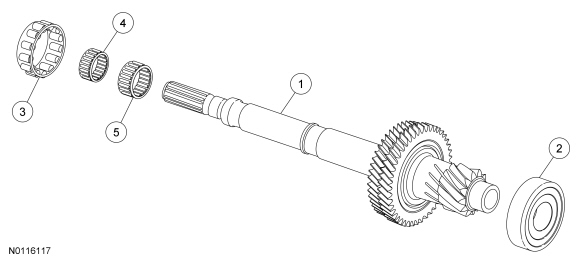

Exploded View










Disassembly

1. Remove the inner input shaft needle bearing.

2. Remove the inner input shaft needle bearing.

3. Remove the inner input shaft roller bearing.

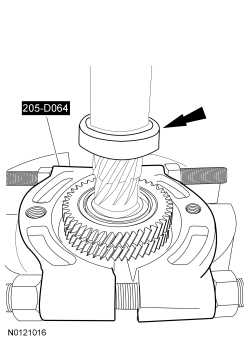

4. Using 205-D064 (D84L-1123-A) and a press, remove the inner input shaft radial bearing.





Assembly

1. Inspect the inner input shaft for wear or damage, replace as needed.

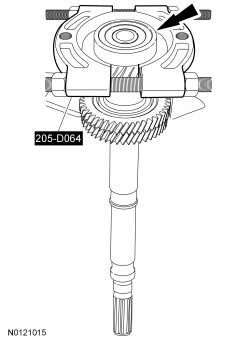

2. Using 205-D064 (D84L-1123-A) and a press, install the inner input shaft radial bearing.





3. Install the inner input shaft roller bearing.

4. Install the inner input shaft needle bearing.

5. Install the inner input shaft needle bearing.
