Battery and Battery Tray - Exploded View

Battery and Battery Tray - Exploded View

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

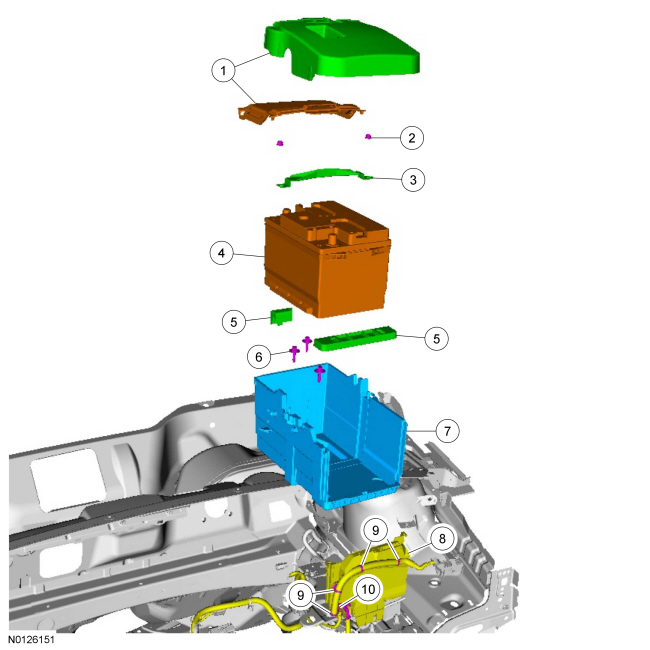

Exploded View










Removal

1. Disconnect the battery. REFER to Battery Disconnect .

2. Remove the battery from the battery tray.

3. Remove the 3 bolts and the battery tray.

Installation

1. Position the battery tray and install the 3 bolts.
- Tighten to 10 Nm (89 lb-in).

2. Position the battery on the battery tray.

3. Connect the battery. REFER to Battery Disconnect .
