Seat - Exploded View, Front

Seat - Exploded View, Front

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Exploded View

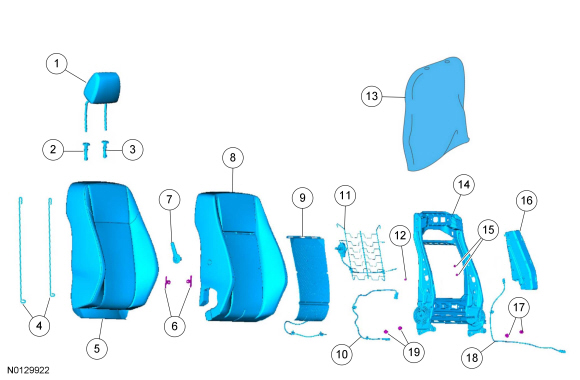

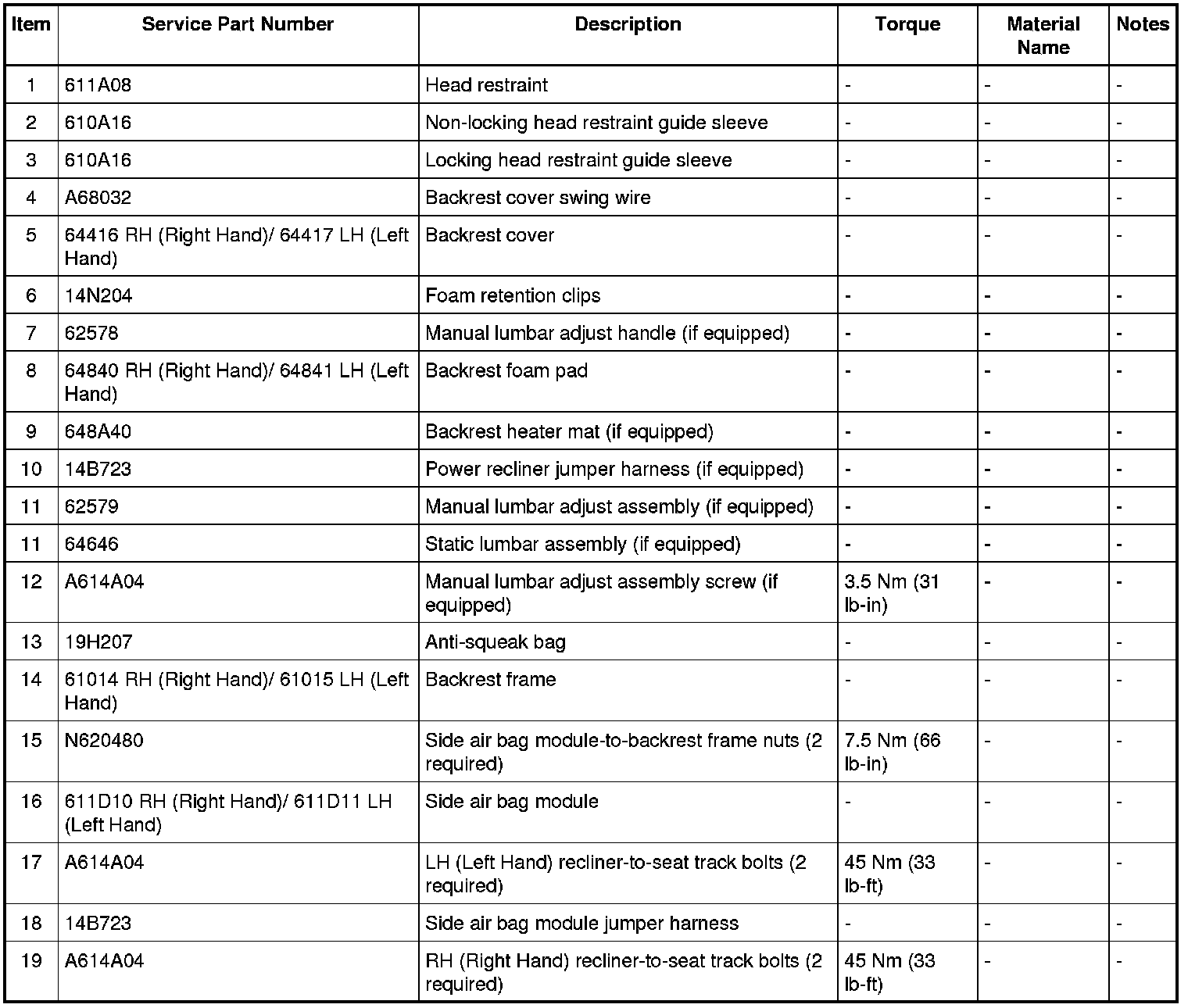

Seat Backrest

NOTE: LH (Left Hand) seat backrest, with adjustable lumbar, shown, RH (Right Hand) seat similar.

NOTE: Cloth seat backrest shown, leather seat backrest similar.

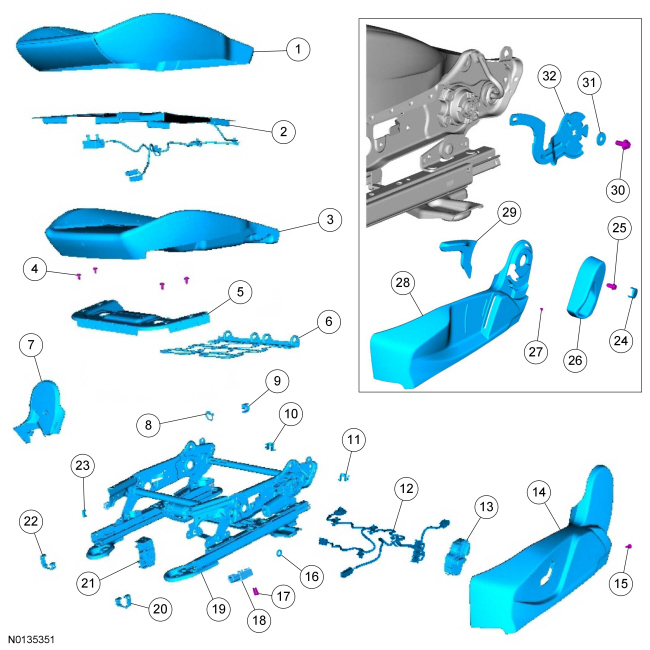

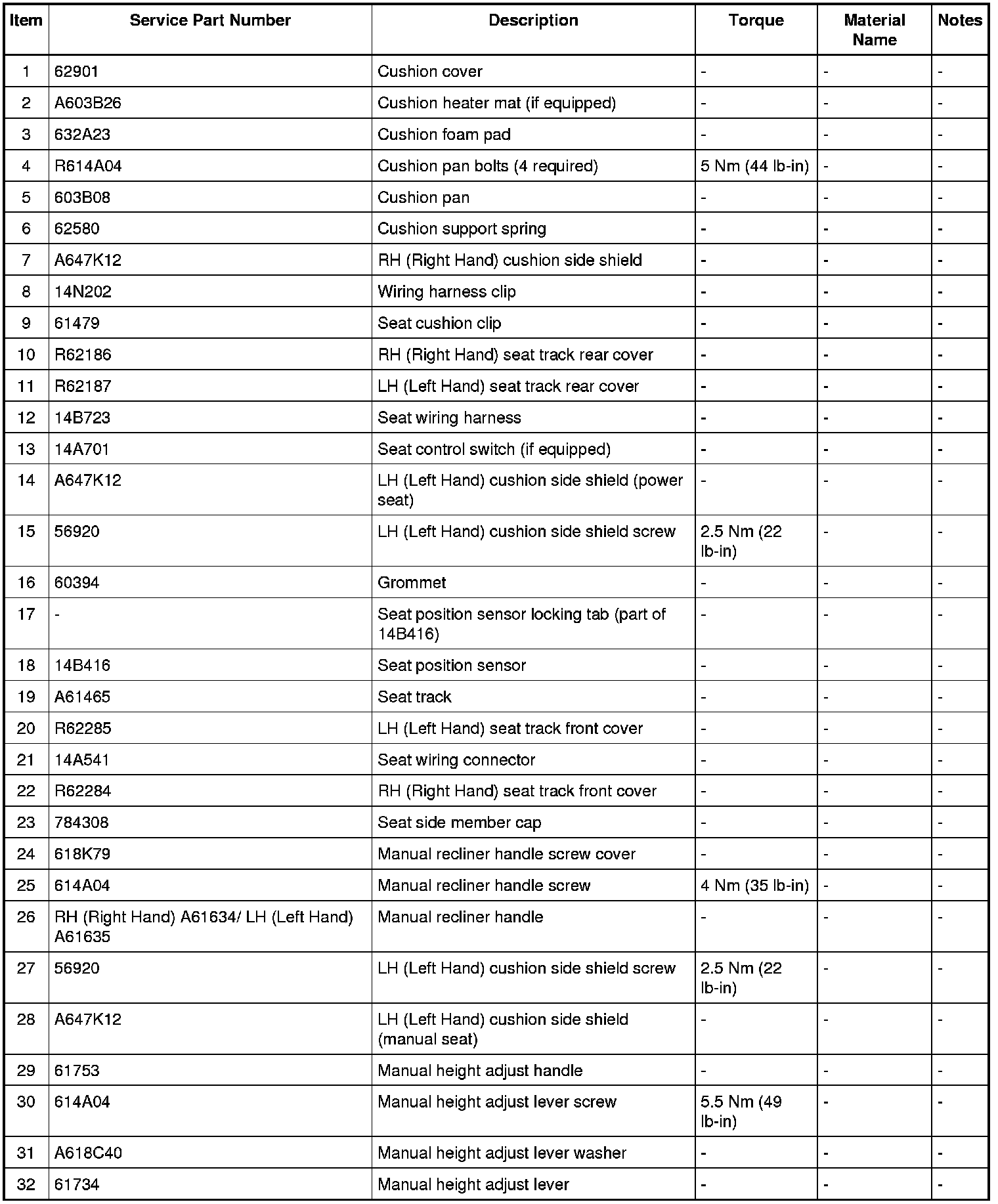

Seat Cushion - Driver

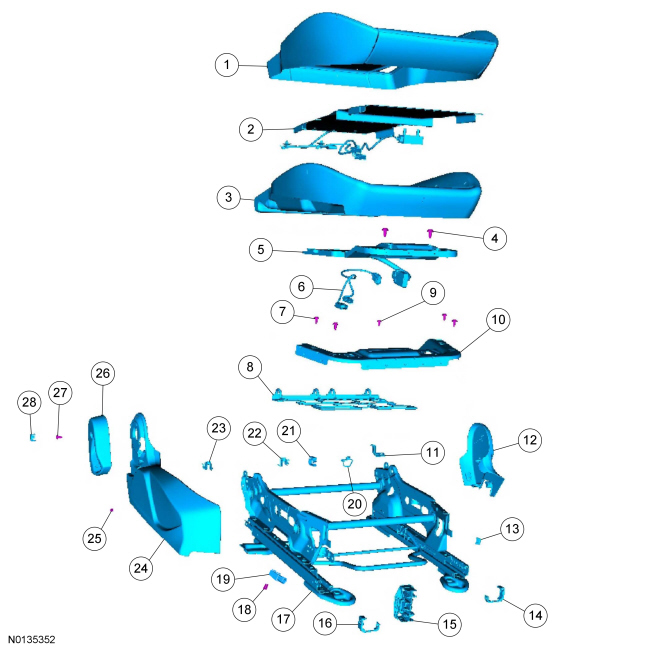

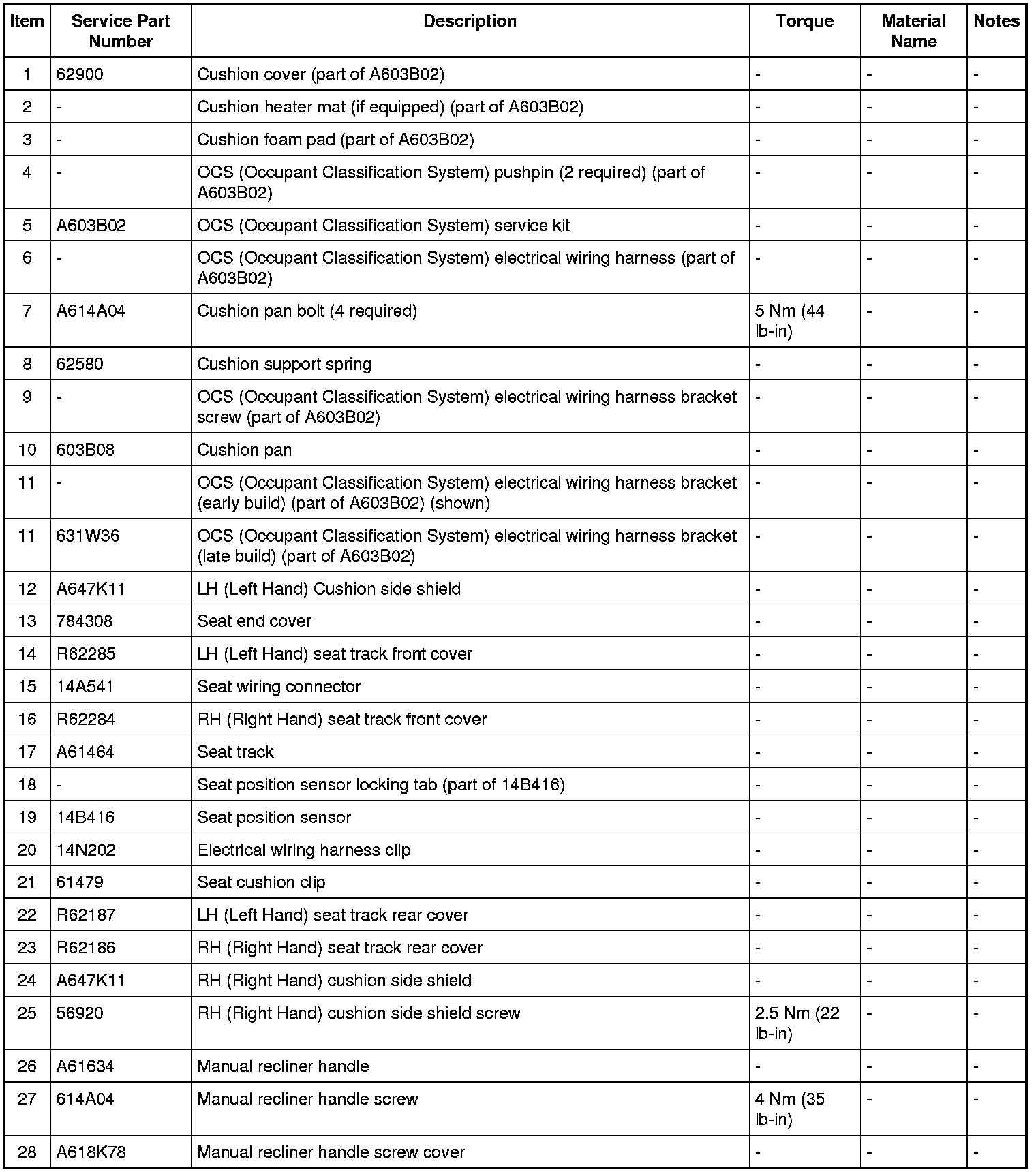

Seat Cushion - Passenger
