DTC Chart: Body Control Module (BCM)




DTC Chart: Body Control Module (BCM)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information about these practices.

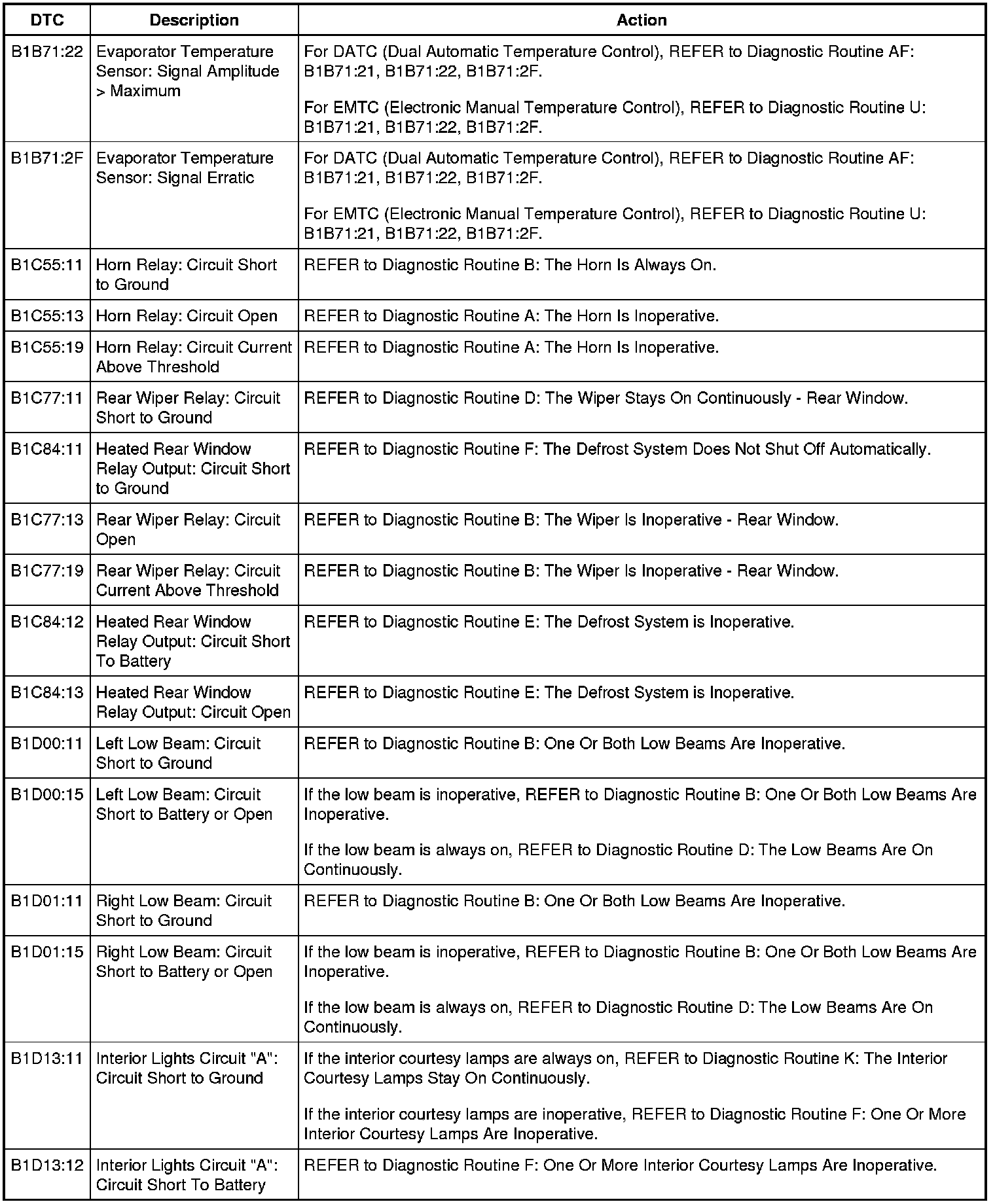

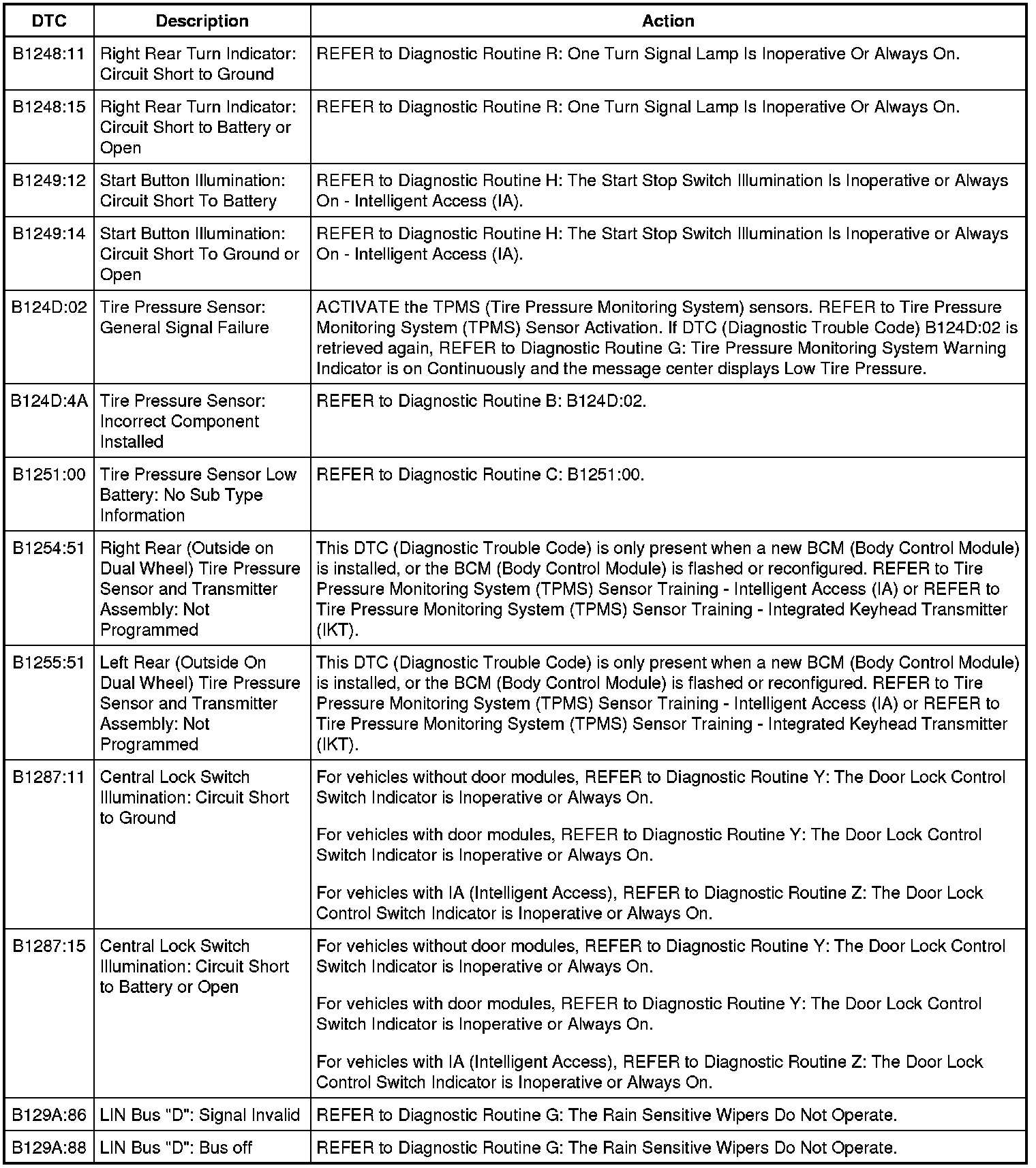

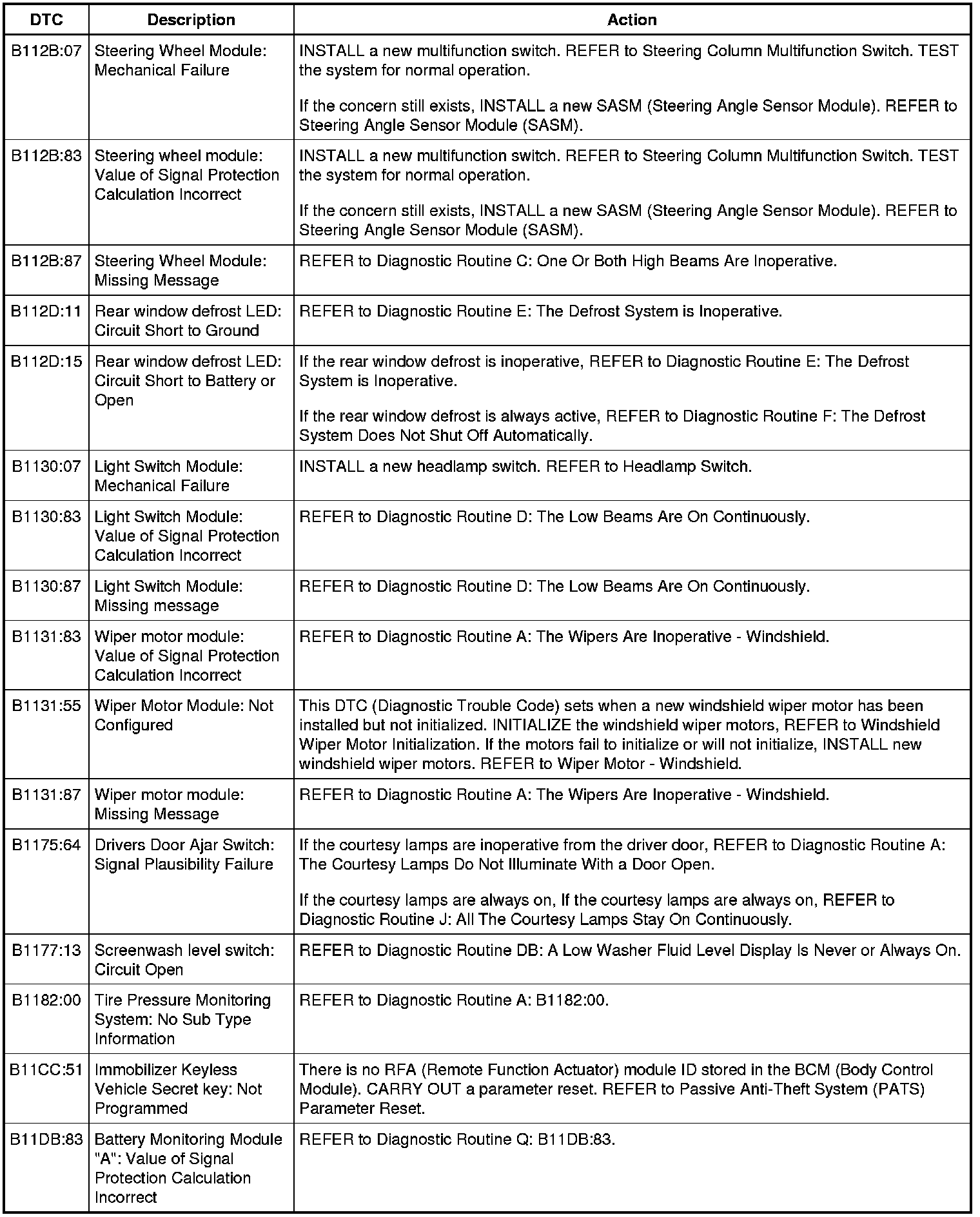

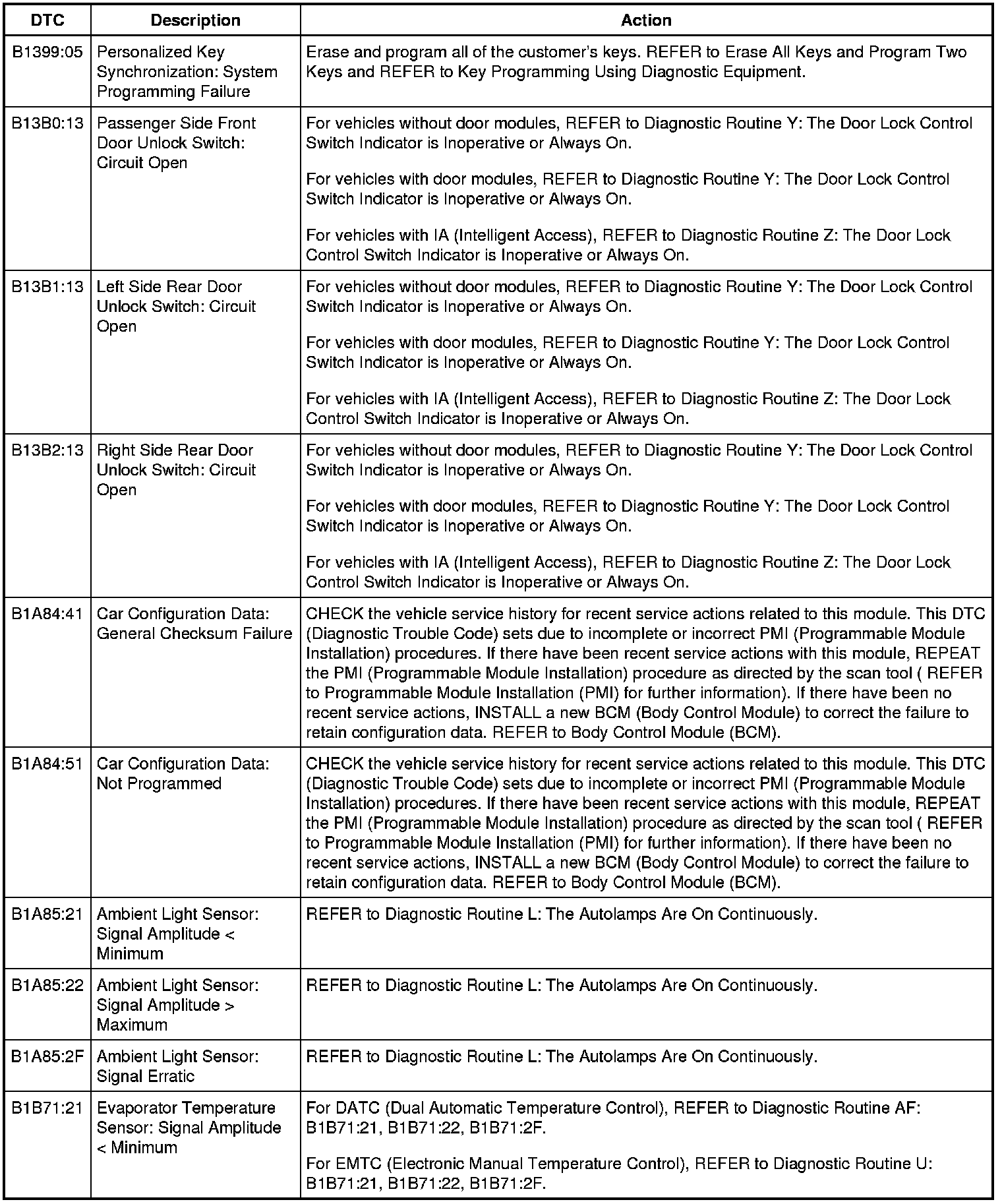

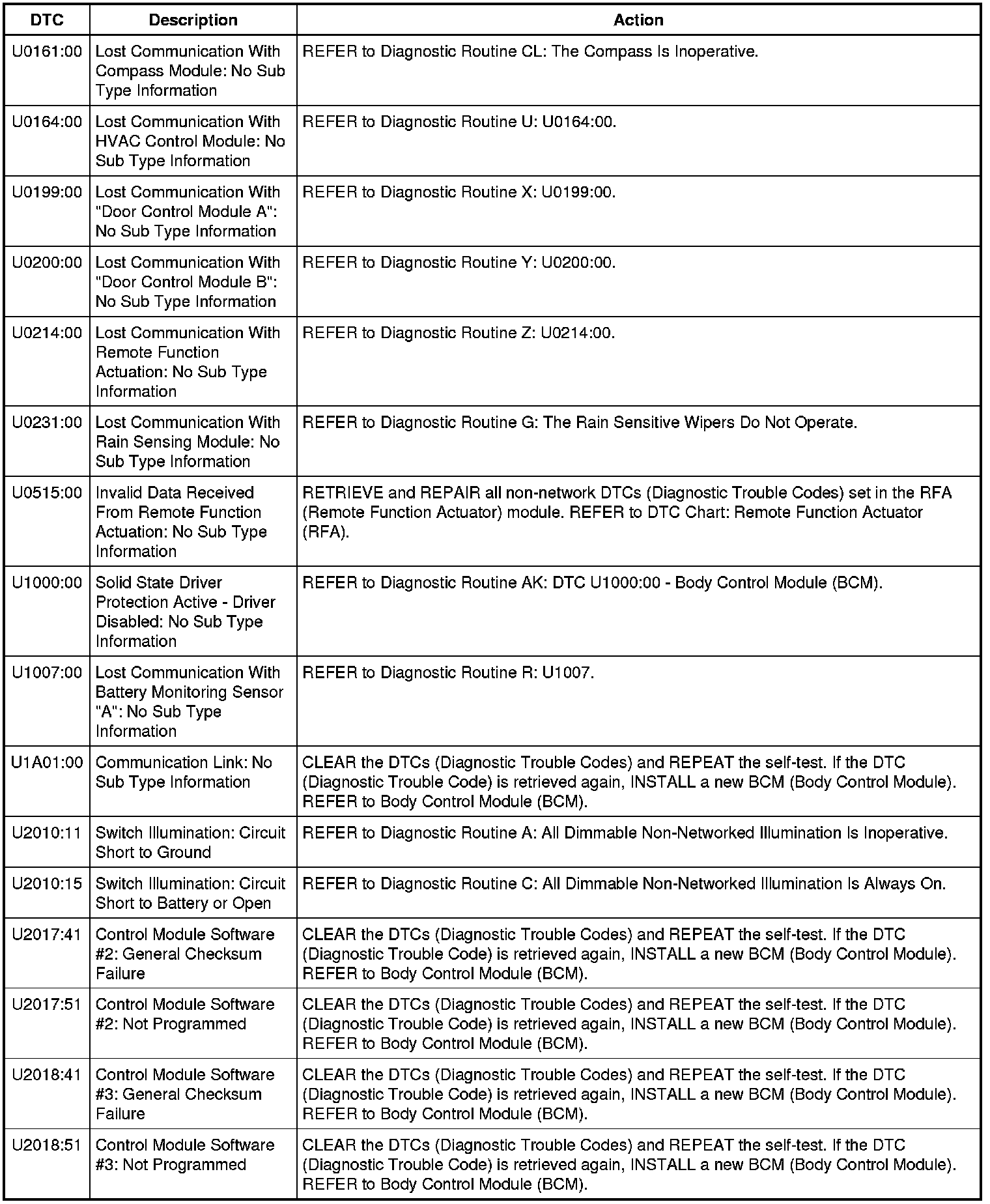

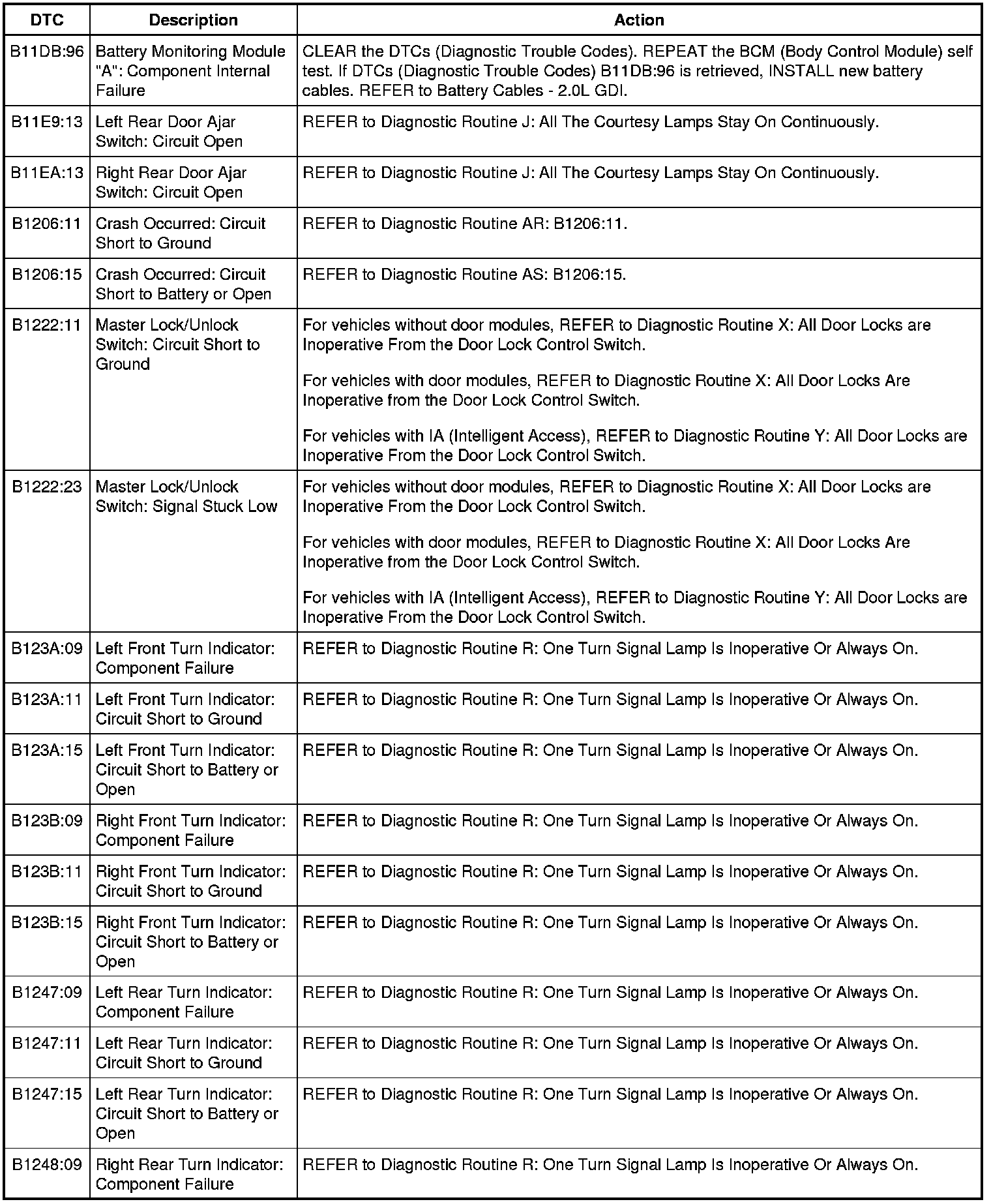

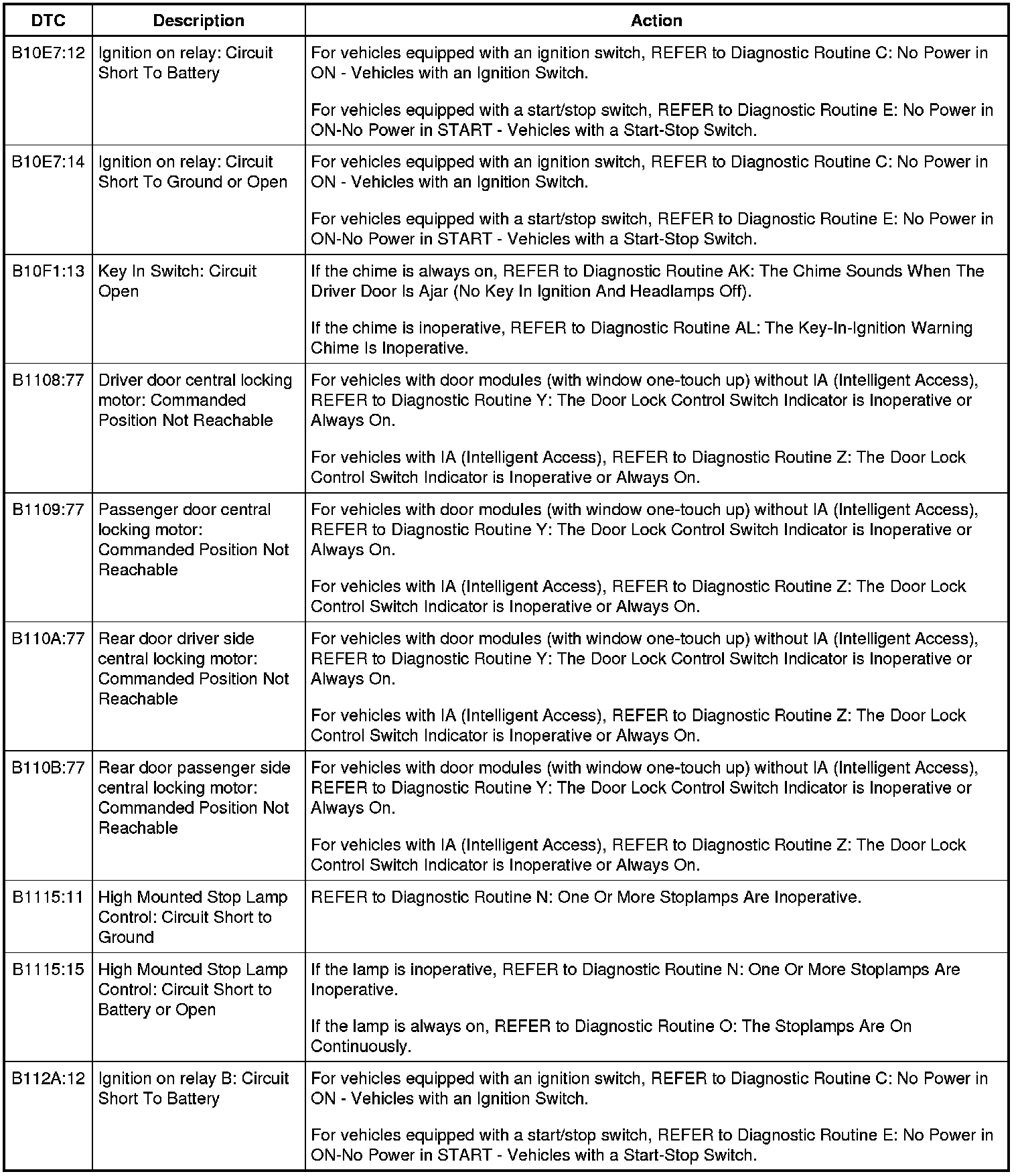

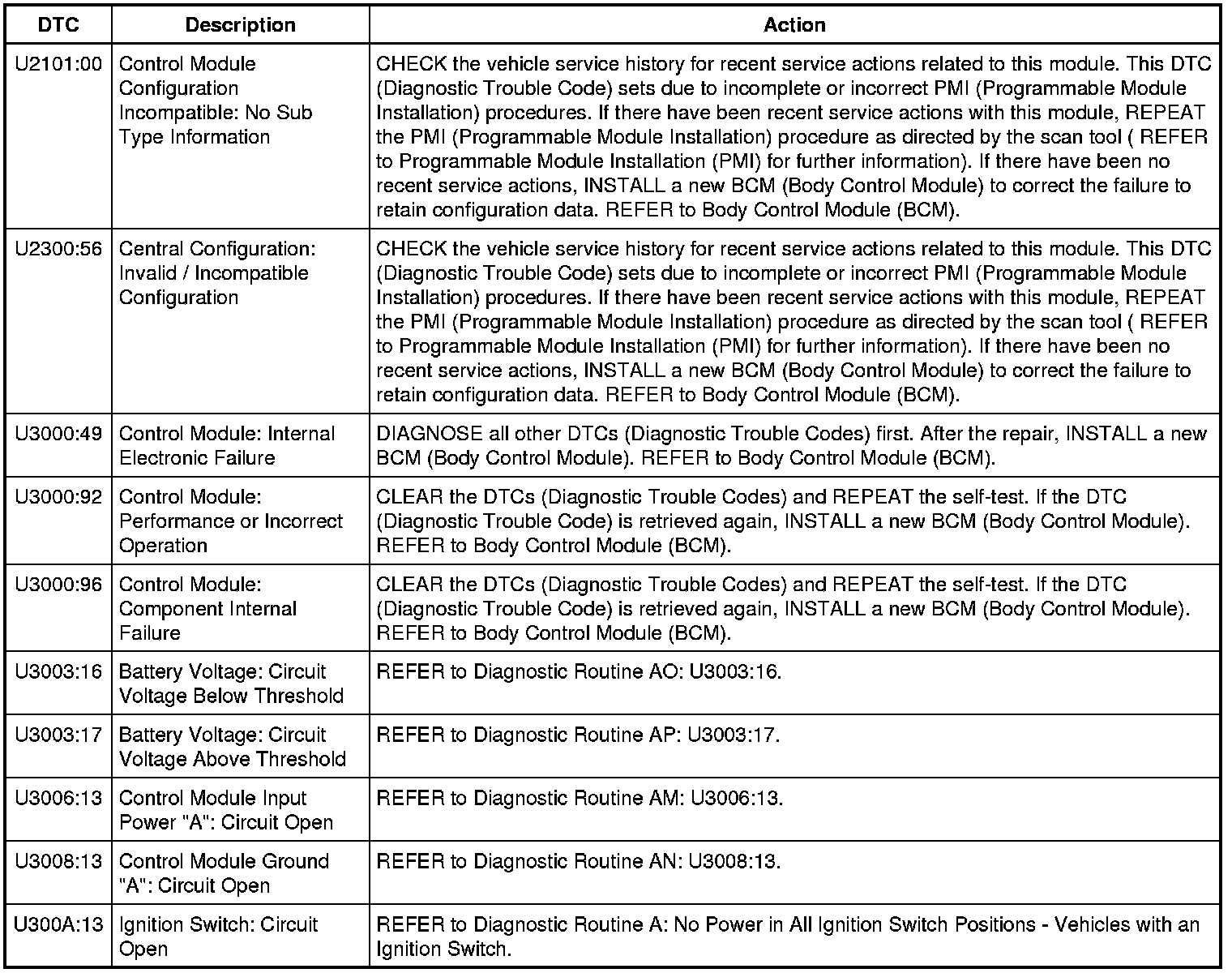

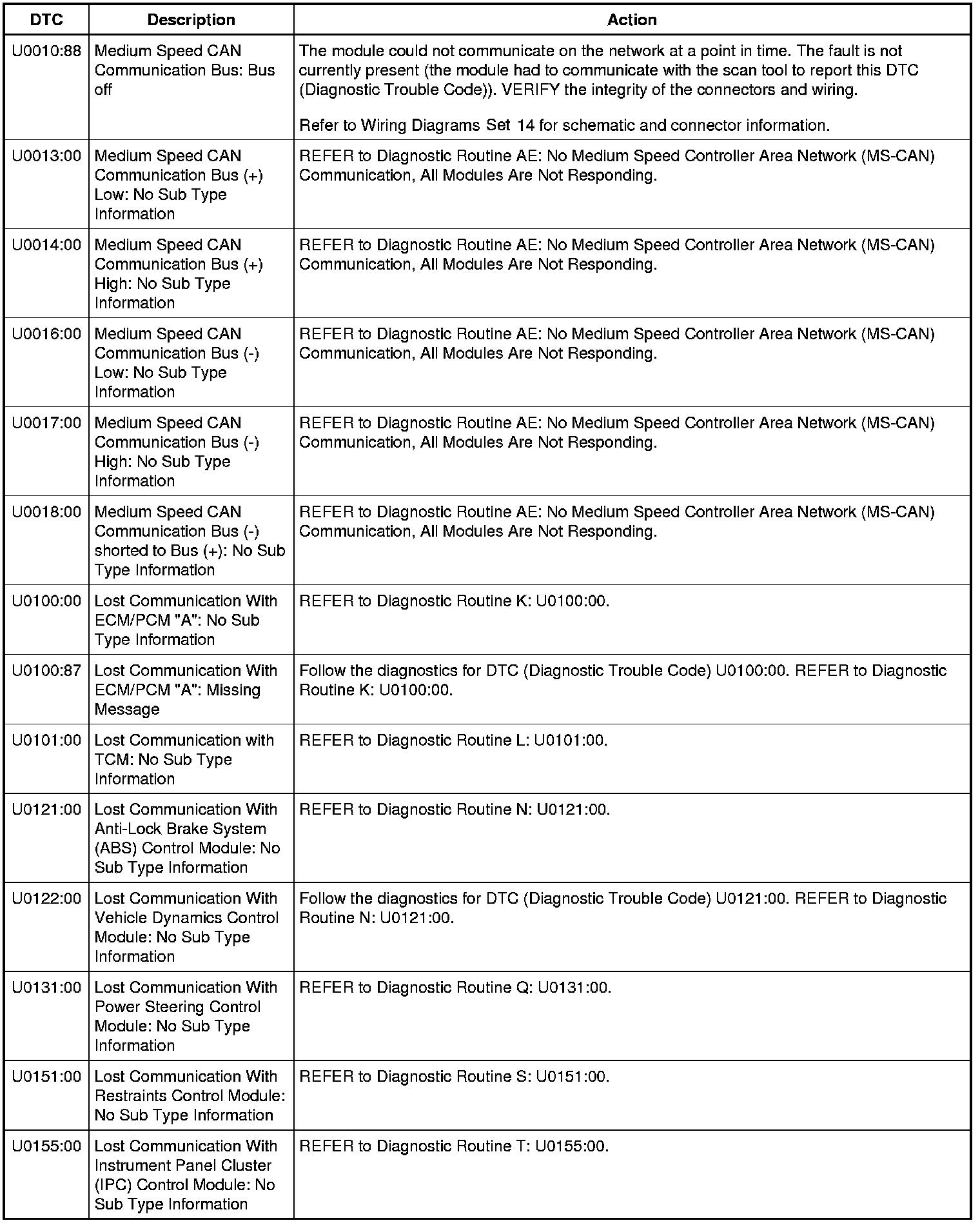

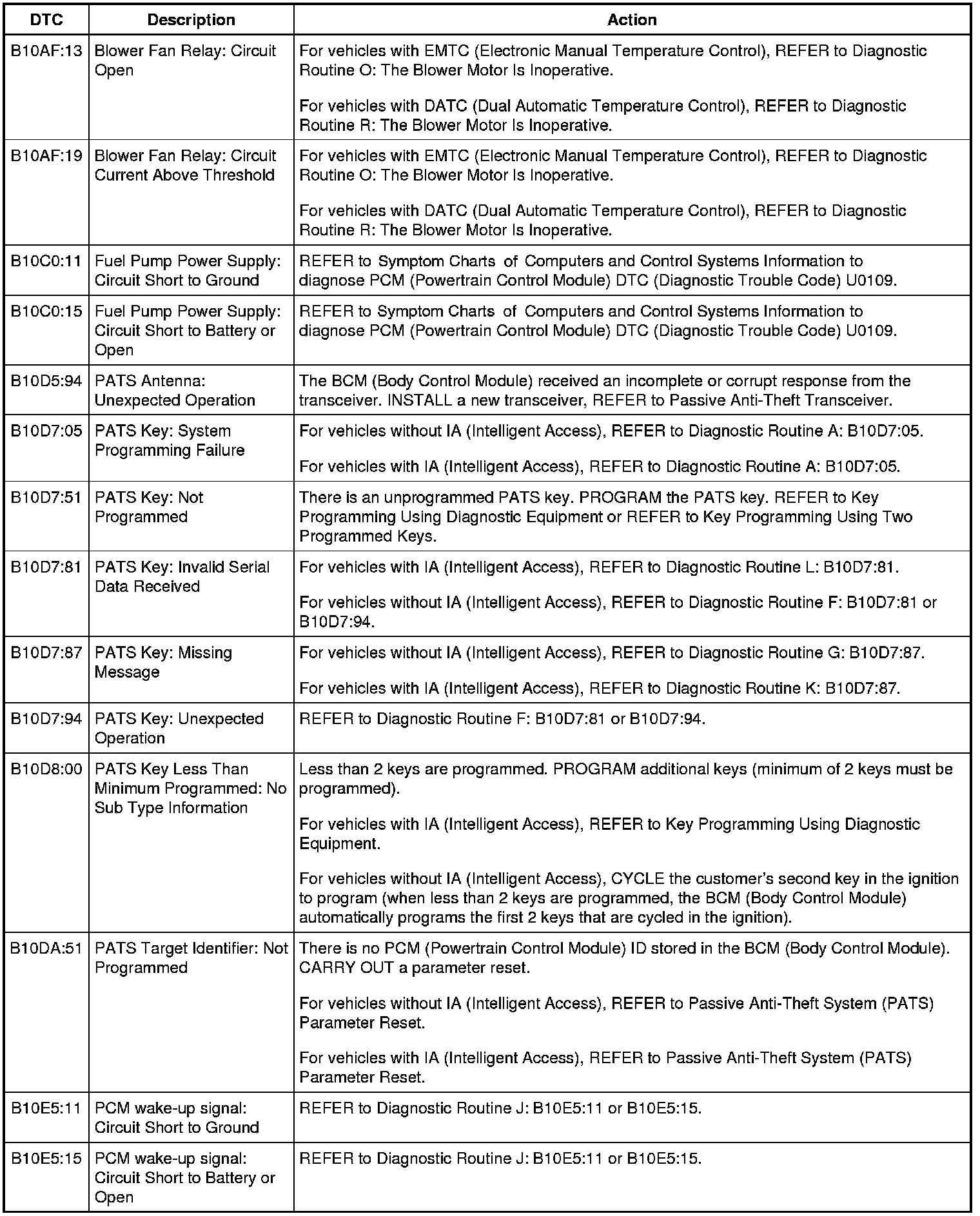

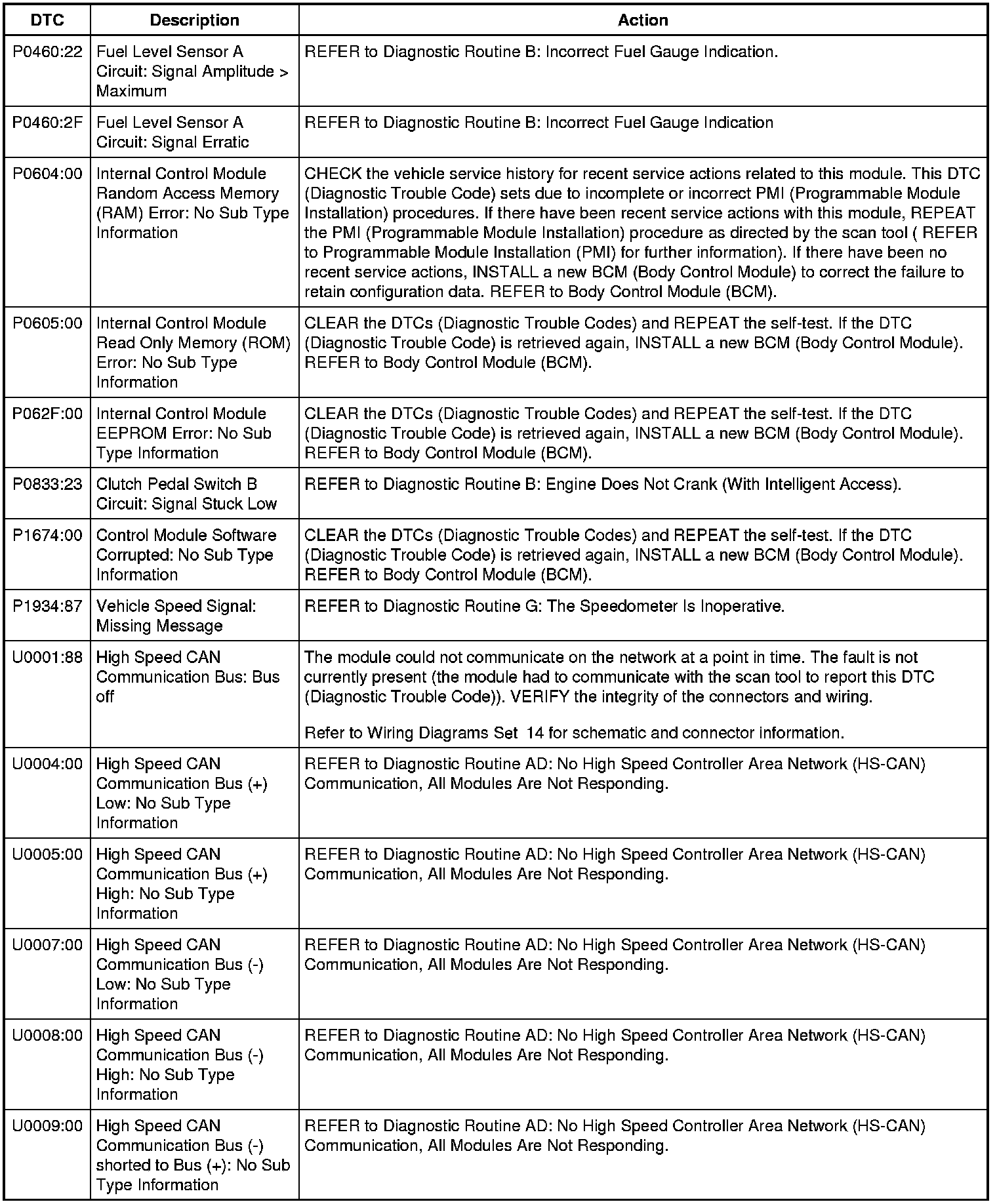

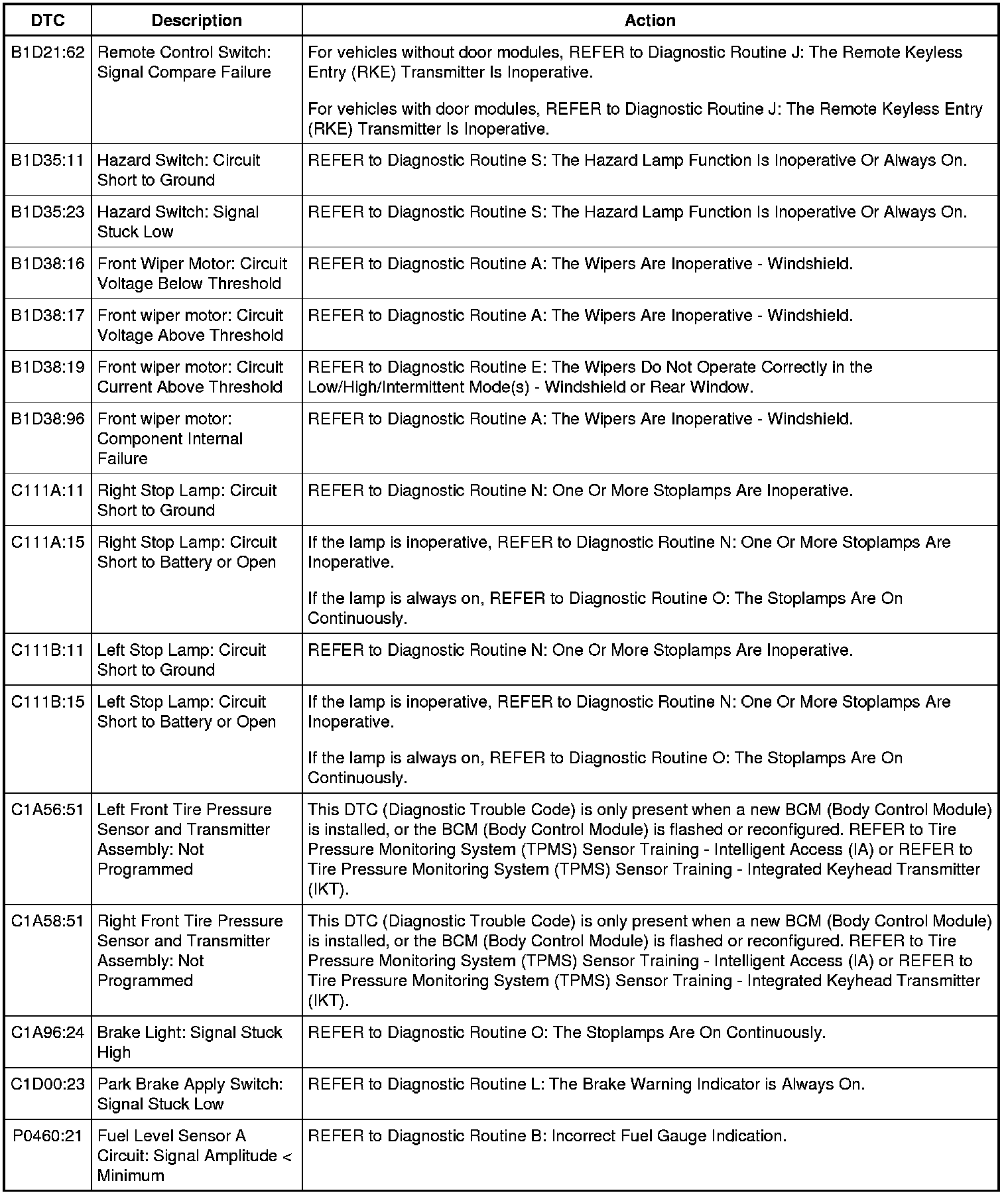

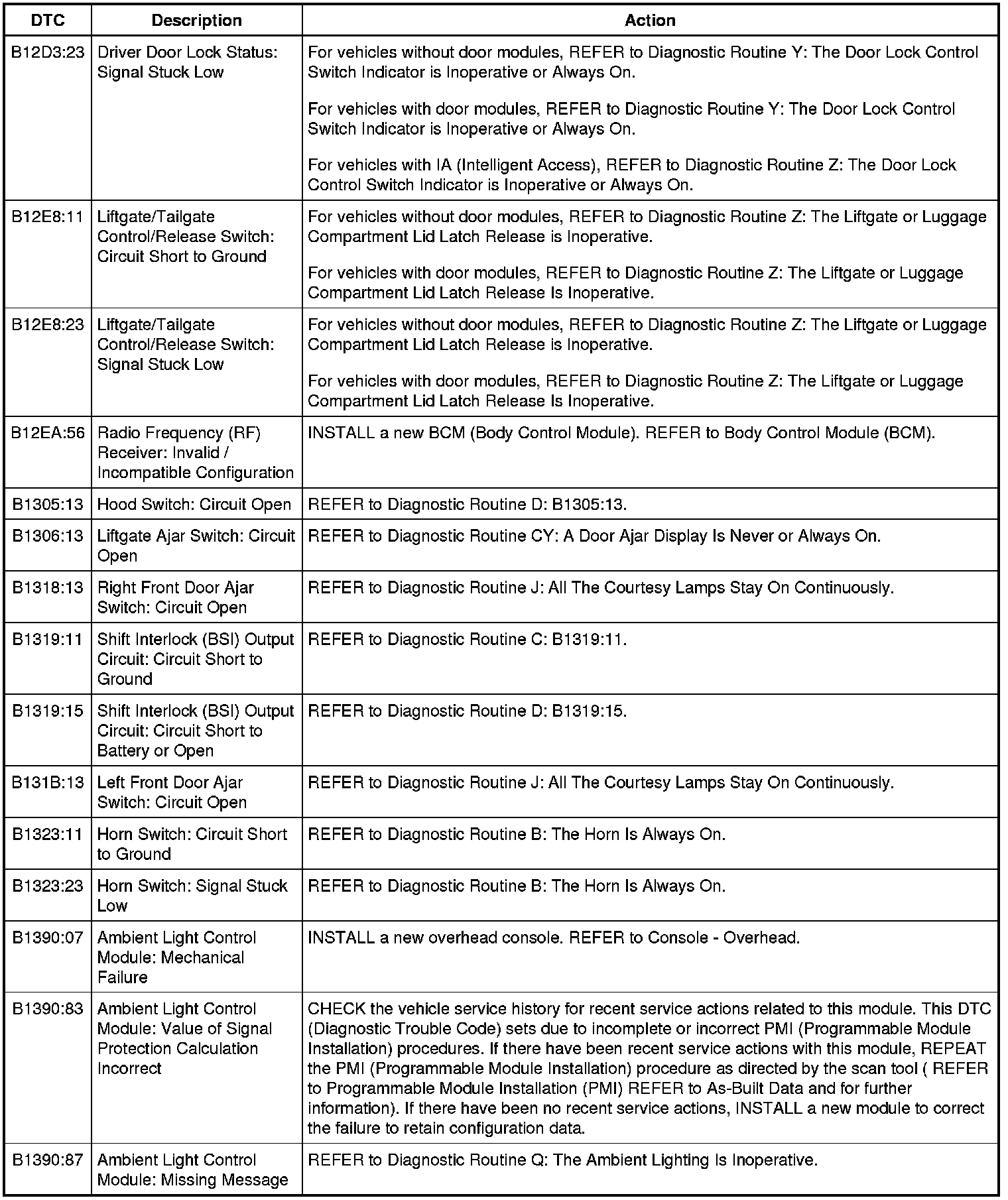

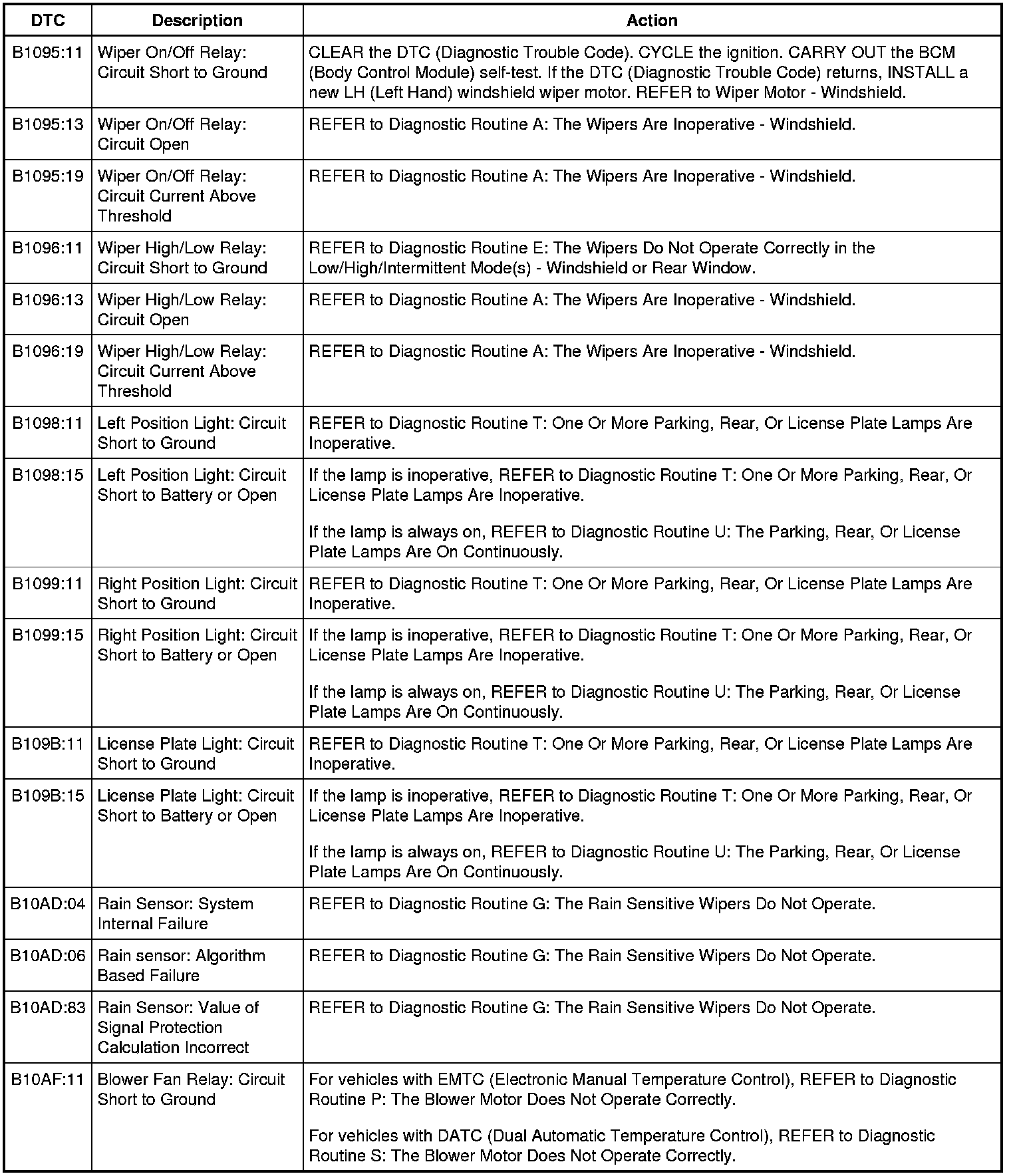

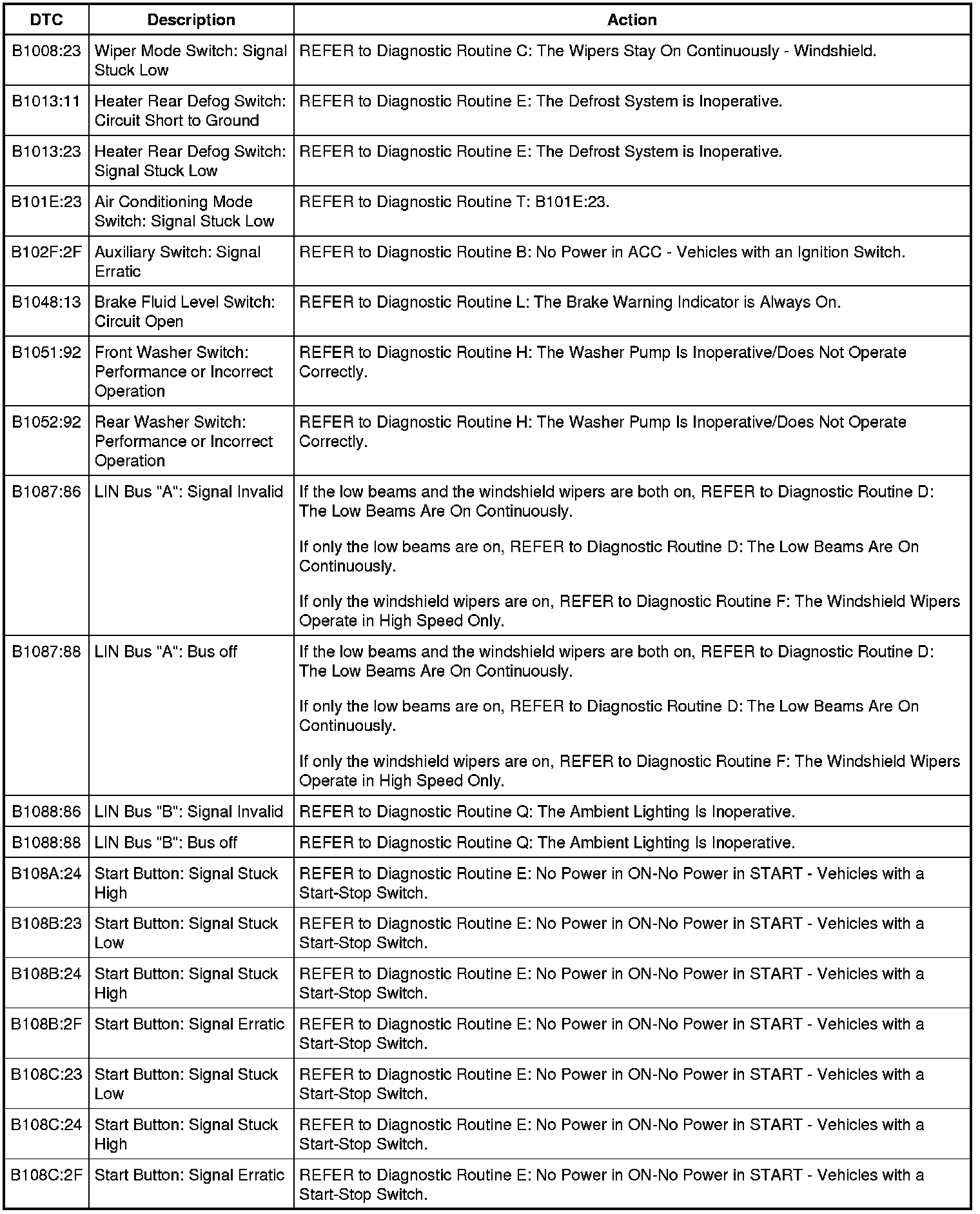

BCM (Body Control Module) DTC Chart
