Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> Drive Motor Cooling >> System Diagram >> C4802 Liquid Coolant PTC Element
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

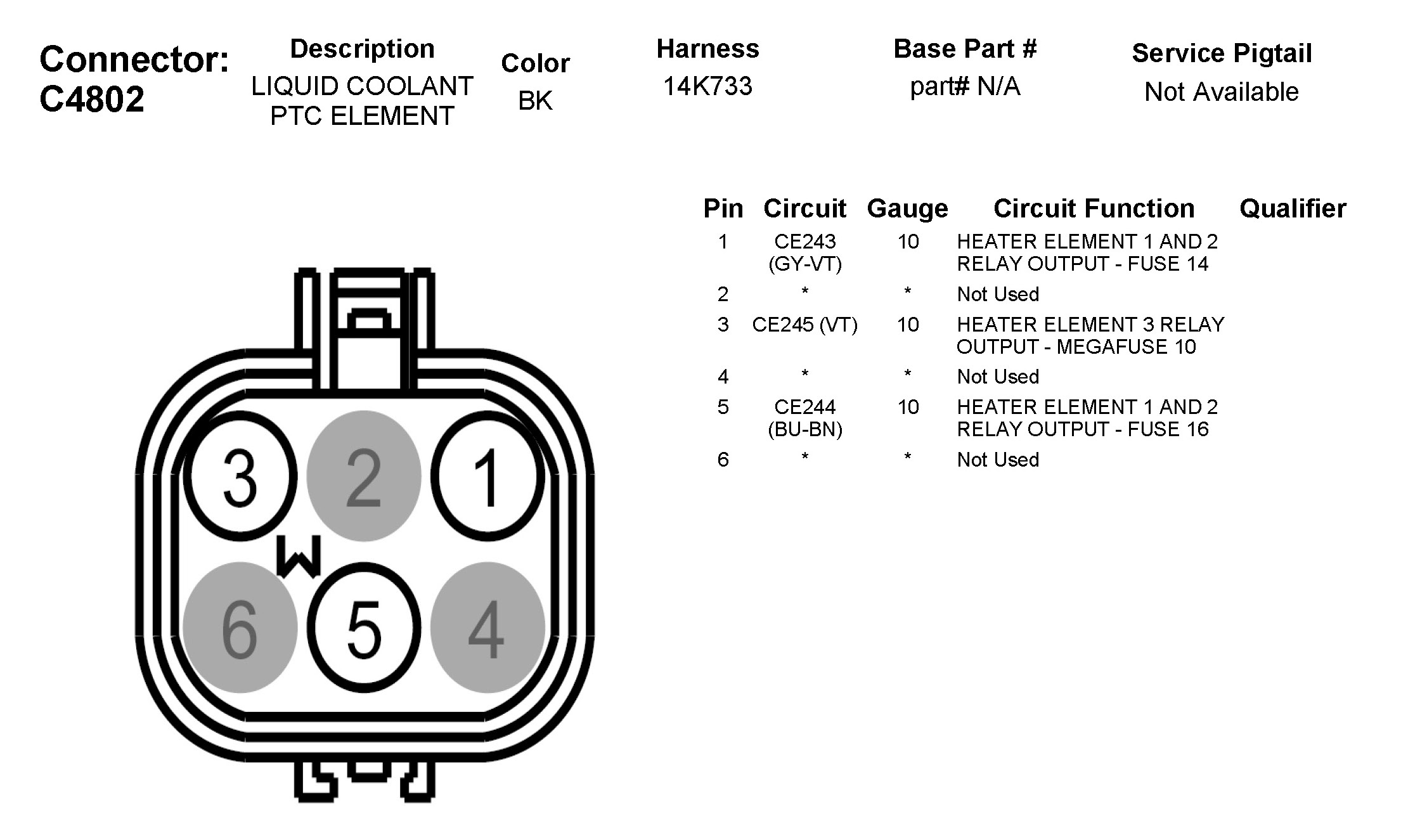

C4802 Liquid Coolant PTC Element
