Automatic Climate Control System: Notes

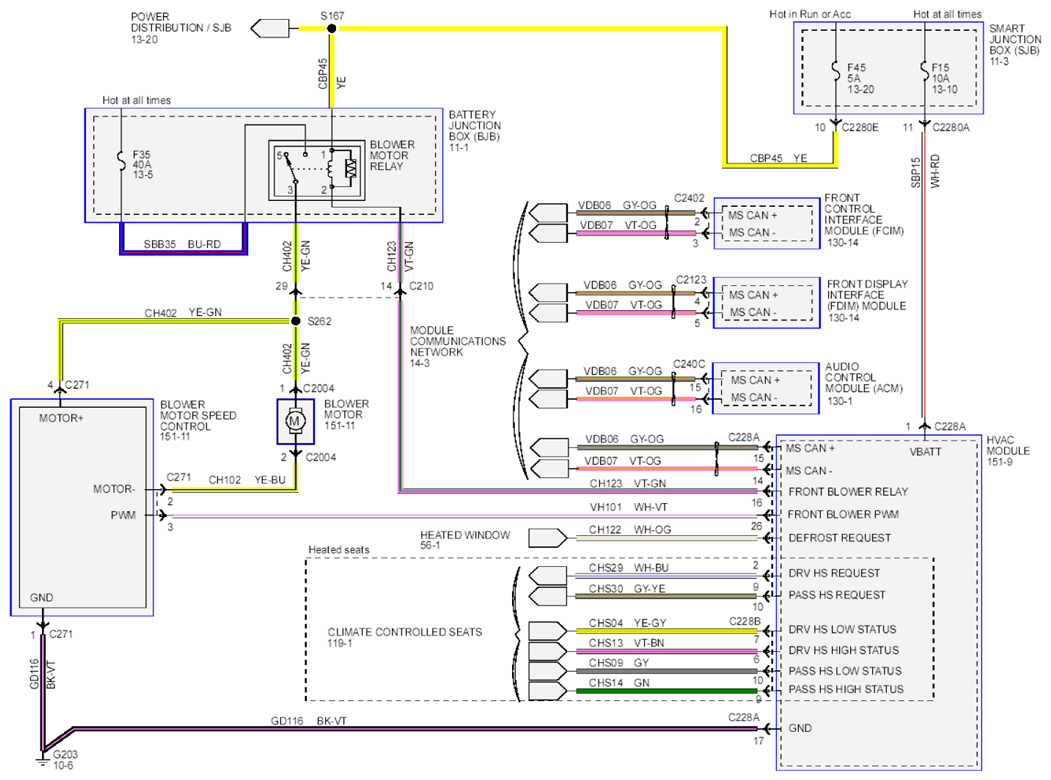

Fig 1: Automatic Climate Control System Circuit Diagram (View 1 Of 5)
G07905622Courtesy of FORD MOTOR CO.

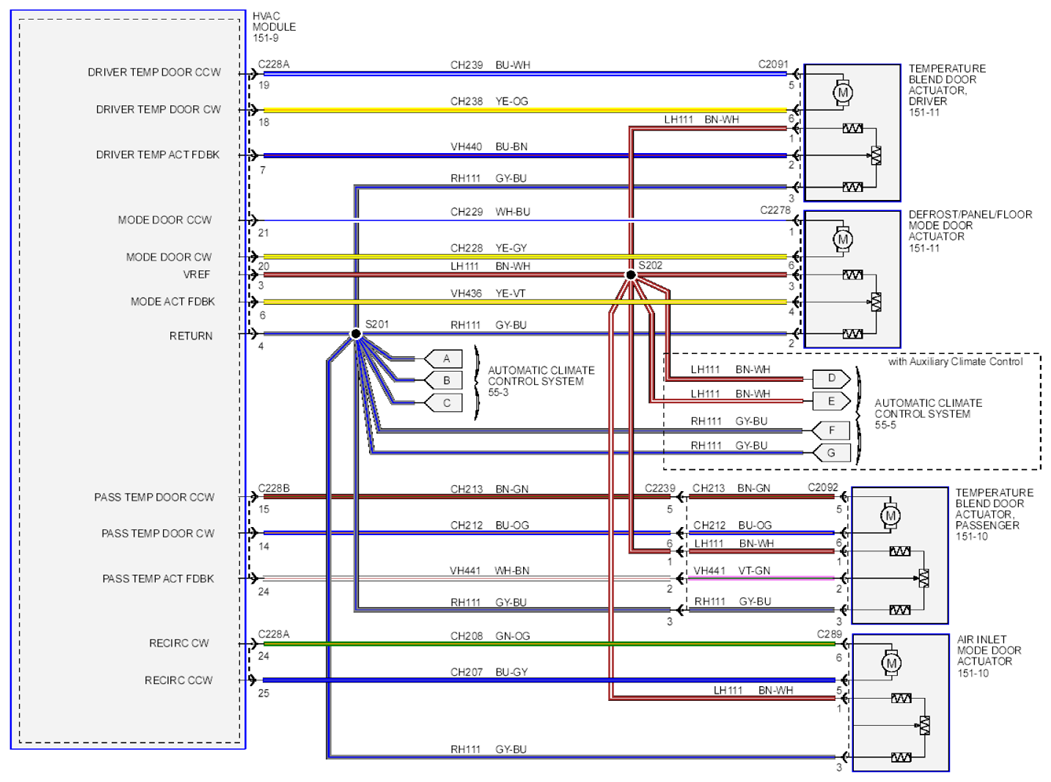

Fig 2: Automatic Climate Control System Circuit Diagram (View 2 Of 5)
G07905623Courtesy of FORD MOTOR CO.

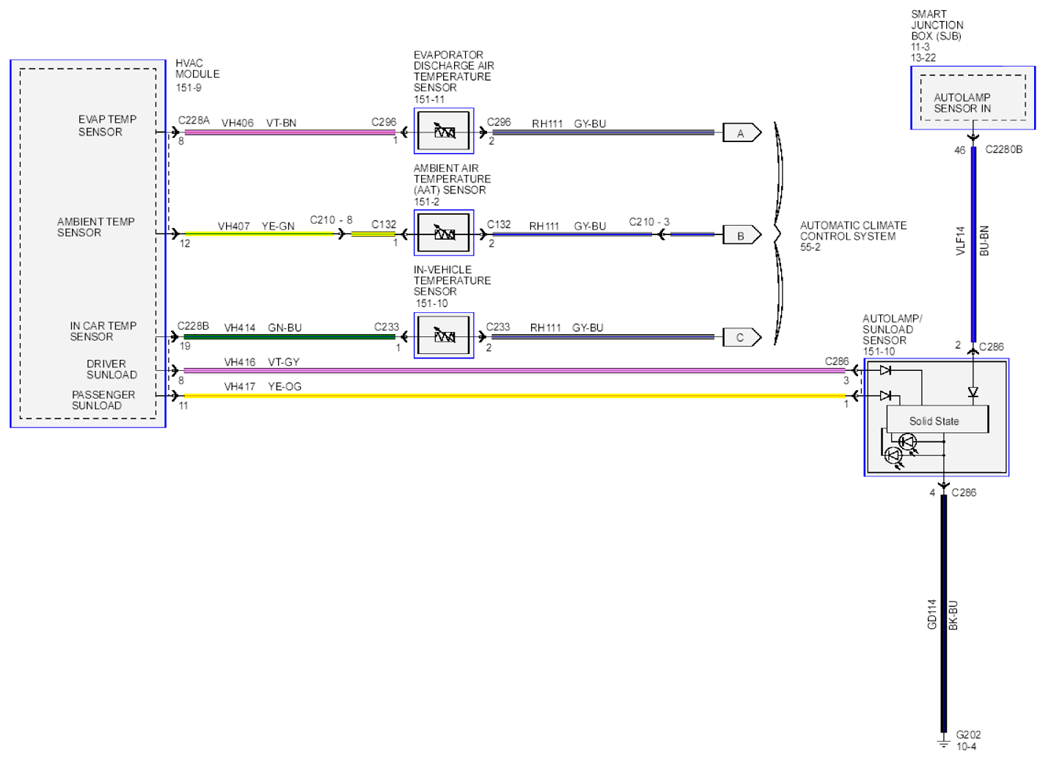

Fig 3: Automatic Climate Control System Circuit Diagram (View 3 Of 5)
G07905624Courtesy of FORD MOTOR CO.

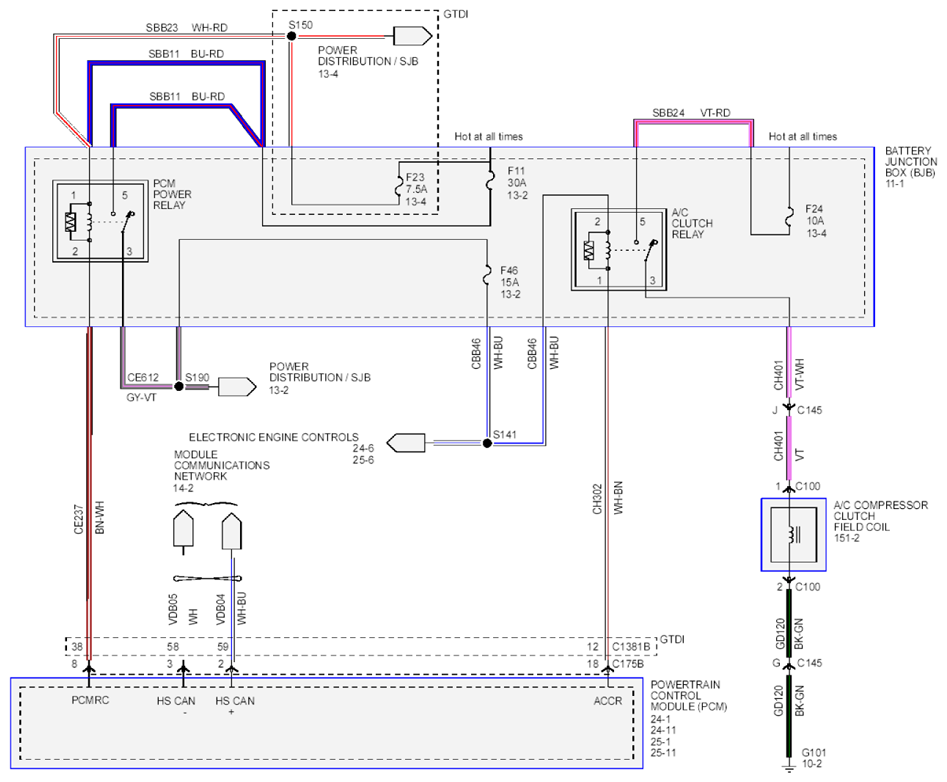

Fig 4: Automatic Climate Control System Circuit Diagram (View 4 Of 5)
G07905625Courtesy of FORD MOTOR CO.
