Mode 6 - 2012 Ford
>>
Front Ho2S Monitor
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Front Ho2S Monitor

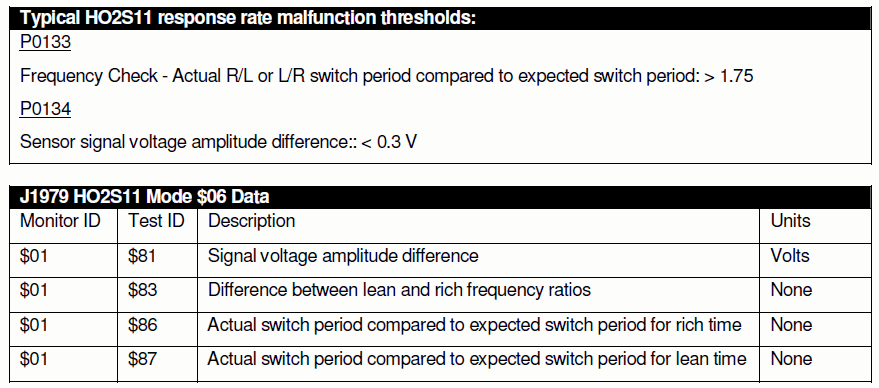

Fig 1: Mode $06 Data For Front HO2S Responce Rate Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
