EVAP Monitor

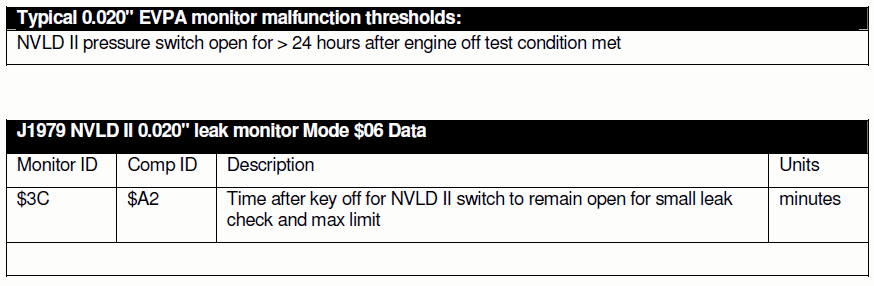

Fig 1: Mode $06 Data For EVAP Monitor (NVLD 0.020" Leak)
Courtesy of FORD MOTOR CO.

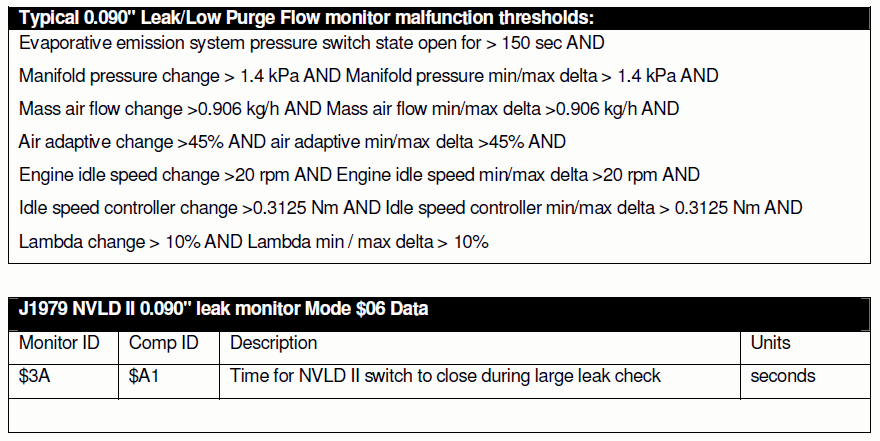

Fig 2: Mode $06 Data For EVAP Monitor (NVLD 0.090" Leak)
Courtesy of FORD MOTOR CO.

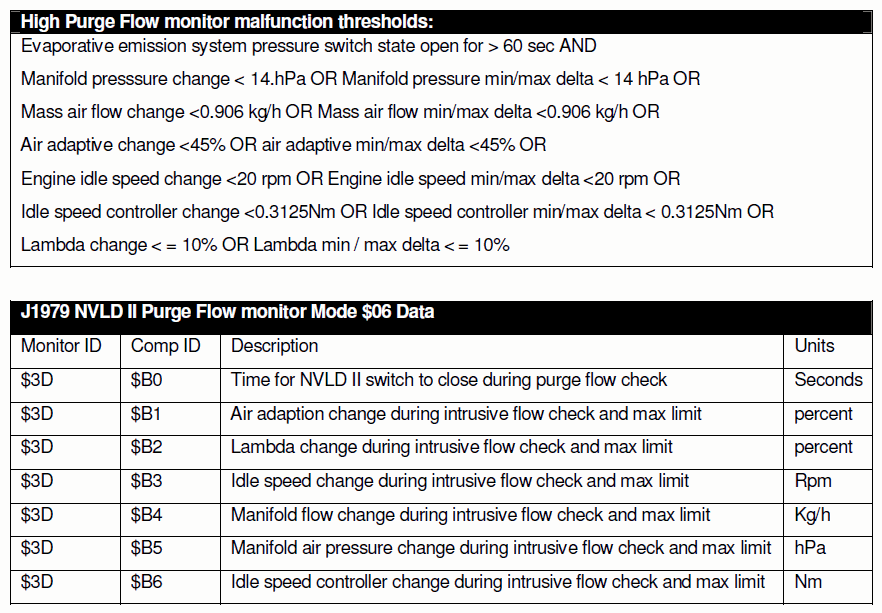

Fig 3: Mode $06 Data For EVAP Monitor Purge Flow
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
