Clutch Master Cylinder: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

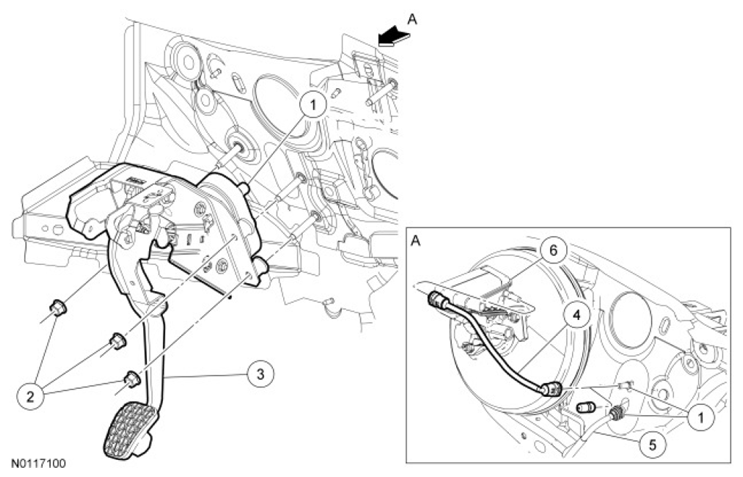

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Clutch master cylinder (part of 7519) |
| 2 | W706840 | Clutch pedal nut (3 required) |
| 3 | 7519 | Clutch pedal assembly |
| 4 | 7K502 | Brake master cylinder to clutch master cylinder tube |
| 5 | 7K592 | Clutch master cylinder to slave cylinder tube |
| 6 | 2140 | Brake master cylinder assembly |
